Mercury 45 User Manual

MAINTENANCE
64
N
ob00351
NN
3107

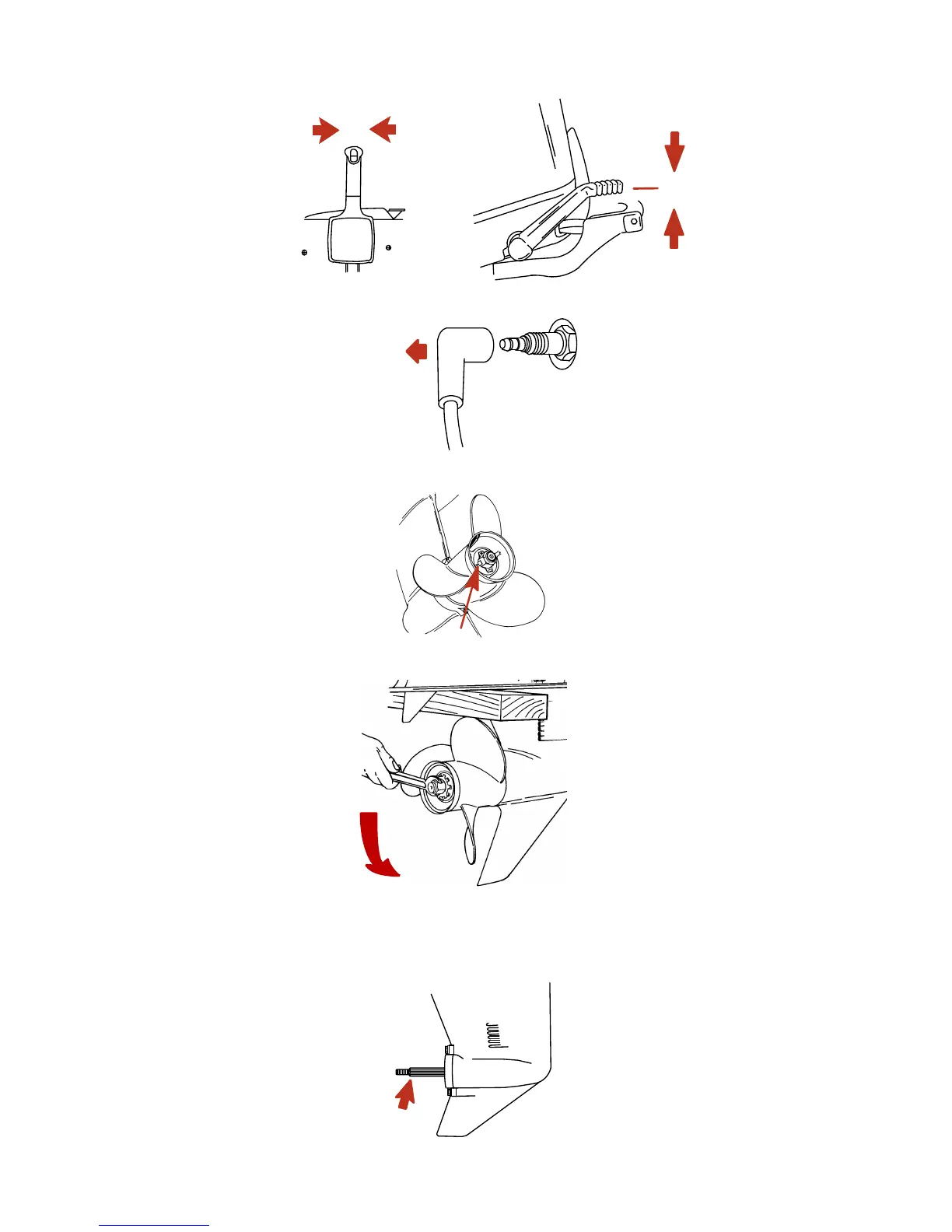

2. Remove the spark plug leads to prevent engine from starting.
ob00375
3. Straighten the bent tabs on the propeller nut retainer.
ob00376
4. Place a block of wood between gearcase and propeller to hold propeller and remove propeller nut.
ob00377
5. Pull propeller straight off shaft. If propeller is seized to the shaft and cannot be removed, have the propeller
removed by an authorized dealer.
6. Coat the propeller shaft with Quicksilver or Mercury Precision Lubricants Anti-Corrosion Grease or 2-4-C with
Teflon.
ob00378

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
