Mercury 50 User Manual

GENERAL INFORMATION
28

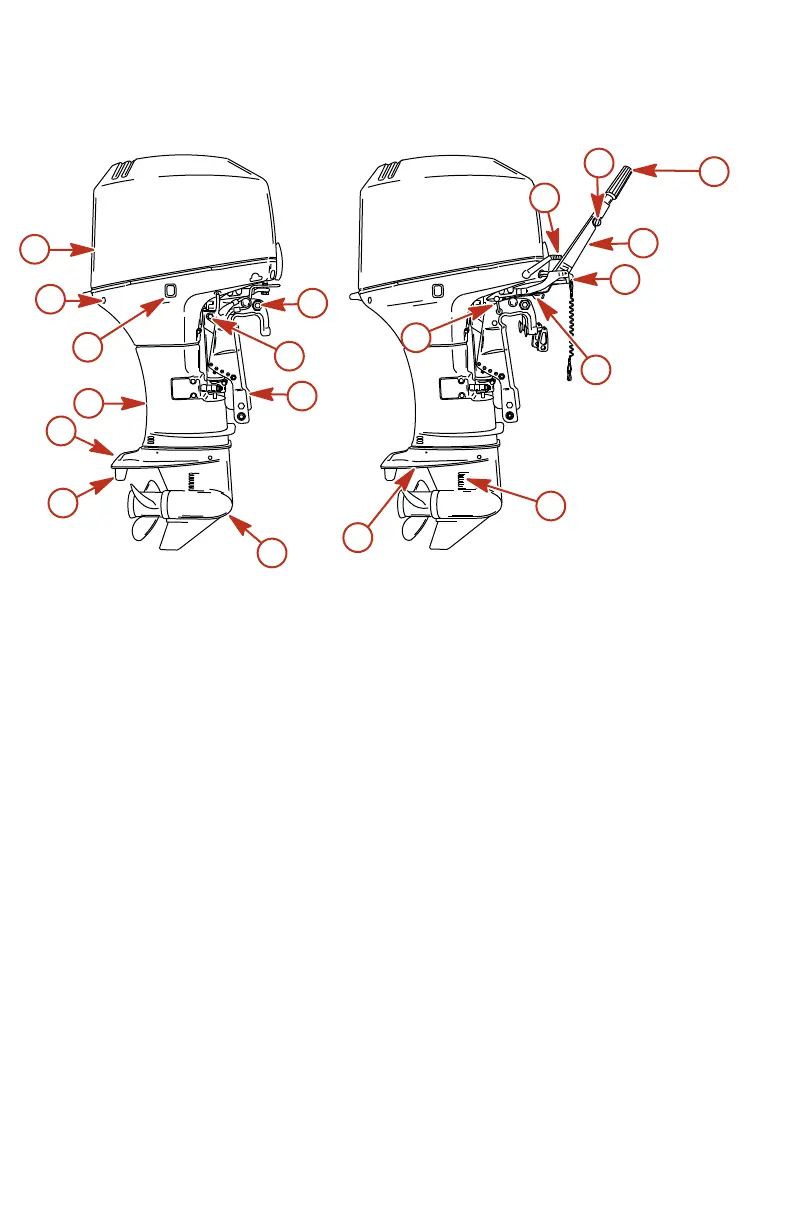

Component Identification
3099
a
b
d
e
f
g
h
i
j
k
l
m
n
p
c
o
r
q
s
a - Top cowl
b - Water pump indicator
hole
c - Auxiliary tilt switch
d - Driveshaft housing
e - Anti‑ventilation plate
f - Trim tab
g - Gearcase
h - Transom bracket
i - Steering friction
adjustment (non tiller
handle models)
j - Tilt lock pin
k - Secondary cooling water
intake
l - Tilt lock lever (non power
trim)
m -Shift handle
n - Throttle friction
adjustment knob
o - Engine stop switch
p - Tiller handle
q - Lanyard stop switch
r - Steering friction
adjustment lever
s - Primary cooling water
intake

Mercury 50 Specifications

General

Horsepower	50 hp
Cylinders	3
Steering	Remote
Starting	Electric
Displacement	995 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	18 amp
Shaft Length	20" / 508 mm
Dry Weight	112 kg
Engine Type	4-Stroke
