INSTALLATION
30
MODELS WITH TRANSOM BRACKET CLAMP SCREWS
The outboard must be secured to the transom one of two ways:
EITHER with clamp screws and the two mounting bolts and
locknuts provided, OR with clamp screws and optional Quicksilver
or Mercury Precision Parts Outboard Mounting Kit. Tighten
retainer screws into the lower mounting holes when using outboard
mounting kit.

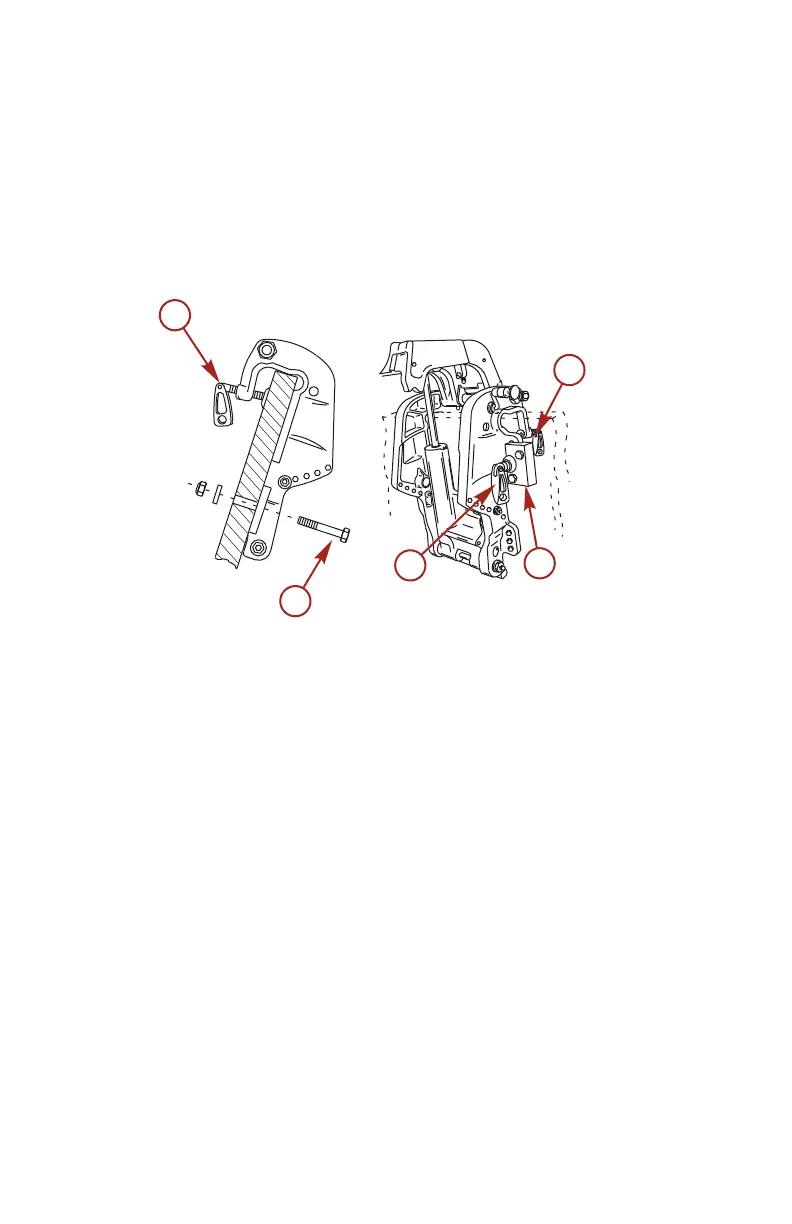

a - Clamp screws
b - Mounting bolt and
locknut (2)
c - Outboard Mounting Kit
(part number 812432A5)
d - Retainer screws
