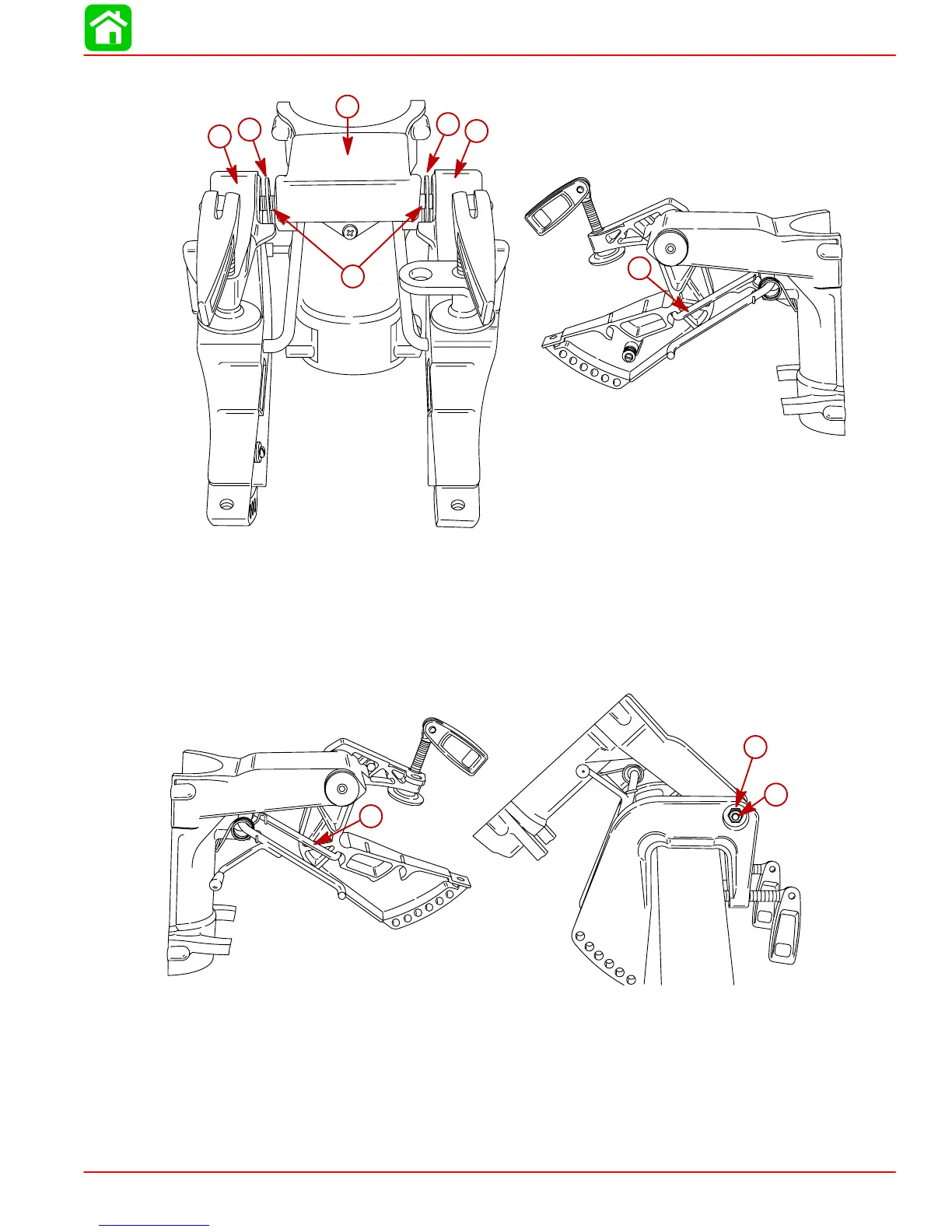

5. Secure clamp brackets to swivel bracket.
f
a
b
c
d
d
e
56373
56374
a - Swivel Bracket
b - Bolt; Installed from Port Side
c - Clamp Bracket (Port)
d - Washers (2); Coat with 2-4-C w/Teflon Marine Lubricant
e - Clamp Bracket (Starboard)
f - Tilt Lever Indexed in Starboard Clamp Bracket
a
b
c
56375
56376
a - Tilt Lever Indexed in Port Clamp Bracket
b - Washer
c - Nut; Torque to 25 lb-in. (2.8 Nm)
