GEAR HOUSING
90-857138R1 MAY 2000 Page 6-29
Bearing Carrier

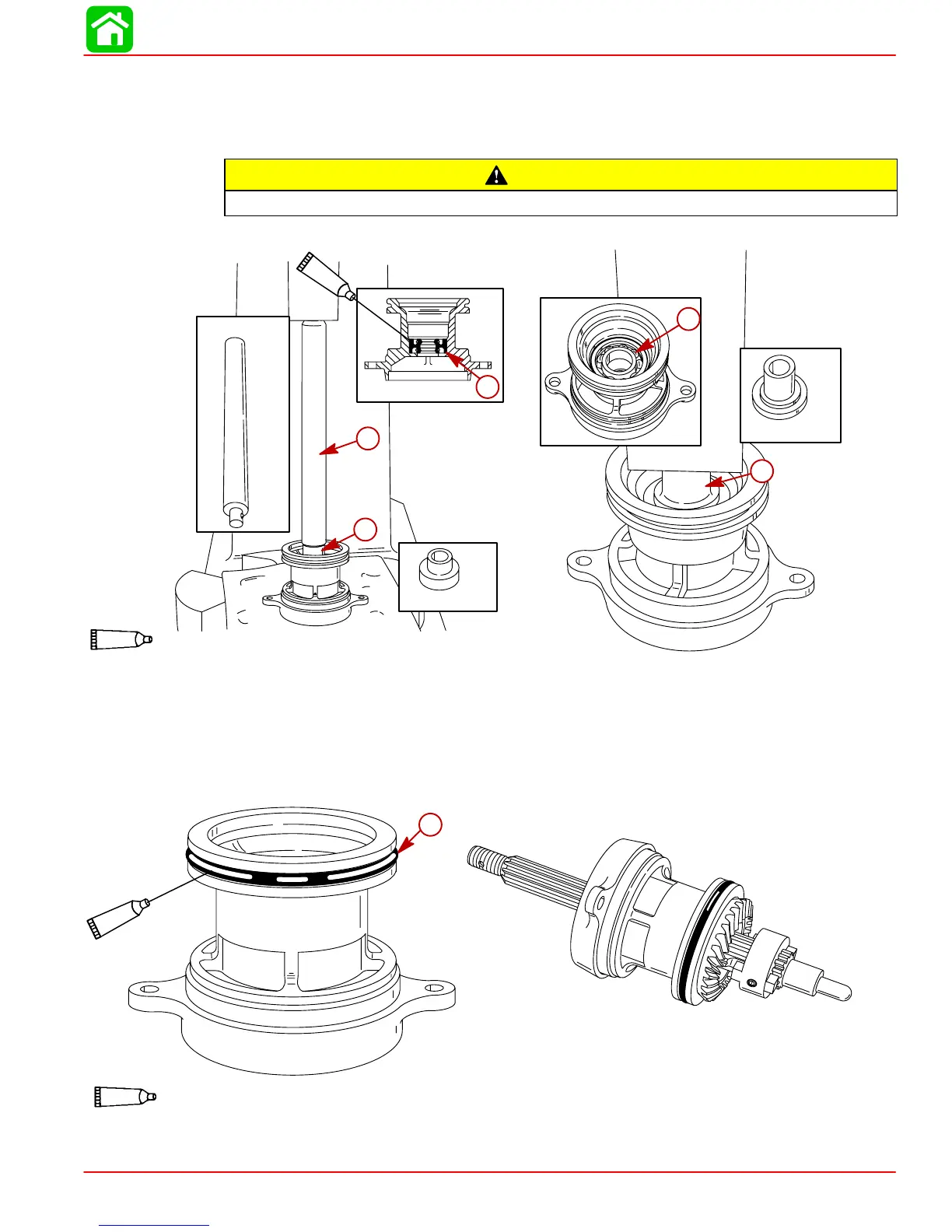

1. Install propeller shaft oil seal into bearing carrier using driver rod and mandrel.
2. Lubricate lip of oil seal using 2-4-C w/Teflon Marine Lubricant.
CAUTION
Press only on bearing outer race when installing.
3. Press propeller shaft bearing (from numbered side) into carrier using mandrel.
91-84536M
91-84529M
91-83174M
a
b
c
d
e
56450 56451
95
95
2-4-C With Teflon (92-825407A12)
a - Propeller Shaft Oil Seal
b - Driver Rod
c - Mandrel
d - Propeller Shaft Bearing
e - Mandrel
4. Install new O-ring and lubricate with 2-4-C w/Teflon Marine Lubricant.
5. Install bearing carrier onto propeller shaft as shown.
a
56397 56396
95
95
2-4-C With Teflon (92-825407A12)
a - O-ring
To Next Page
