GEAR HOUSING
Page 6-10 90-857138R1 MAY 2000

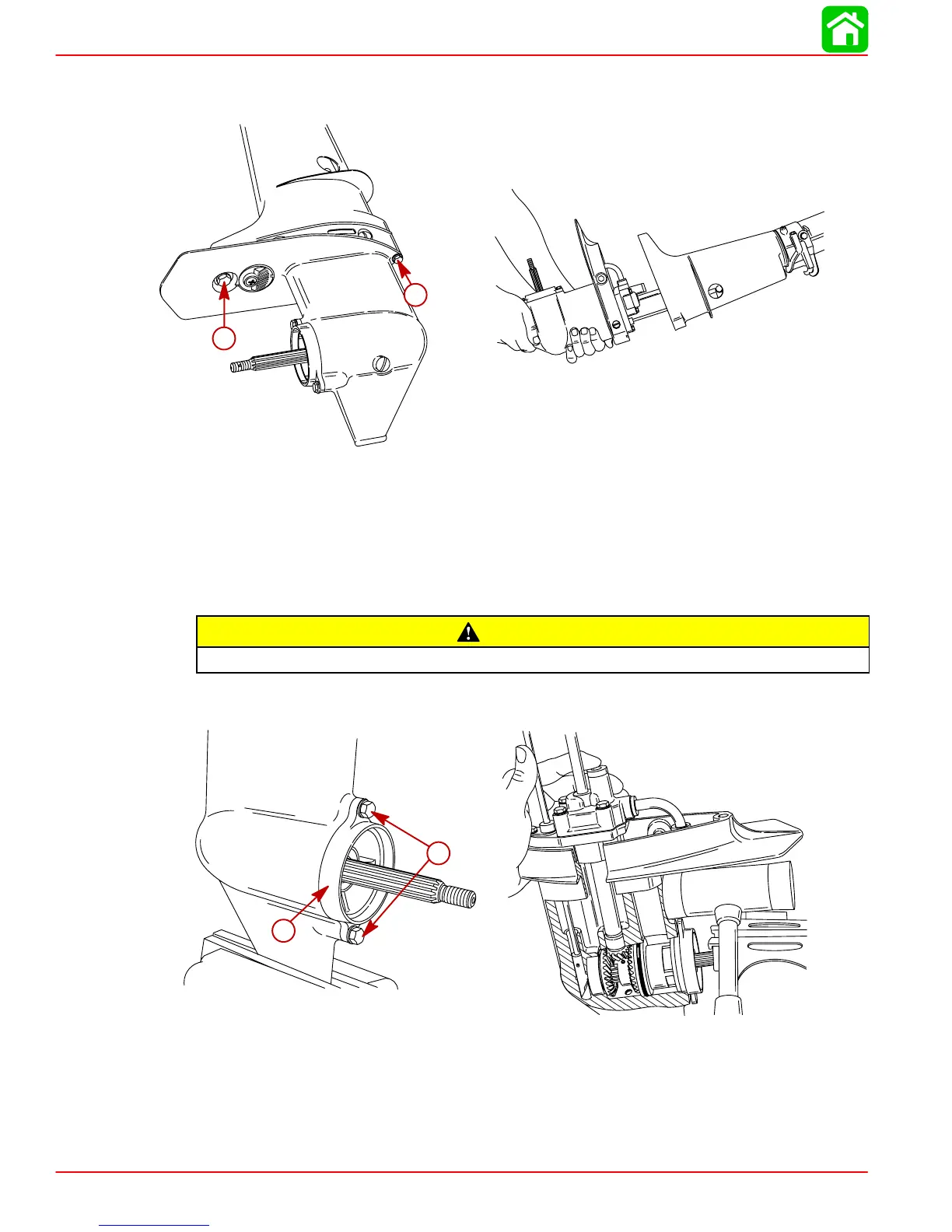

6. Remove bolts with washers.
7. Guide gear housing from drive shaft housing.
a
a
56393
56306
a - Bolts with Washers
Gear Housing Disassembly
Bearing Carrier
1. Remove two bolts that secures bearing carrier.
CAUTION
Make sure to keep gear housing from falling when bearing carrier loosens.
2. Clamp propeller shaft in soft jaw vise. Use soft face mallet to strike gear housing approxi-
mately midway between anti-ventilation plate and bearing carrier cavity.
a
b
56394 56395
a - Bolts (2)
b - Bearing Carrier
