Mercury 6 SERIES User Manual

SHIFT LINKAGE
Page 7A-4 90-857138R1 MAY 2000
Removal/Disassembly
1. Remove powerhead referring to Section 4A “Powerhead” Also remove gear housing
referring to Section 6, “Gear Housing.”

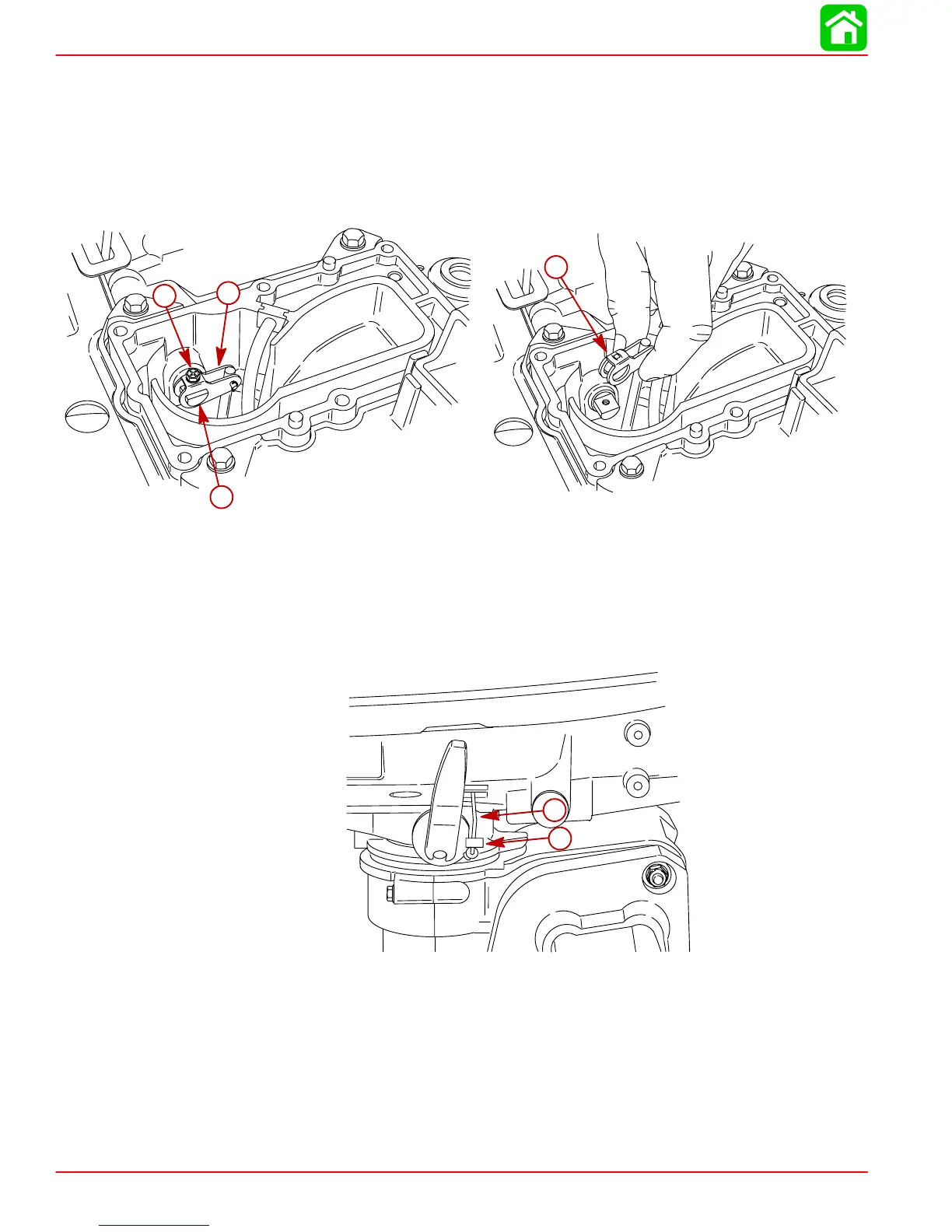

2. Remove screw and slide lever off shaft of shift lever.
3. Remove upper shift shaft and lever assembly.
57235
a
b
c
57236
d
a-Screw
b-Slide Lever
c-Shift Lever Shaft
d-Shift Shaft Lever Assembly
4. Disconnect starter lock rod snap and remove rod.
a
b
56990
a-Starter Lock Rod Snap
b-Rod

Mercury 6 SERIES Specifications

General

Starting	Manual
Cylinders	1
Steering	Tiller
Horsepower	6 HP
Full Throttle RPM Range	5000 - 6000 RPM
Fuel Type	Gasoline
