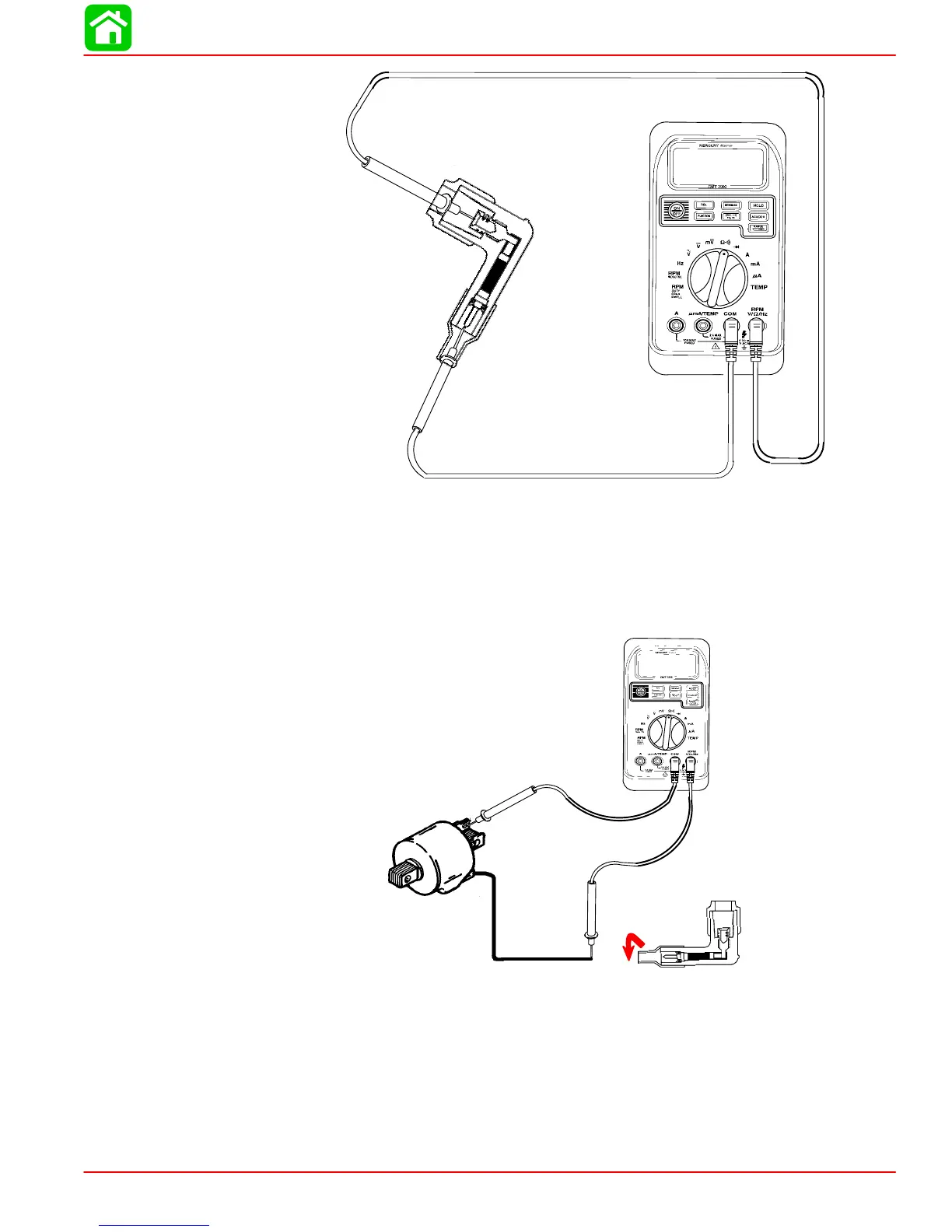

IGNITION SYSTEM
90-857138R1 MA
Y 2000
Page 2A-9
3500 - 5200
Ω
55853
3000-4400
Ω
3.
I
f meter readings are other than specified, replace ignition coil. Refer to “Ignition Compo-
nent Removal Installation,” following.
