3. Do not install wedges or plates between the transom clamp brackets and
the transom (or jack plate). Refer to Figure 4.

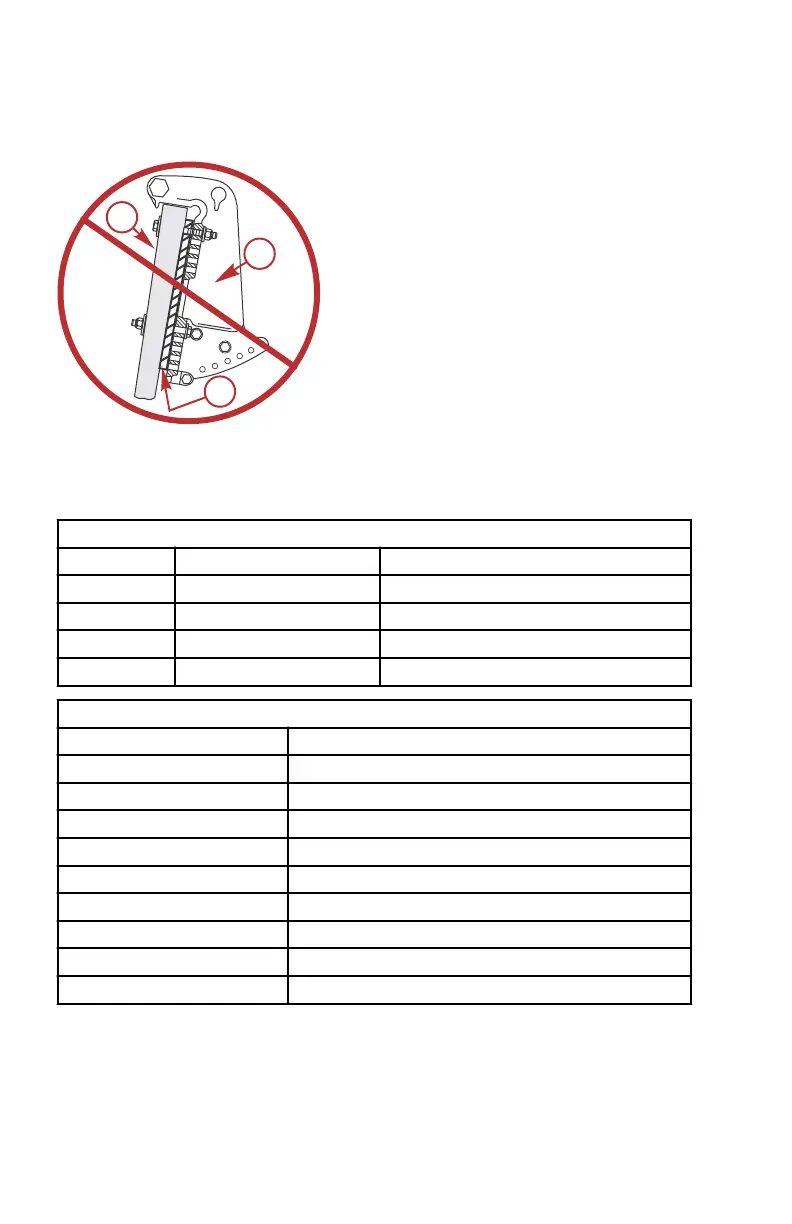

Figure 4
a - Boat transom or jack plate
b - Transom clamp bracket
c - Wedge/plate
Fastening the Outboard to the Transom
MOUNTING BOLTS
Outboard Transom Mounting Hardware ‑ Supplied with Outboard
Part Number Part Name Description
8M0071543 Outboard mounting bolt ½‑20 x 5.00 in. long (3.25 in. thread)
826711‑17 Nylon insert locknut ½‑20
28421 Flat washer 1.50 in. diameter
54012 Flat washer 0.875 in. diameter
Available Outboard Mounting Bolts
Part Number Description
67755005 ½‑20 x 2.50 in. long (1.25 in. thread)
67755006 ½‑20 x 3.50 in. long (1.25 in. thread)
814259 ½‑20 x 4.00 in. long (2.25 in. thread)
67755‑1 ½‑20 x 4.50 in. long (2.25 in. thread)
8M0071543 ½‑20 x 5.00 in. long (3.25 in. thread)
8M0038370 ½‑20 x 5.50 in. long (3.25 in. thread)
67755‑2 ½‑20 x 6.50 in. long (2.75 in. thread)
8M0028080 ½‑20 x 7.50 in. long (2.75 in. thread)
8M0032860 ½‑20 x 8.00 in. long (2.75 in. thread)
54058
a
b
c
