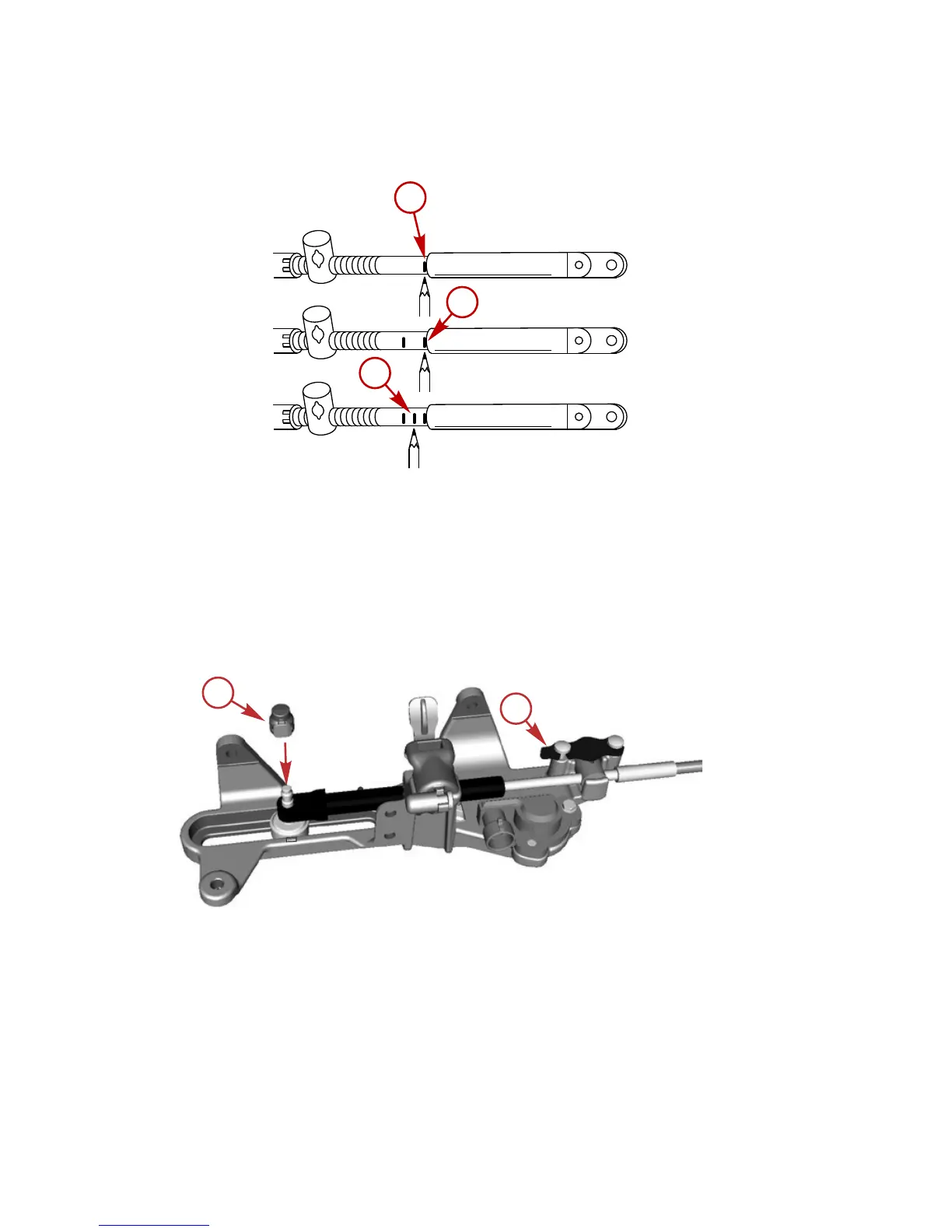

c. Make a center mark "c," midway between marks "a" and "b." Align the
cable end guide against this center mark when installing the cable to
the engine.
4. Position the remote control into neutral.
5. Place the barrel cup into the barrel pocket.
6. Align the shift cable end guide with the center mark made in step 3. Place
the shift cable on the anchor pin. Adjust cable barrel so it slips freely into
the barrel cup.
7. Secure the shift cable to the anchor pin with the shift cable retainer.
8. Lock the barrel in place with the cable latch.
a - Shift cable retainer
b - Cable latch
9. Check shift cable adjustments as follows:
a. Shift remote control into forward. The propeller shaft should be locked
in gear. If not, adjust the barrel closer to the cable end.
b. Shift remote control into neutral. The propeller shaft should turn freely
without drag. If not, adjust the barrel away from the cable end. Repeat
steps a and b.
