c. Shift remote control into reverse while turning propeller. The propeller
shaft should be locked in gear. If not, adjust the barrel away from the
cable end. Repeat steps a through c.
d. Shift remote control back to neutral. The propeller shaft should turn
freely without drag. If not, adjust the barrel closer to the cable end.
Repeat steps a through d.

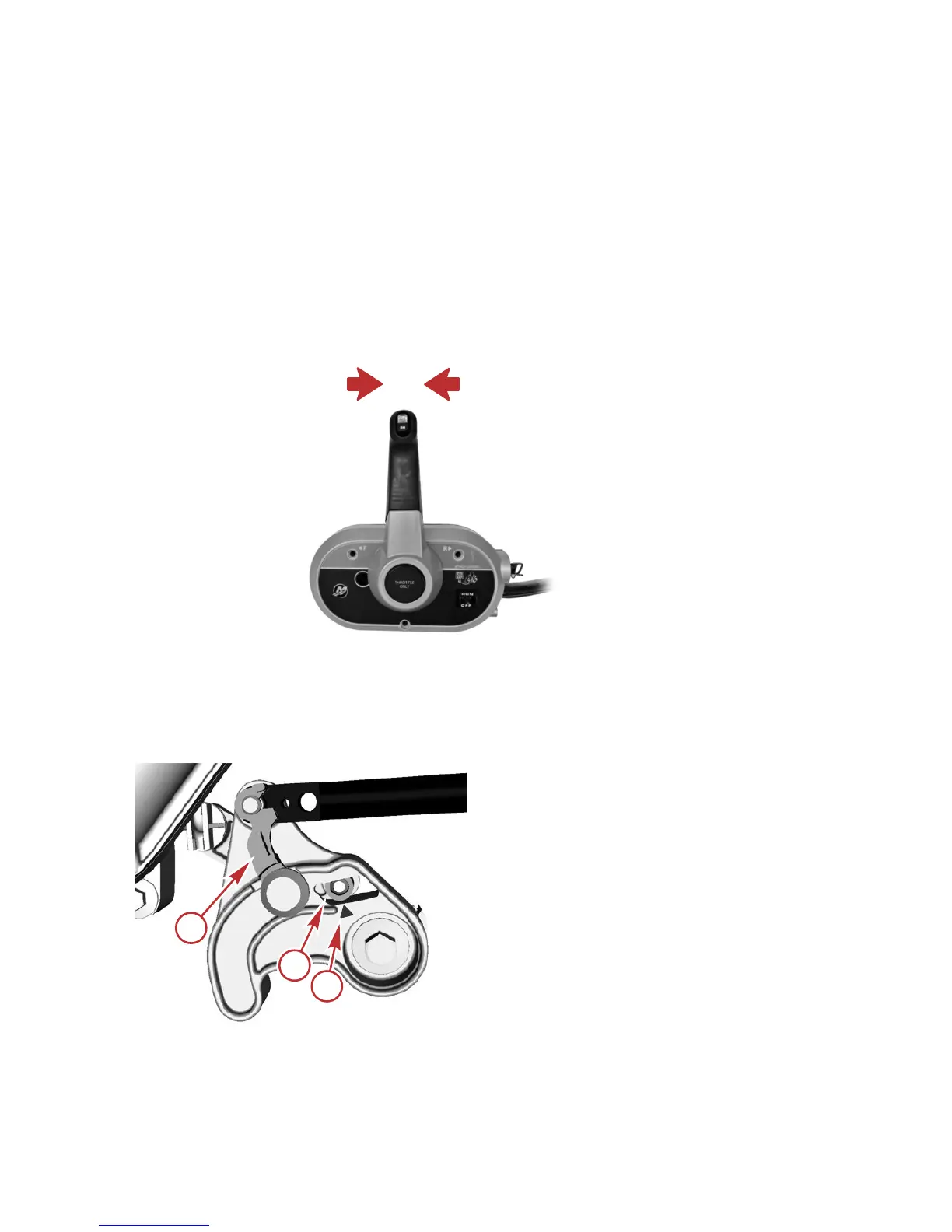

THROTTLE CABLE INSTALLATION
Install cables into the remote control following the instructions provided with the
remote control.
1. Shift remote control into the neutral (N) position.
N
58237
2. Install the throttle cable onto the throttle cam anchor pin and secure with
the anchor pin latch.
3. Adjust the cable barrel so that the throttle cam timing mark will align with
the throttle lever.
a - Anchor pin latch
b - Throttle lever
c - Throttle cam timing mark
4. Place the barrel cup onto the barrel. Place the cable barrel and barrel cup
into the barrel retainer.
a
b
53875
c
OUTBOARD INSTALLATION
128 eng
