4. Remove the anode assembly (anode plug, sealing washer, and the sacrificial anode) from the aftercooler end cover.

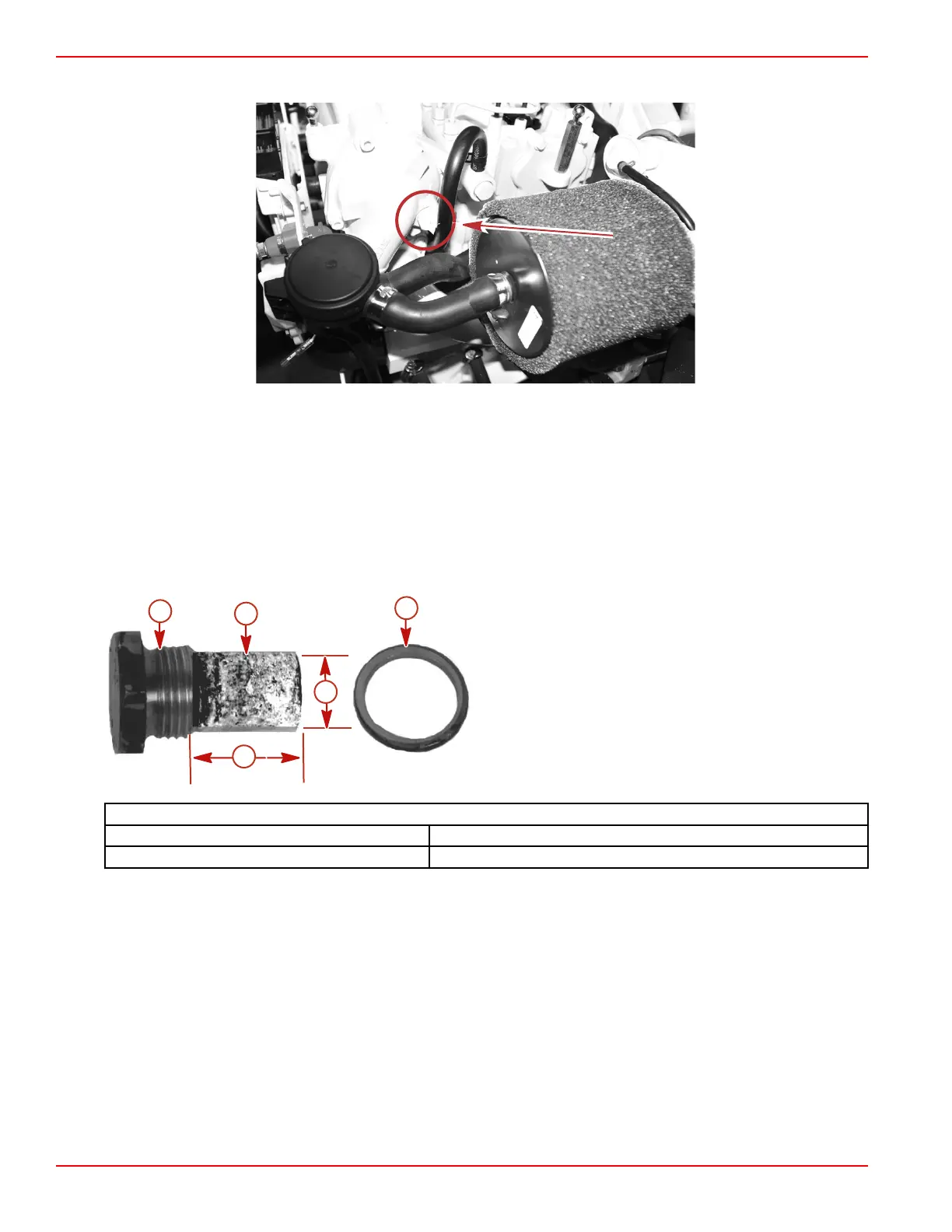

Seawater system anode assembly location
Cleaning and Inspection
NOTE: Use sandpaper, fiber brush, or a cleaning pad to remove the deposits from the surface of the anode before trying to
determine the amount of erosion. Do not use a steel brush which might leave deposits that could accelerate corrosion.
1. Remove the deposits.
2. Inspect and measure the anode. Compare the measurements to the specifications for a new sacrificial anode and replace
the anode assembly when deteriorated 50%.
NOTE: Sacrificial anodes are available only as an assembly. Replace both the plug and anode as a unit.
Anode assembly
a - Anode plug
b - Sacrificial anode
c - Length
d - Diameter
e - Sealing washer
Sacrificial anode measurements (new)
Length 19 mm (3/4 in.)
Diameter 16 mm (5/8 in.)
3. Discard the sealing washer.
19226
