Clamp/Swivel Bracket and Driveshaft Housing
90-8M0065421 NOVEMBER 2012 Page 5A-15

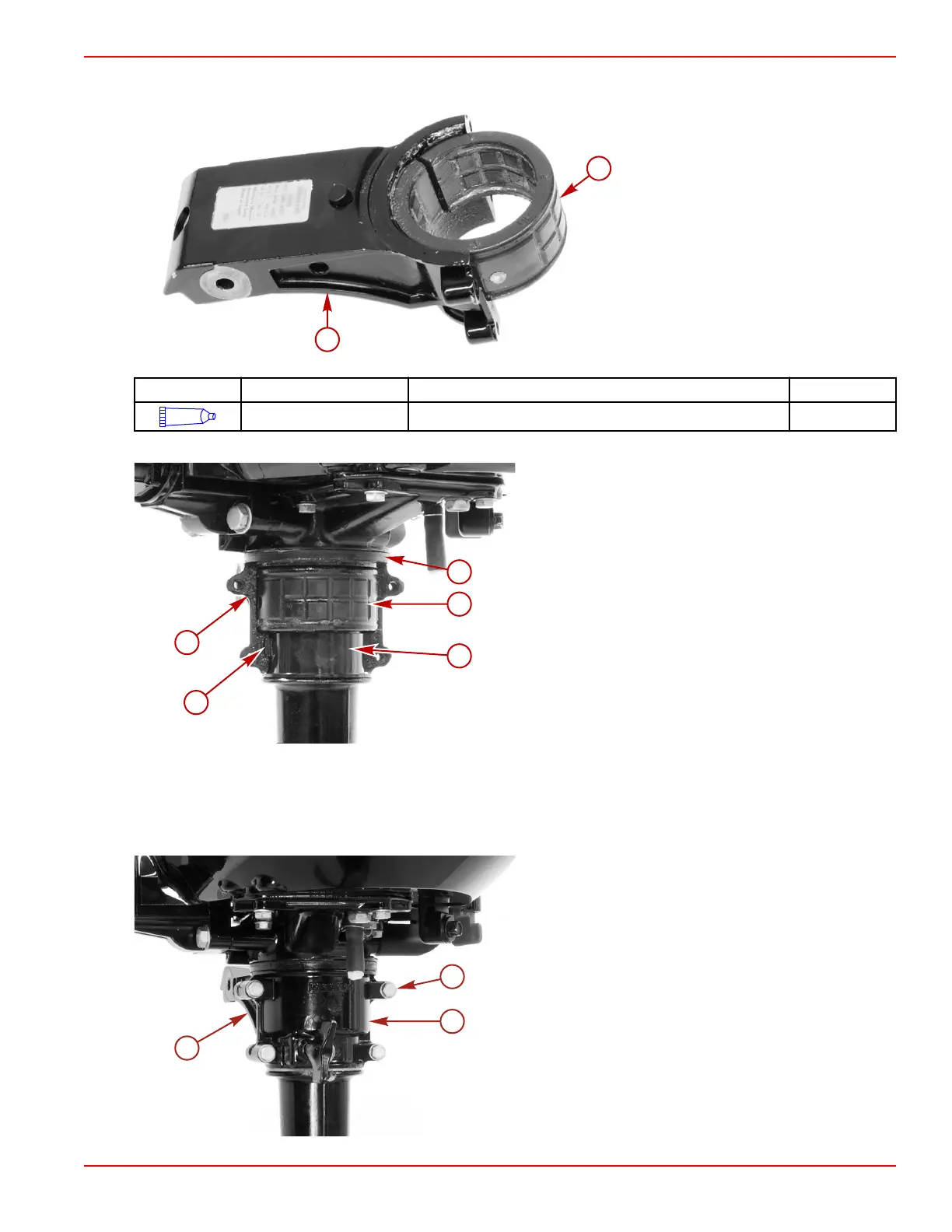

5. Lubricate the inside of the rubber bushing with 2‑4‑C with PTFE.
a - Rubber bushing
b - Swivel bracket
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Swivel bracket rubber bushing 92-802859A 1
6. Install the swivel bracket with the rubber bushing onto the driveshaft housing.
a - Thrust plate
b - Rubber bushing
c - Split plastic bushing
d - Tab
e - Swivel bracket
7. Attach the swivel bracket cap to the swivel bracket.
NOTE: The split plastic bushing tabs fit into the cast pockets of the swivel bracket cap.
8. Apply Loctite 271 Threadlocker to the four special flange head bolt threads. Install the bolts. Tighten the bolts to the
specified torque.
IMPORTANT: Do not use common bolts to secure the swivel bracket/swivel bracket cap.
a - Special bolt and washer (4) (M6 x 35)
b - Swivel bracket cap
c - Swivel bracket
