Clamp/Swivel Bracket and Driveshaft Housing
Page 5A-14 90-8M0065421 NOVEMBER 2012

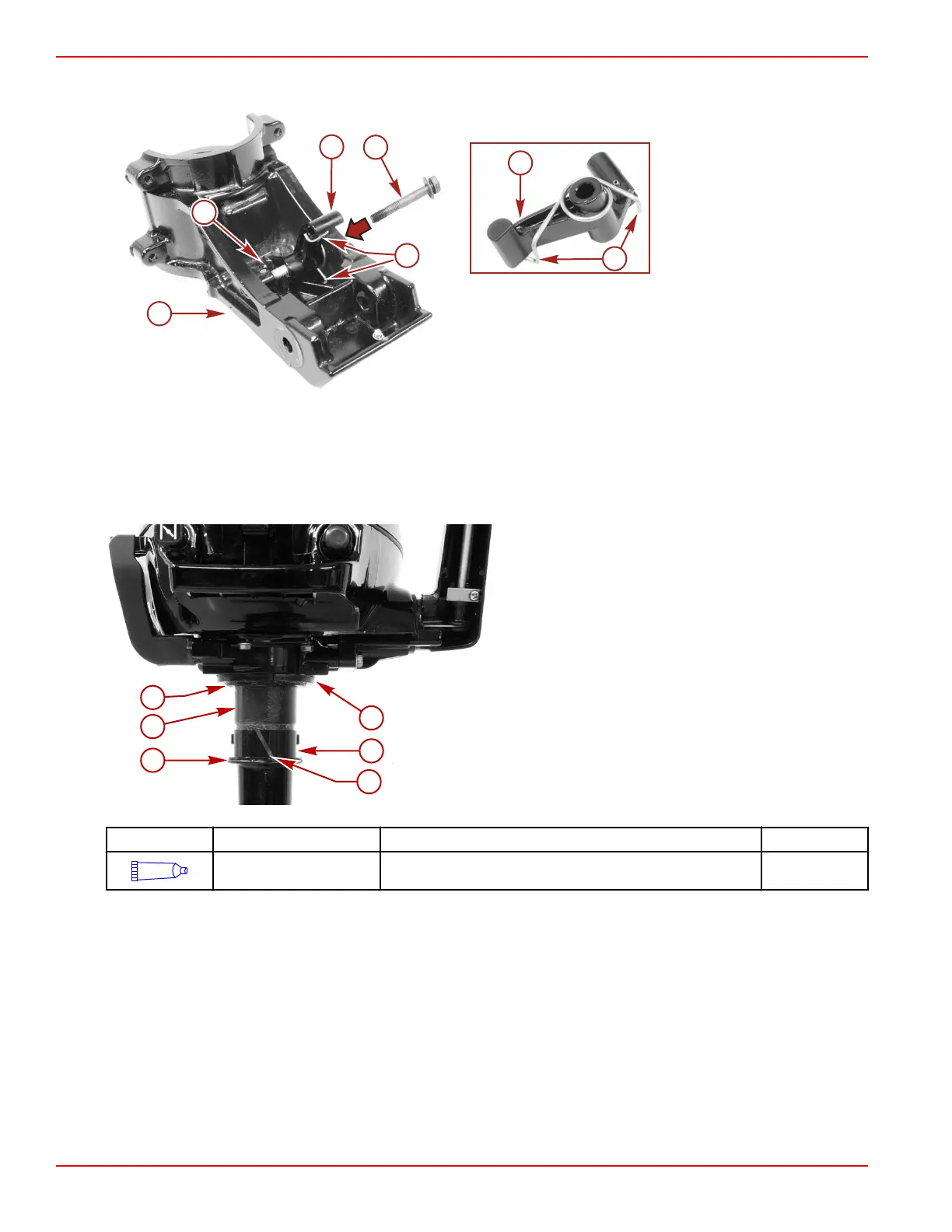

Steering Stop Components
a - Stopper and pin
b - Steering stop lever
c - Bolt and washer
d - Spring ends
e - Swivel bracket
Installation
1. Lubricate the driveshaft housing between the upper and lower flanges with 2‑4‑C with PTFE.
2. Install the thrust plate and split plastic bushing onto the driveshaft housing.
NOTE: Install the split plastic bushing with the split facing towards the front of the engine.
3. Lubricate the thrust plate and plastic bushing with 2‑4‑C with PTFE.
a - Thrust plate
b - Plastic bushing
c - Split in plastic bushing
d - Lower flange
e - Driveshaft housing
f - Upper flange
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE
Driveshaft housing between flanges, swivel bracket thrust
plate, and plastic bushing
92-802859A 1
4. Align the tab on the rubber bushing with the pocket of the swivel bracket. Install the rubber bushing onto the swivel bracket.
NOTE: It is not necessary to use adhesive to attach the rubber bushing onto the front swivel bracket.
