Gear Housing
90-8M0065421 NOVEMBER 2012 Page 6A-25

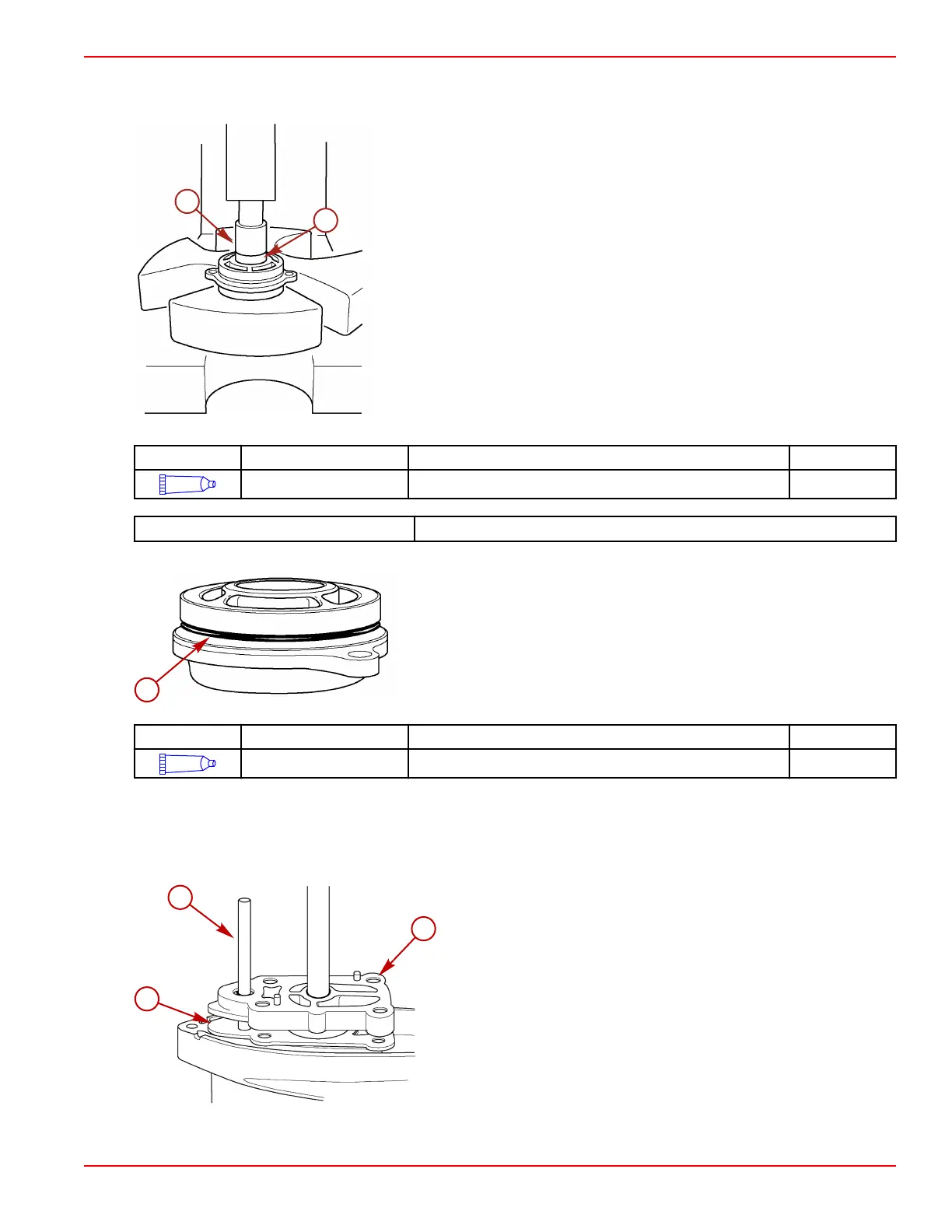

3. Press the new ball bearing (number side up) into the carrier until the bearing seats. Use a press with a driver and mandrel
from the bearing removal and installation kit.
a - Bearing
b - Mandrel (37312)
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Outside diameter of carrier bearing 92-802859A 1
Bearing Removal and Installation Kit 91‑31229A7
4. Install the carrier O‑ring. Apply 2‑4‑C with PTFE to the O‑ring surface.
a - O‑ring
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Bearing carrier O-ring surface 92-802859A 1
Shift Shaft
1. Install the shift shaft into the gear housing. Apply a light coat of 2‑4‑C with PTFE on the shift shaft to lubricate the O‑ring in
the water pump base.
2. Install the water pump base and a new base gasket.
a - Shift shaft
b - Pump base
c - Base gasket
