Tiller Handle
Page 7B-10 90-8M0065421 NOVEMBER 2012

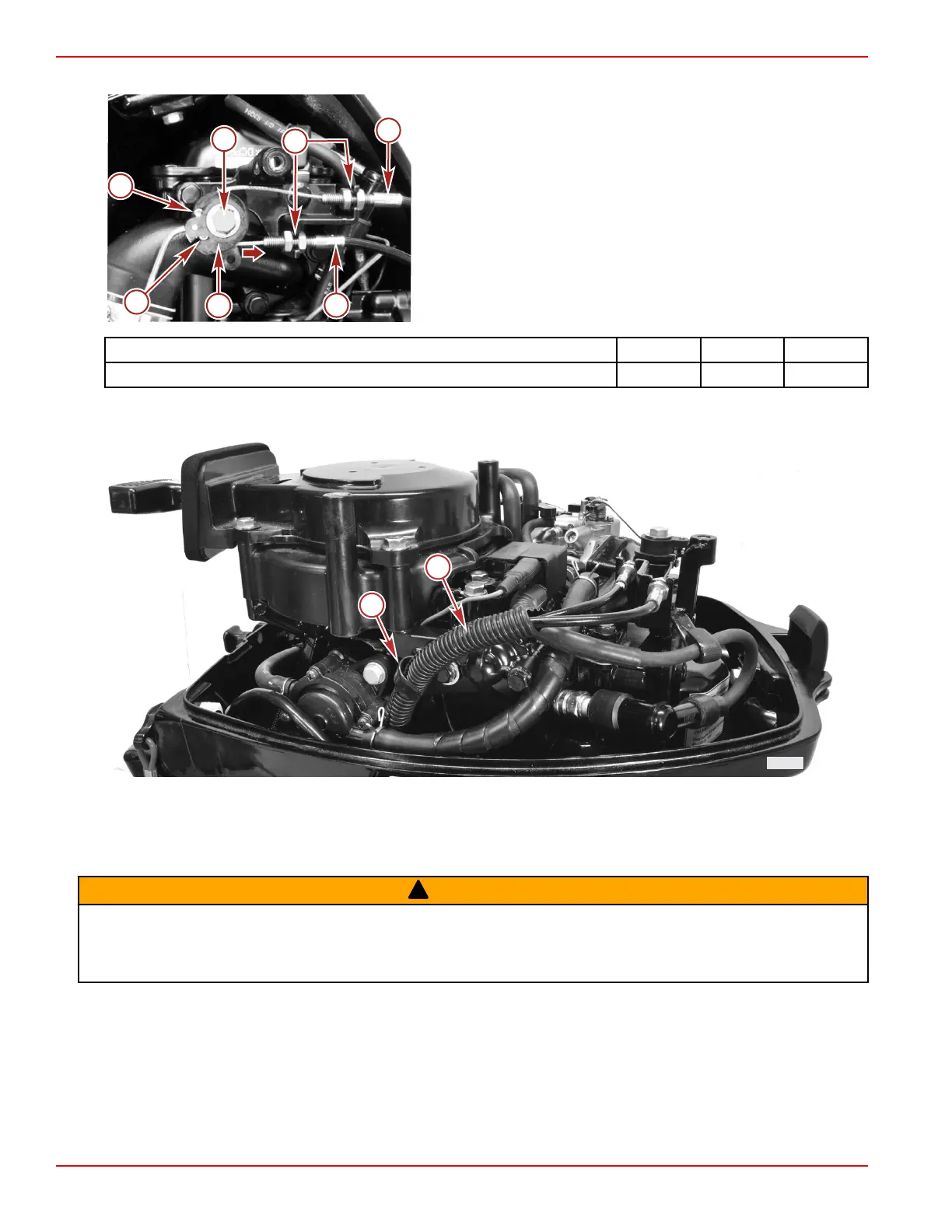

3. Install the throttle cables into the slots on the throttle cable bracket.
a - Throttle cable A
b - Throttle cable B
c - Throttle drum
d - Throttle cable end of cable B
e - Throttle cable end of cable A
f - Throttle drum bolt
g - Throttle cable bracket slots
Description Nm lb‑in. lb‑ft
Throttle drum bolt 6 53
4.
Adjust the throttle cables. Refer to Throttle Cable Adjustment, following.
5. Install the sleeve around the throttle cables. Secure the sleeve with the J‑clamp.
a - Sleeve
b - J‑clamp
6. Install the fuel tank assembly. Attach the fuel line to the fuel tank and secure it with a hose clamp.
!
WARNING
Fuel is flammable and explosive. Ensure that the key switch is off and the lanyard is positioned so that the engine cannot
start. Do not smoke or allow sources of spark or open flame in the area while servicing. Keep the work area well ventilated
and avoid prolonged exposure to vapors. Always check for leaks before attempting to start the engine, and wipe up any
spilled fuel immediately.
