Carburetor and Fuel Pump
90-8M0065421 NOVEMBER 2012 Page 3A-17

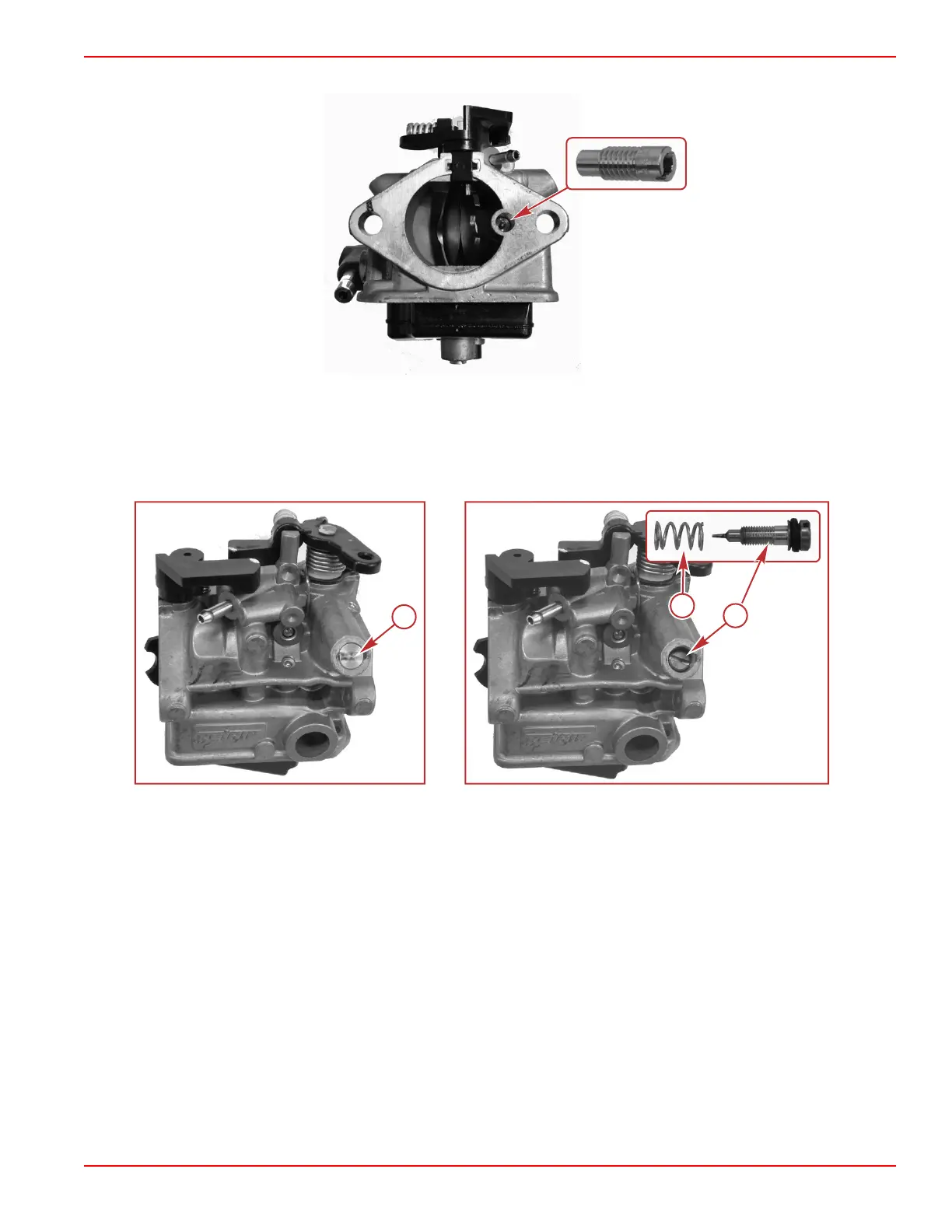

3. Remove the pilot jet.
50771
4. Remove the pilot mixture screw.
a. Remove the tamperproof plug.
b. Count and record the number of revolutions to lightly seat the pilot mixture screw.
IMPORTANT: This information will be used during carburetor assembly.
c. Remove the pilot mixture screw and spring.
a - Tamperproof plug
b - Pilot mixture screw
c - Spring
a
50772
b
c
