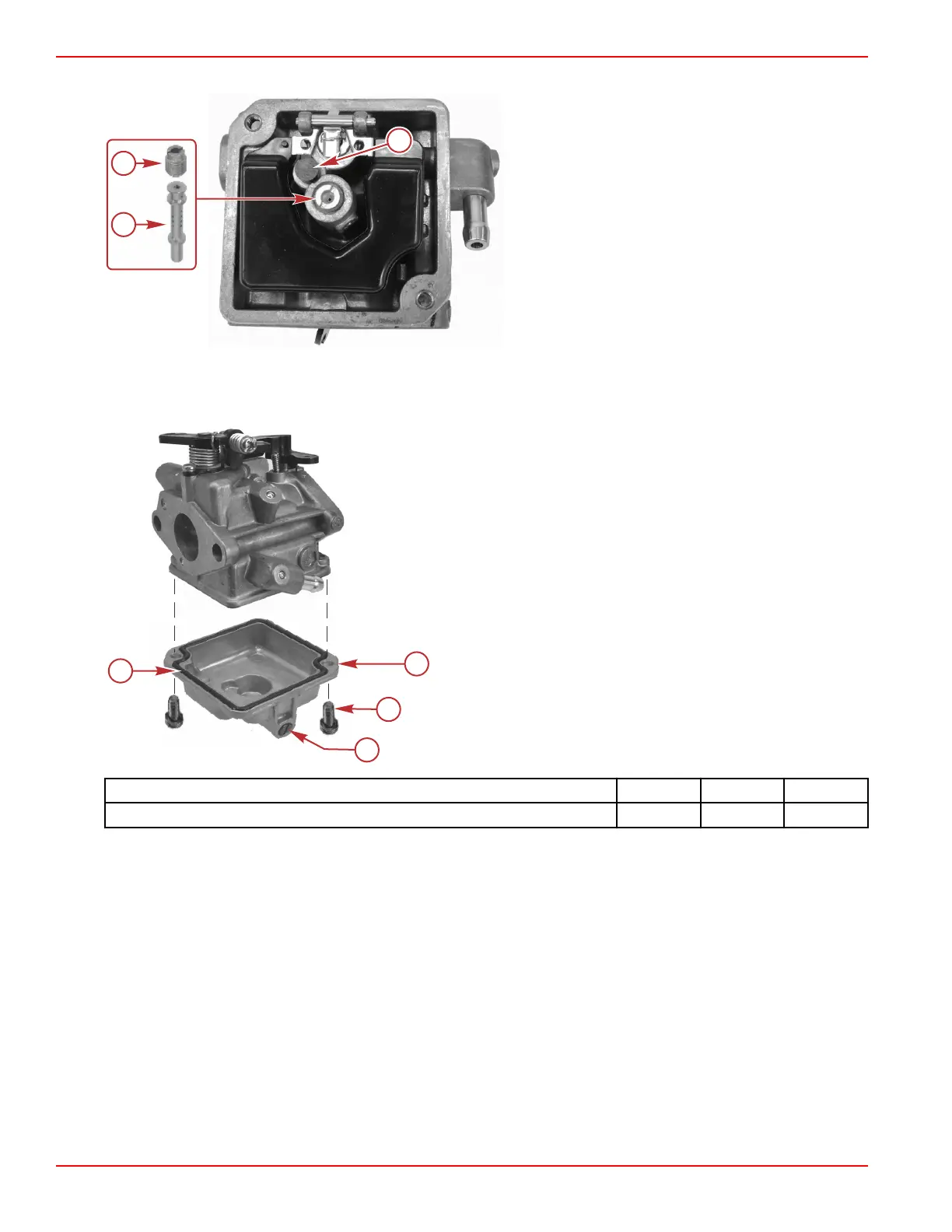

9. Install the rubber plug.
a - Main jet
b - Main nozzle
c - Rubber plug
10. Install the carburetor drain screw.
11. Install the O‑ring gasket onto the float bowl.
12. Install the float bowl. Tighten the screws to the specified torque.
a - Float bowl
b - Screw (M4 x 12) (2)
c - Drain screw
d - O‑ring gasket
Description Nm lb‑in. lb‑ft
Float bowl screws (M4 x 12) 2 18
