Section 2 - Getting to Know Your Power Package
90-8M0099741 eng JUNE 2015 Page 23
• Engine oil pressure
• Battery voltage
• Fuel consumption
• Engine operating hours

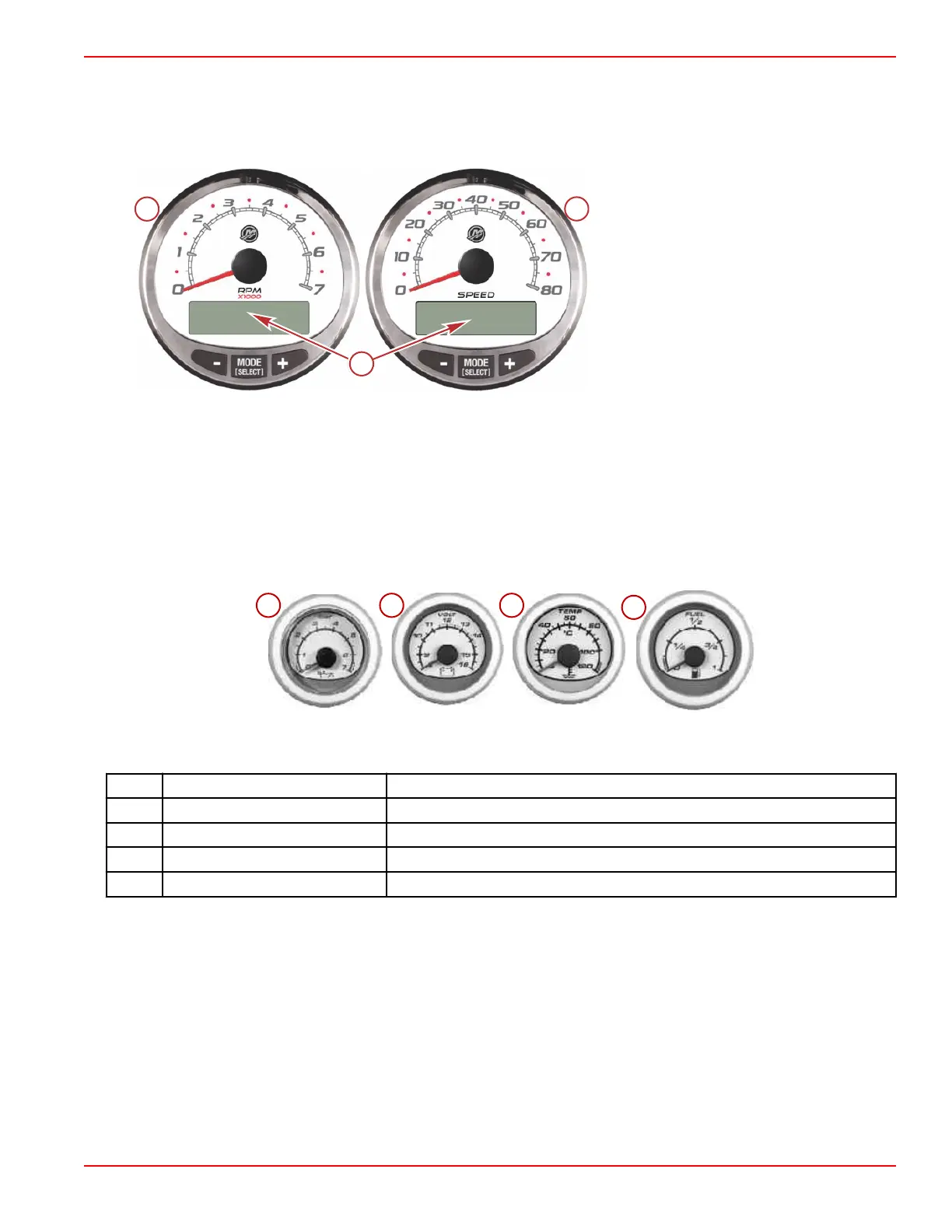

SmartCraft tachometer and speedometer
a - Tachometer
b - Speedometer
c - LCD display
The SmartCraft instrument package also aids in identifying fault codes associated with the engine audio warning system. The
SmartCraft instrument package displays critical engine alarm data and other potential problems on its LCD display.
For basic operation information on the SmartCraft instrument package and for details on the warning functions monitored by the
system, refer to the manual provided with your gauge package.
System Link Digital Instruments
Some instrumentation packages include system link gauges that augment the information provided by VesselView or a
SmartCraft system tachometer and speedometer. The owner and operator should be familiar with all the instruments and their
functions on the boat. Have your boat dealer explain the gauges and normal readings that appear on your boat.
The following digital instruments may be included with your power package.
System Link digital gauges
Item Gauge Indicates
a Oil pressure gauge Engine oil pressure
b Voltmeter Battery voltage
c Water temperature gauge Engine operating temperature
d Fuel gauge Quantity of fuel in tank
Remote Controls (DTS Models)
Remote Controls
IMPORTANT: Your boat must be equipped with a Mercury Marine electronic remote control. Start in gear protection is provided
by this control system and prevents the engine from starting when the control is actuated in forward or reverse. Refer to the
Mercury Precision Parts/Quicksilver Accessories Guide.
The digital throttle and shift (DTS) system required to operate this engine package provides start and stop functions, throttle
control, shift control, start in gear protection, and emergency lanyard stop functions. The DTS system works with specialized
helm components such as a command module kit and electronic remote control. Consult your dealer for a description and/or
demonstration of your remote control.
