Section 2 - Getting to Know Your Power Package
Page 32 90-8M0099741 eng JUNE 2015

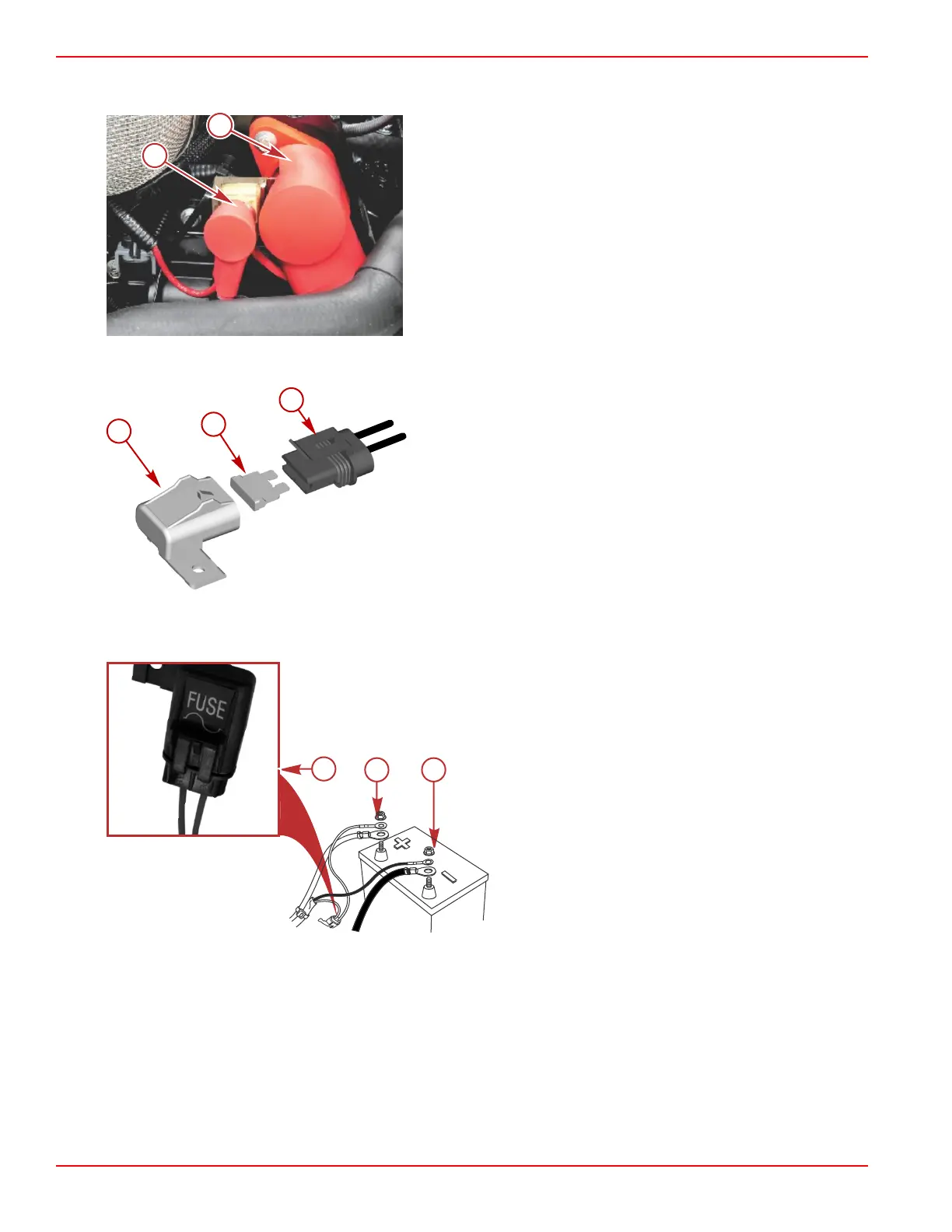

A 90‑amp fuse located near the flame arrestor, protects the engine power harness if an electrical overload occurs. The fuse is
translucent so it can be inspected if the fuse has failed and is open.
a - 90‑amp fuse
b - Hot stud
A 15‑amp fuse located at the aft end of the engine, protects the accessory circuits.
a - Cover
b - 15‑amp fuse
c - Accessory harness
This power package uses a clean power harness that is connected to the engine starting battery. This clean power harness
minimizes an excessive voltage drop to the engine and drive digital control electrical system. This harness is protected by a
5‑amp fuse and is located near the engine starting battery.
a - 5‑amp fuse
b - Positive battery terminal (harness lead with fuse)
c - Negative battery terminal
Visual and Audio Warning Systems
Service Engine Light and OBD‑M MIL Kit
Boats powered by emissions control technology (ECT) catalyzed engines must be equipped with a SmartCraft‑enabled gauge
capable of displaying the service engine icon, or a dash‑mounted service engine light. Malfunction indicator lamp (MIL) kits
containing a dash‑mounted service engine light and a special harness that connects to the engine harness may be purchased
separately.
