MCM MODELS - BRAVO AND BLACKHAWK DRIVES
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2A-5
CAUTION
Center lifting eye (located on top of thermostat housing) is used for engine
alignment only. DO NOT use to lift entire engine.
CAUTION
Engine MUST be lifted with a lifting arm or damage to engine components will occur.
DO NOT allow lifting sling to hook or compress engine components or damage will
occur.
6. Attach a suitable sling to lifting eyes on engine and adjust so that engine is level when
suspended. (Refer to “Removal” section for location of lifting eyes.)
7. Lift engine into position (in boat), using an overhead hoist.
8. Align rear engine mounts with inner transom plate mounts while simultaneously aligning
exhaust tubes with exhaust pipe hoses (bellows).
IMPORTANT: Engine attaching hardware must be installed in sequence shown.
9. Install both rear engine mounting bolts and hardware as shown. Torque to 35-40 lb-ft
(47-54 Nm).
72535
h
g
e
d
c
b
a
f

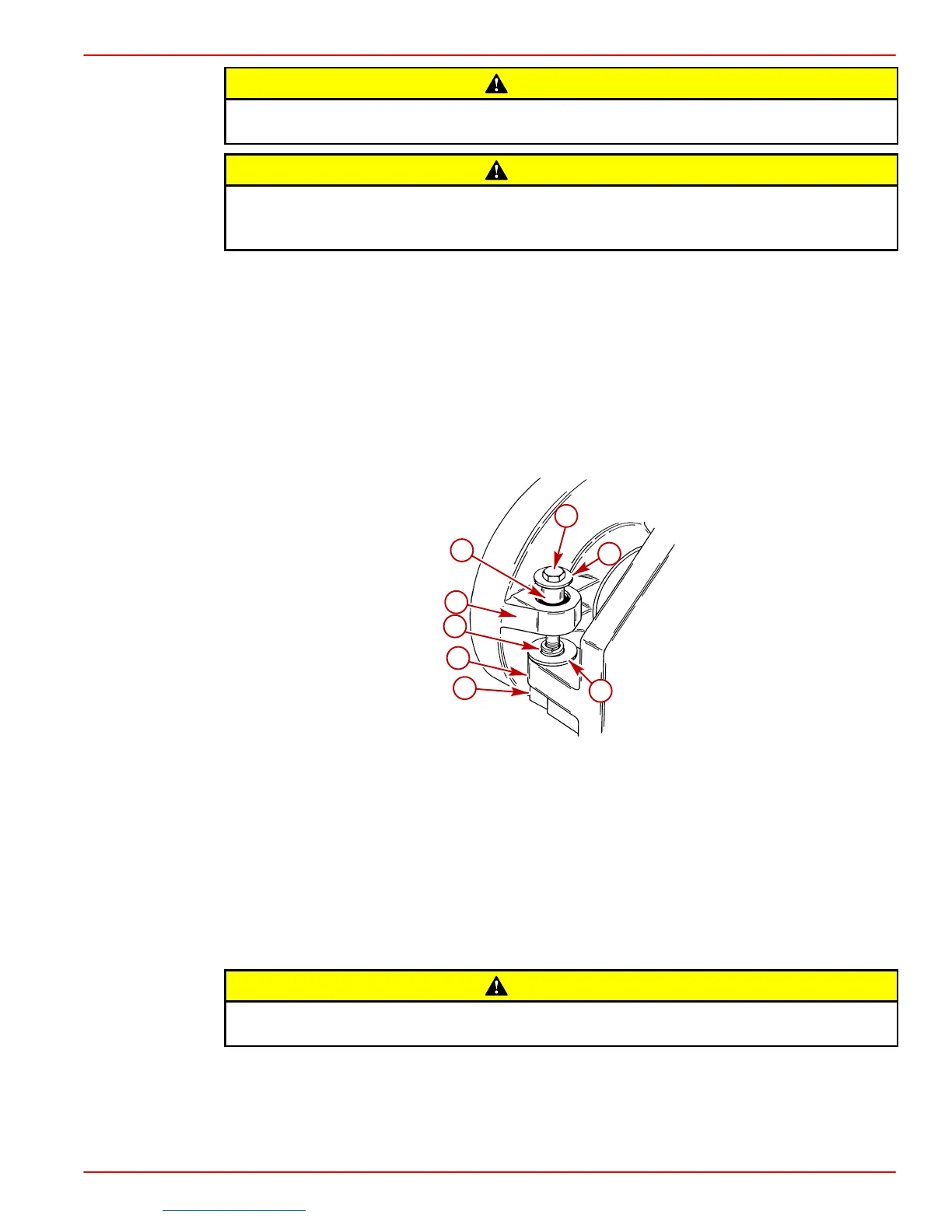

Typical Installation
a-Bolt, Rear Engine Mounting
b-Washer, Large Steel
c-Metal Spacer
d-Rear Engine Mount
e-Double Wound Lockwasher
f-Fiber Washer
g-Inner Transom Plate Mounts
h-Locknut (Hidden In This View)
CAUTION
When lowering engine into position DO NOT set engine on shift cable. Shift cable
outer casing can be crushed causing difficult or improper shifting.
