MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5C-3

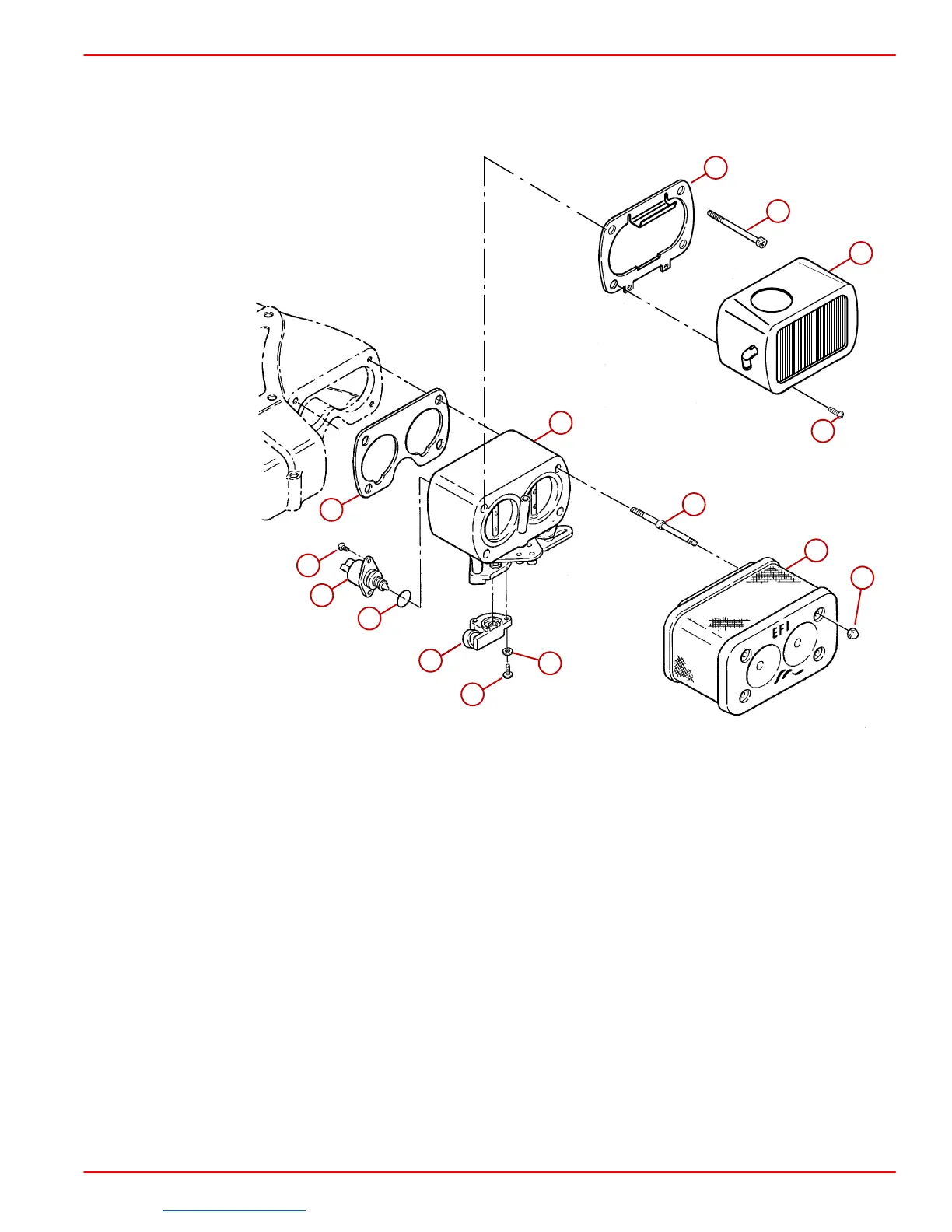

Exploded Views
454/502 Mag MPI and 8.2L MPI Flame Arrestor and Throttle Body
72800
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1-Cap Nut
2-Flame Arrestor (All Models Except Horizon)
3-Stud
4-Throttle Body
5-Gasket
6-Throttle Position (TP) Sensor
7-Washer
8-Screw
9-O-Ring
10 - Idle Air Control (IAC) Valve
11 - Screw
12 - Mounting Bracket (All Models Except Horizon)
13 - Screw (All Models Except Horizon)
14 - Flame Arrestor (Horizon Models)
15 - Screw (Horizon Models)
