Mercury MerCruiser MCM 454 Mag MPI

STARTING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4A-19

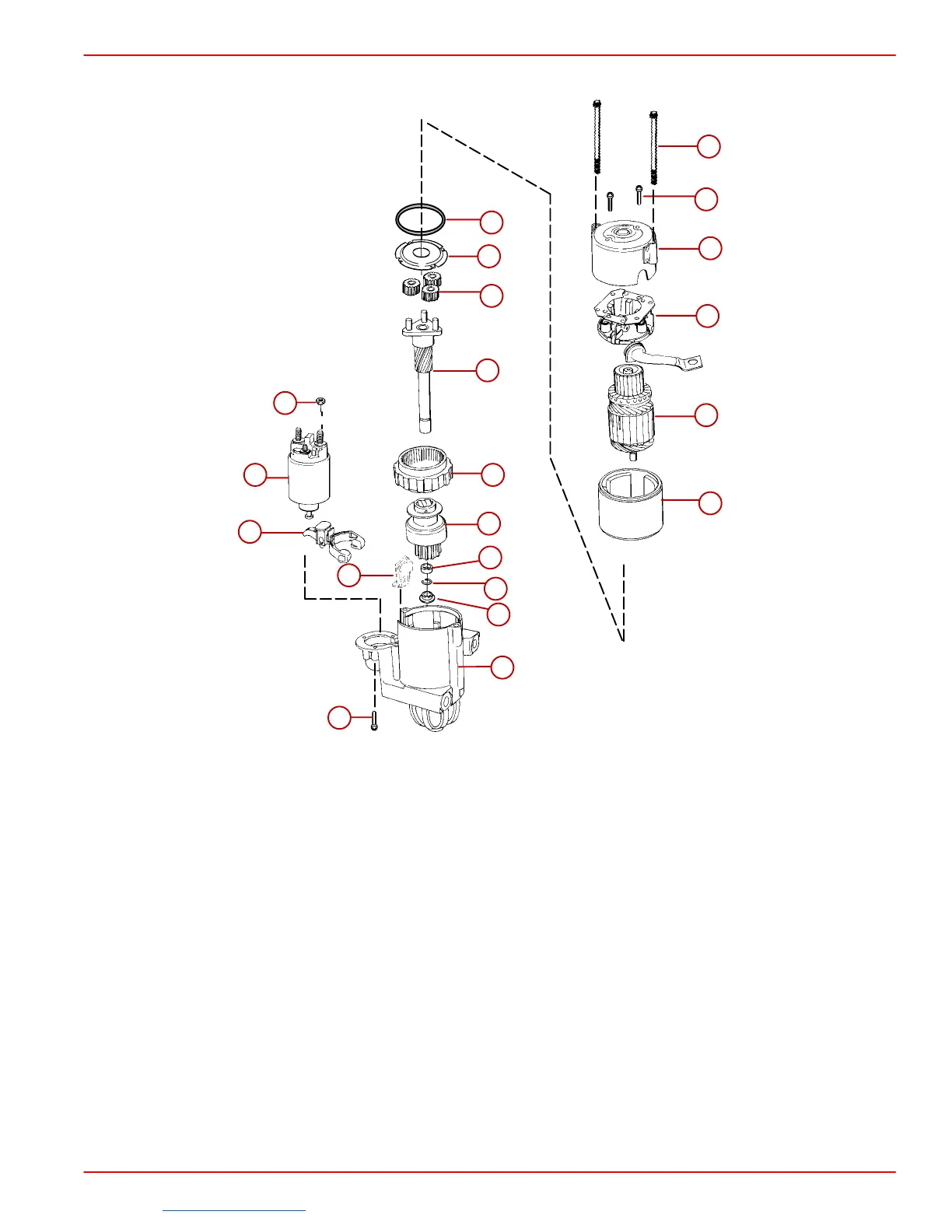

PG 260 Starter Motor Exploded View
74270
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
1-Screw (2)
2-End Cap
3-Brush With Holder
4-Armature
5-Field Frame (With Permanent Magnets)
6-Washer
7-Shield
8-Planetary Gears
9-Shaft
10 - Gear
11 - Drive
12 - Collar
13 - Retaining Ring
14 - Trust Collar
15 - Drive Housing
16 - Nut
17 - Solenoid
18 - Solenoid Drive Arm
19 - Screw (3)
20 - Screw (2)
21 - Rubber Grommet
