COLLECTORS

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 7D-5

Thru-Transom Exhaust

Shutter Replacement

IMPORTANT: A block off plate must be installed when using thru-transom exhaust

or below swim platform kits.

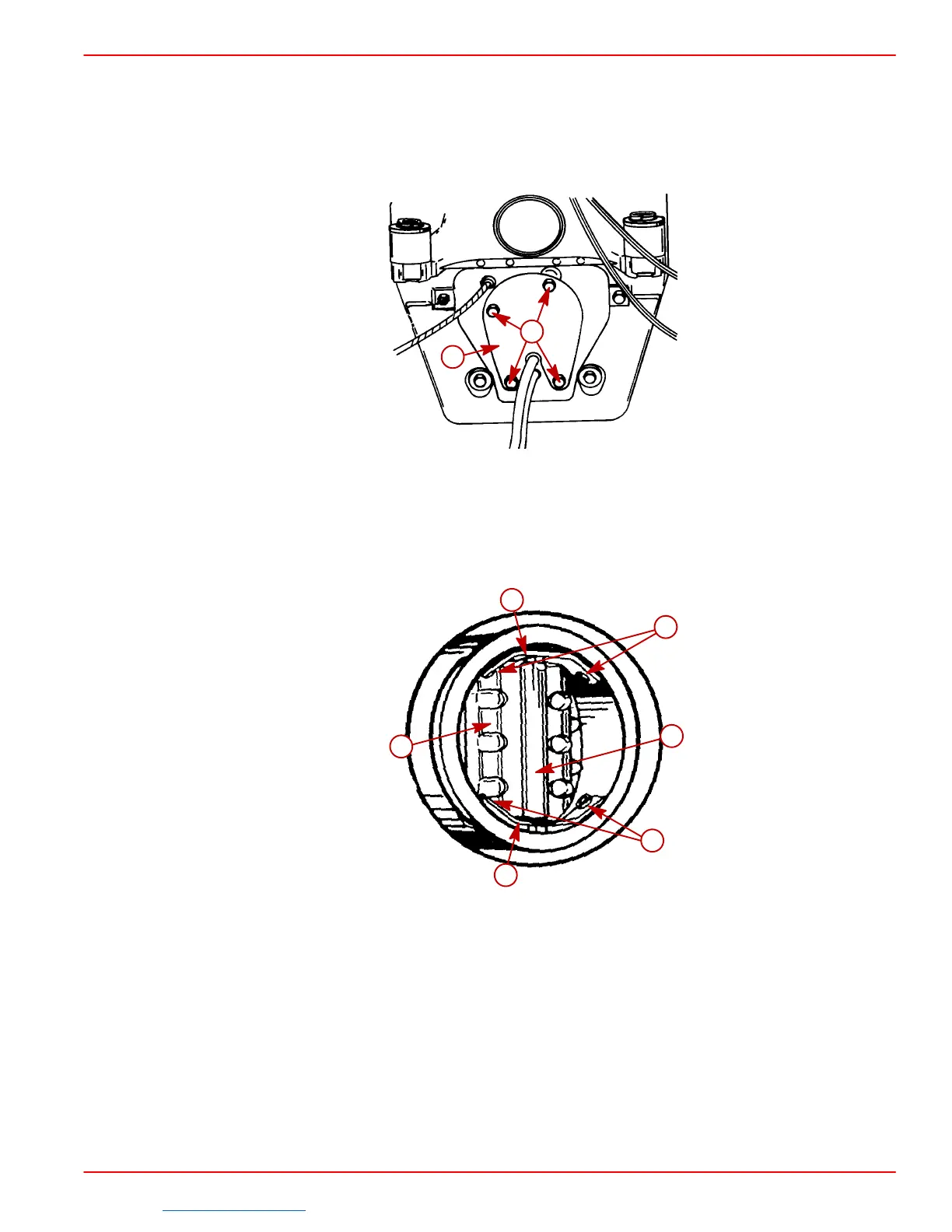

22057

a-Block Off Plate

b-Bolts (4)

1. Remove exhaust hose clamps, then hose.

2. Chisel rivets away from both support members.

27761

a-Shutter Hinge

b-Water Shutter - Opens Toward Outside Of Boat

c-Support Member

d-Rivets (4)

3. Install new shutter as shown in “Component Replacement” following. Tighten screws

and nut securely.

4. Reinstall exhaust hose. Tighten clamps securely.
