INSTRUMENTATION SERVICE MANUAL NUMBER 23
Page 4D-16 90-861326--1 MARCH 1999
Lanyard Stop Switches
NOTICE
For repair procedures on fuel injected engines, refer to Section 5.
TESTING
1. Disconnect switch leads.
2. Test switch as follows.
a. Connect an ohmmeter to leads.
b. There should be continuity with switch lanyard connected and no continuity with
switch lanyard disconnected.
74061
b
a

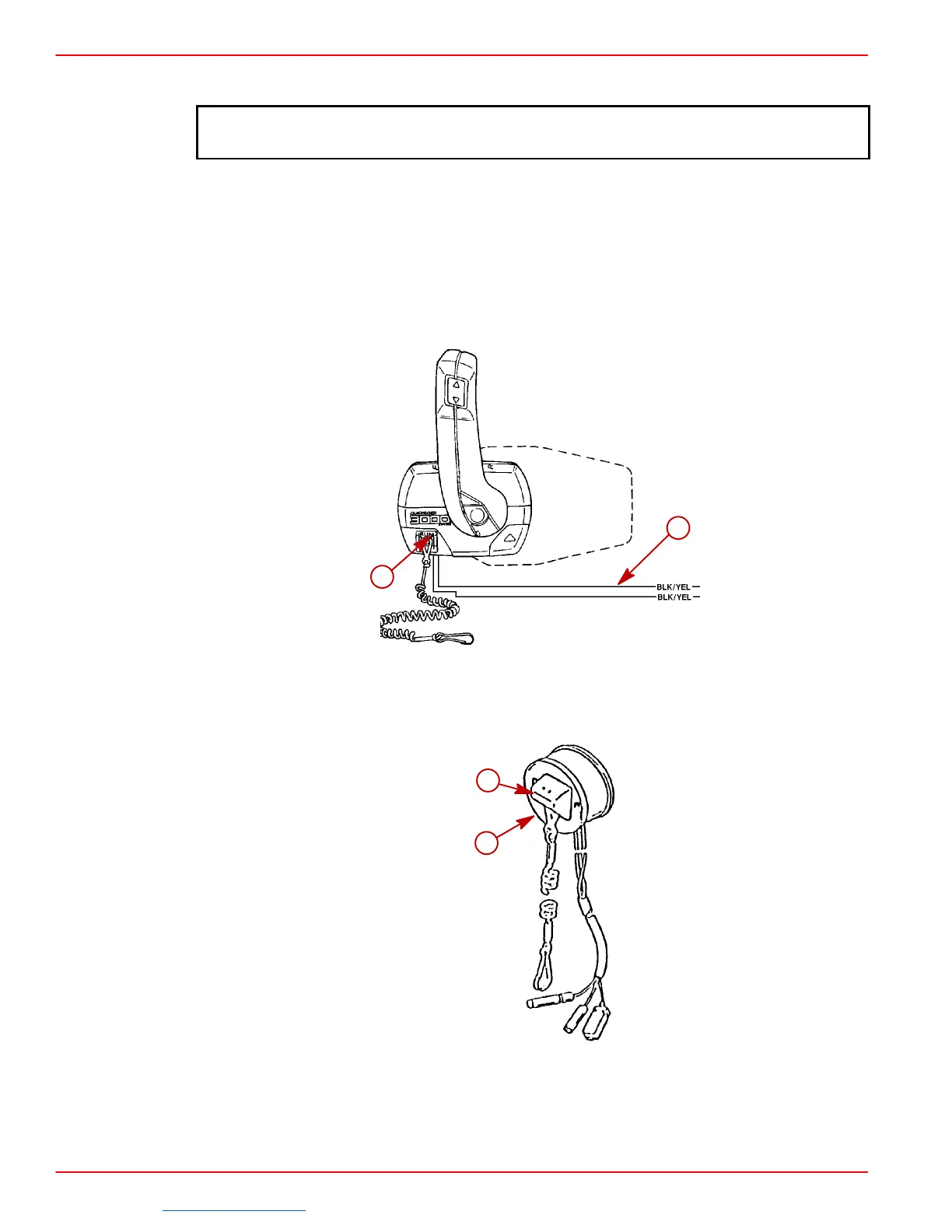

Remote Control Mounted Switch
a-Switch Lanyard
b-Leads (BLK/YEL)
72762
a
b
Panel Mounted Switch
a-Switch Cap
b-Switch
