MCM MODELS - BRAVO AND BLACKHAWK DRIVES
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2A-11

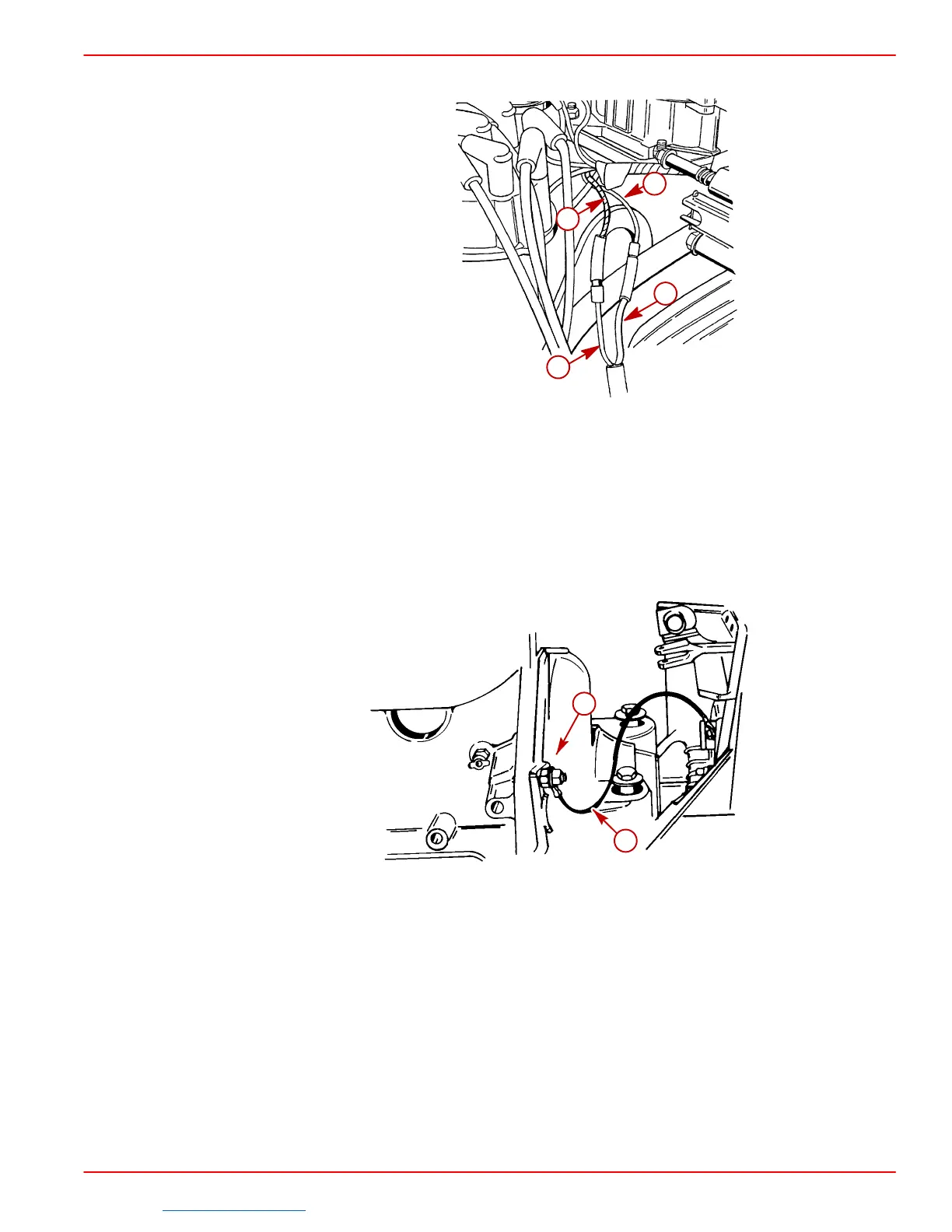

2. Connect trim position sender leads from gimbal housing to leads from engine harness.
72582
d
b
a
c
a-BROWN/WHITE (From Engine Harness)
b-BLACK (From Engine Harness)
c-BLACK (From Transom)
d-BLACK (From Transom Assembly)
IMPORTANT: Do not attach any accessory ground (–) wires to transom plate ground
point. Accessory ground wires should only be attached to ground stud on engine.
3. Connect continuity wire between transom plate and engine ground (–) stud.
71651
b
a
a-Continuity Wire
b-Engine Ground (-) Stud
4. Connect any grounding wires or accessories that may have been disconnected.
