Mercury MerCruiser MCM 454 Mag MPI

CHARGING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4C-27

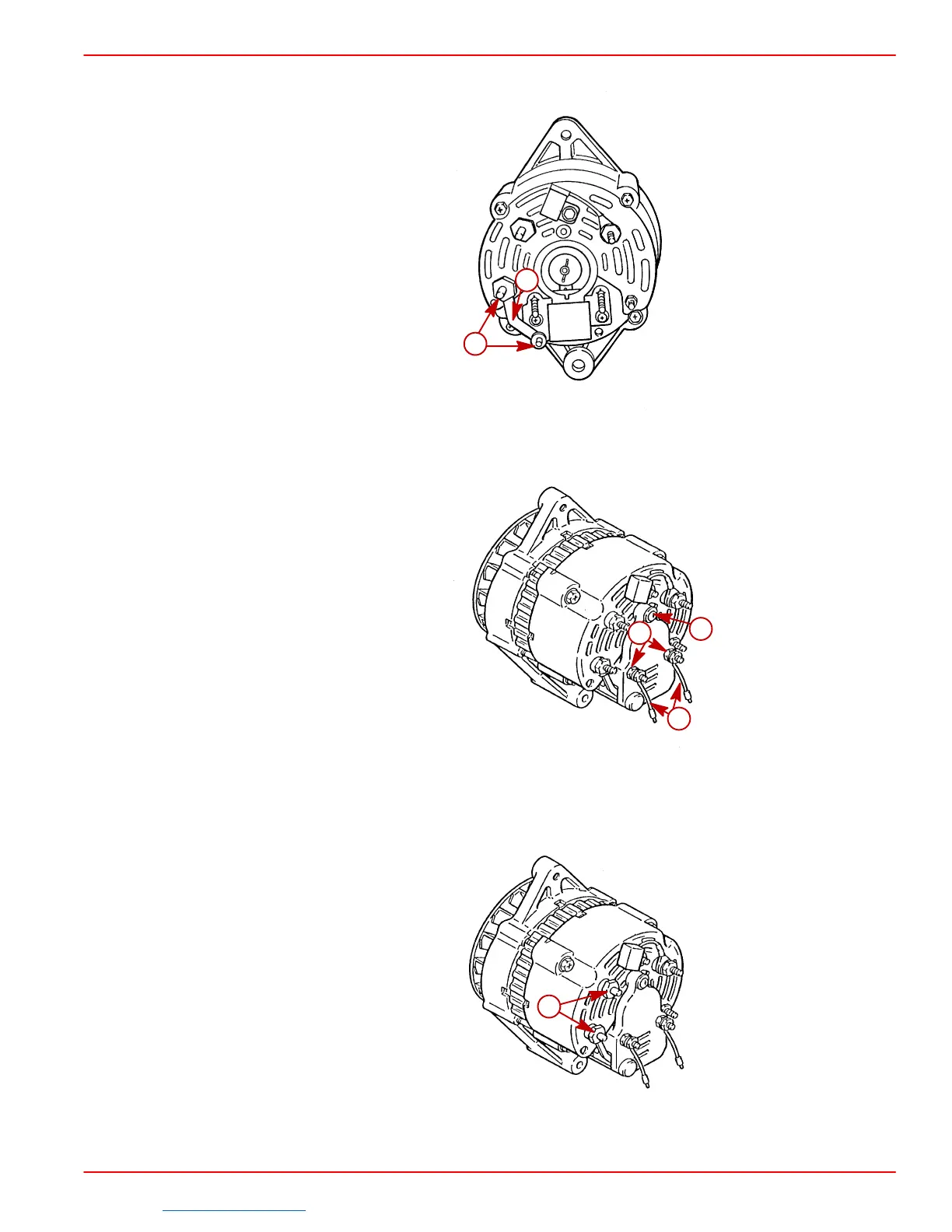

11. Install tie strap to rectifier stud and stud on brush/rectifier assembly. Tighten nuts
securely.
72823
b
a
a-Studs
b-Tie Straps
12. Install cover with one phillips head screw and two nuts. Install two leads with nuts.
72963
a
b
c
a-Phillips Head Screw
b-Nuts (4)
c-Leads
13. Install insulator caps.
72078
a
a-Insulator Caps
