MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5C-45

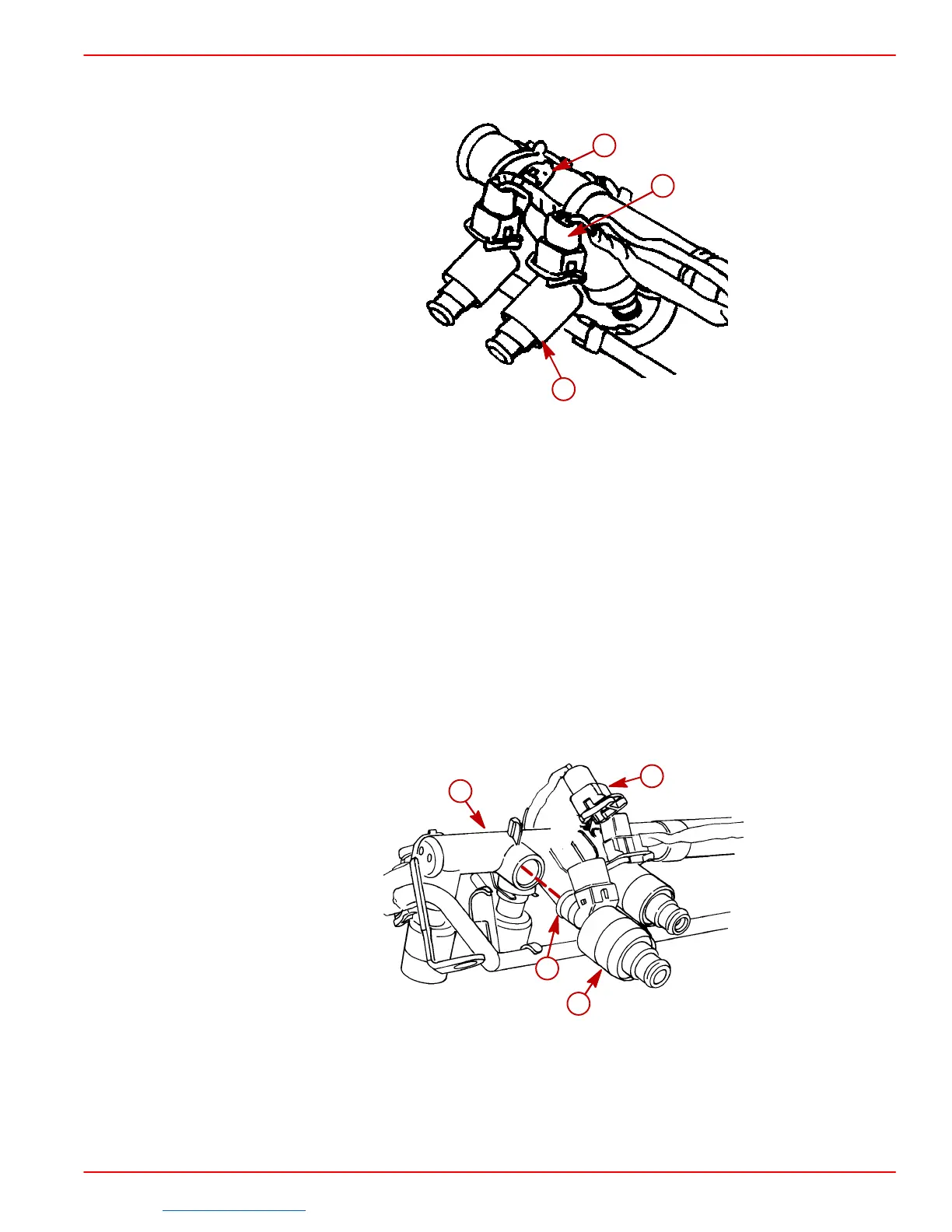

8. Remove the retainer clip from the fuel injector.
9. Remove the fuel injector from the fuel rail.
75614
a
b
c
a-Injector Harness
b-Fuel Injector
c-Retainer Clip
CLEANING AND INSPECTION
Inspect fuel injectors for damage; replace if necessary.
INSTALLATION
IMPORTANT: When replacing injectors, be certain to replace with the identical part
and part number. Other injectors may have the same appearance, yet have a different
part number and be calibrated for a different flow rate, and if installed, would cause
performance difficulty or damage to the ECM.
1. Lubricate the o-ring with a water/soap solution. Insert the fuel injector in the fuel rail.
75672
a
b
c
d
a-Fuel Rail
b-O-Ring
c-Fuel Injector
d-Injector Harness
