GENERAL SYSTEM DIAGNOSTICS SERVICE MANUAL NUMBER 23

Page 5E-18 90-861326--1 MARCH 1999

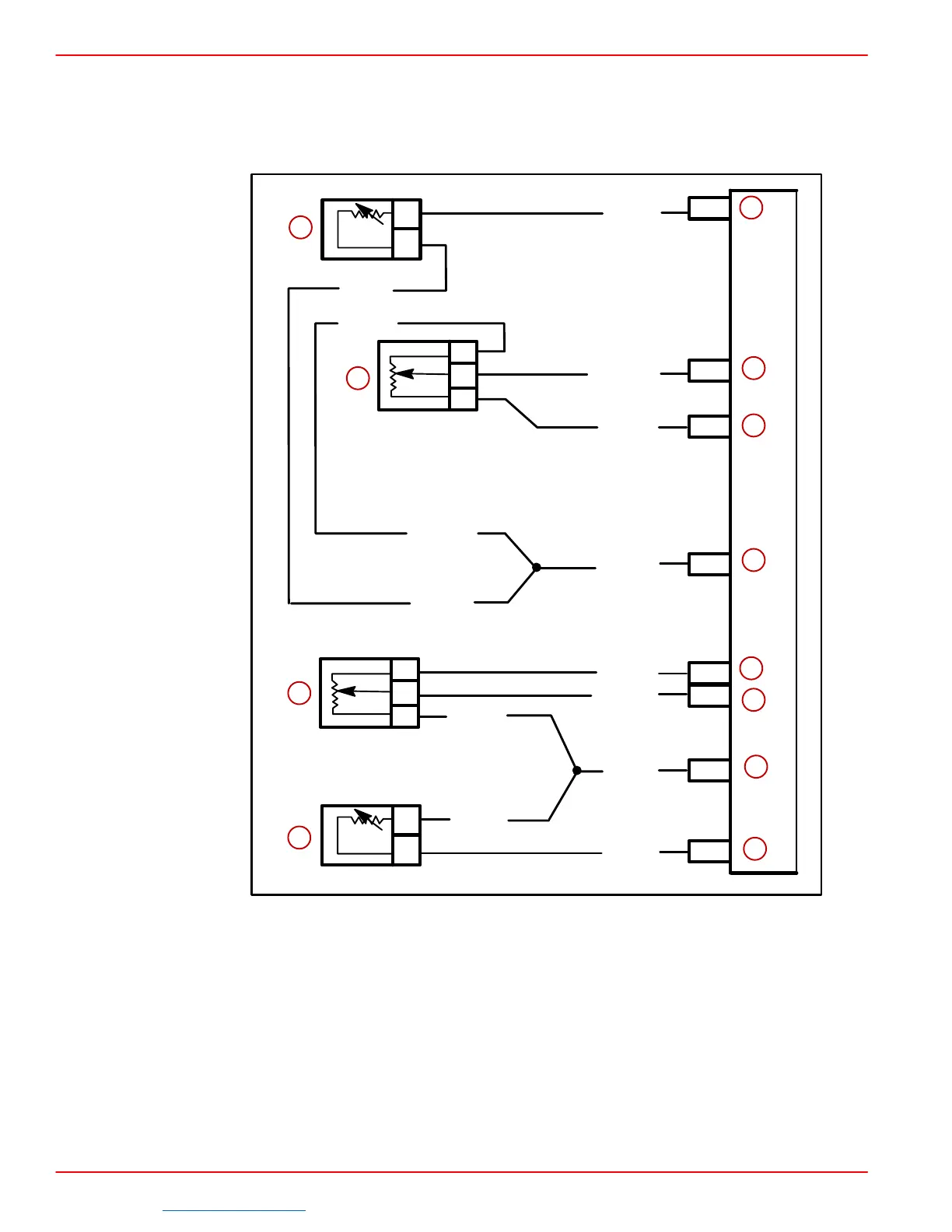

MEFI 1 - 454/502 Mag MPI and 8.2L MPI Wiring System

Diagram (2 of 4)

J1-24

J1-10

J1-15

J1-13

J1-31

J1-9

J1-29

J1-2

410 YEL

472 TAN

417 DK BLU

416 GRY

813 BLK

416 GRY

432 LT GRN

814 BLK

813 BLK

75604
