Mercury MerCruiser MCM 454 Mag MPI

To Next Page

To Previous Page

GENERAL SYSTEM DIAGNOSTICS SERVICE MANUAL NUMBER 23

Page 5E-46 90-861326--1 MARCH 1999

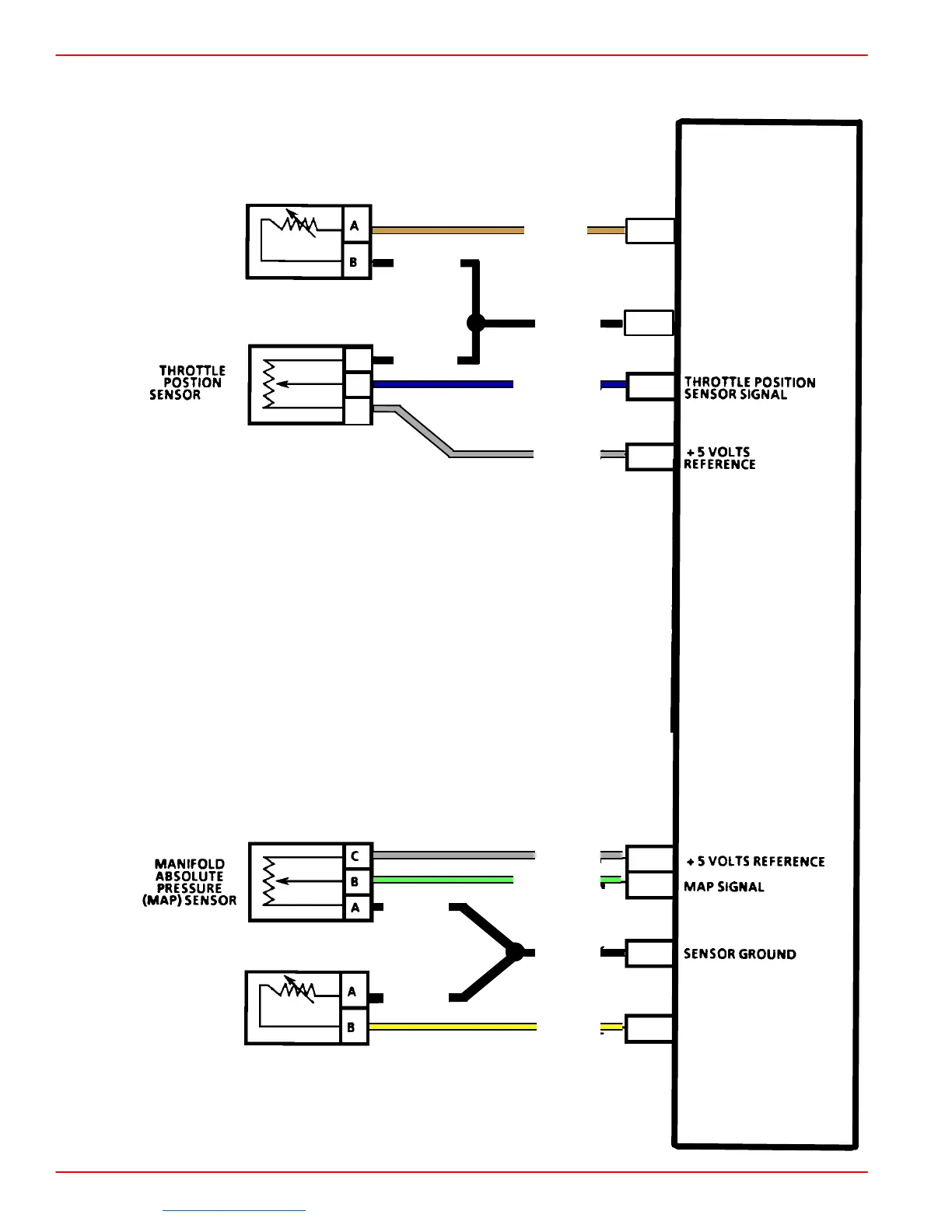

MEFI 3 - ECM Wiring PAGE 2 of 4

(TP)

INTAKE AIR

TEMPERATURE (IAT)

J2-26

J2-4

J2-3

76080

SENSOR GROUND

813 BLK

417 DK BLU

416 GRY

ENGINE COOLANT

TEMPERATURE (ECT)

ENGINE COOLANT

TEMPERATURE (ECT)

SENSOR SIGNAL

J2-19

J2-27

J2-18

J2-11

416 GRY

432 LT GRN

814 BLK

410 YEL

INTAKE AIR TEMPERATURE

(IAT) SENSOR SIGNAL

J2-30

813 BLK

472 TAN

ECM
