MAINTENANCE

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 1B-49

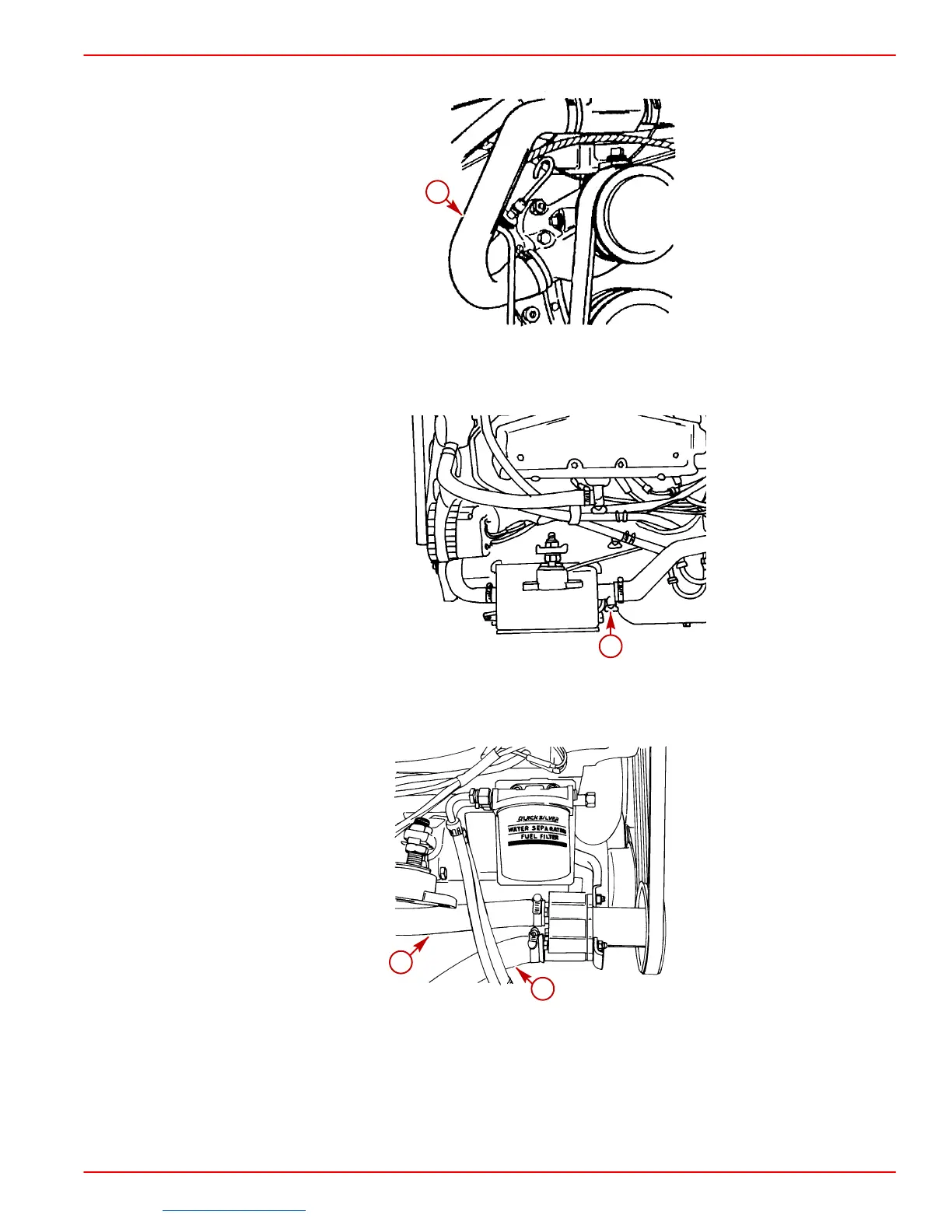

6. Remove the engine water circulating pump hose as shown.

72587

a-Hose, Water Circulating Pump To Thermostat Housing

7. Remove the drain plug from the fuel cooler.

75081

a-Drain Plug

8. Remove both hoses from seawater pump.

75533

a-Seawater Inlet Hose

b-Hose To Cooler
