VELVET DRIVE 5000V V-DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8C-9
17. Install nut and washer to cable barrel stud. Tighten until they contact. Tighten securely,
but DO NOT OVER-TIGHTEN.
71972
g
71780
a
b
c
e
f
d
g
h
d
c
b
a
h
g
f
e
b
d
b
h

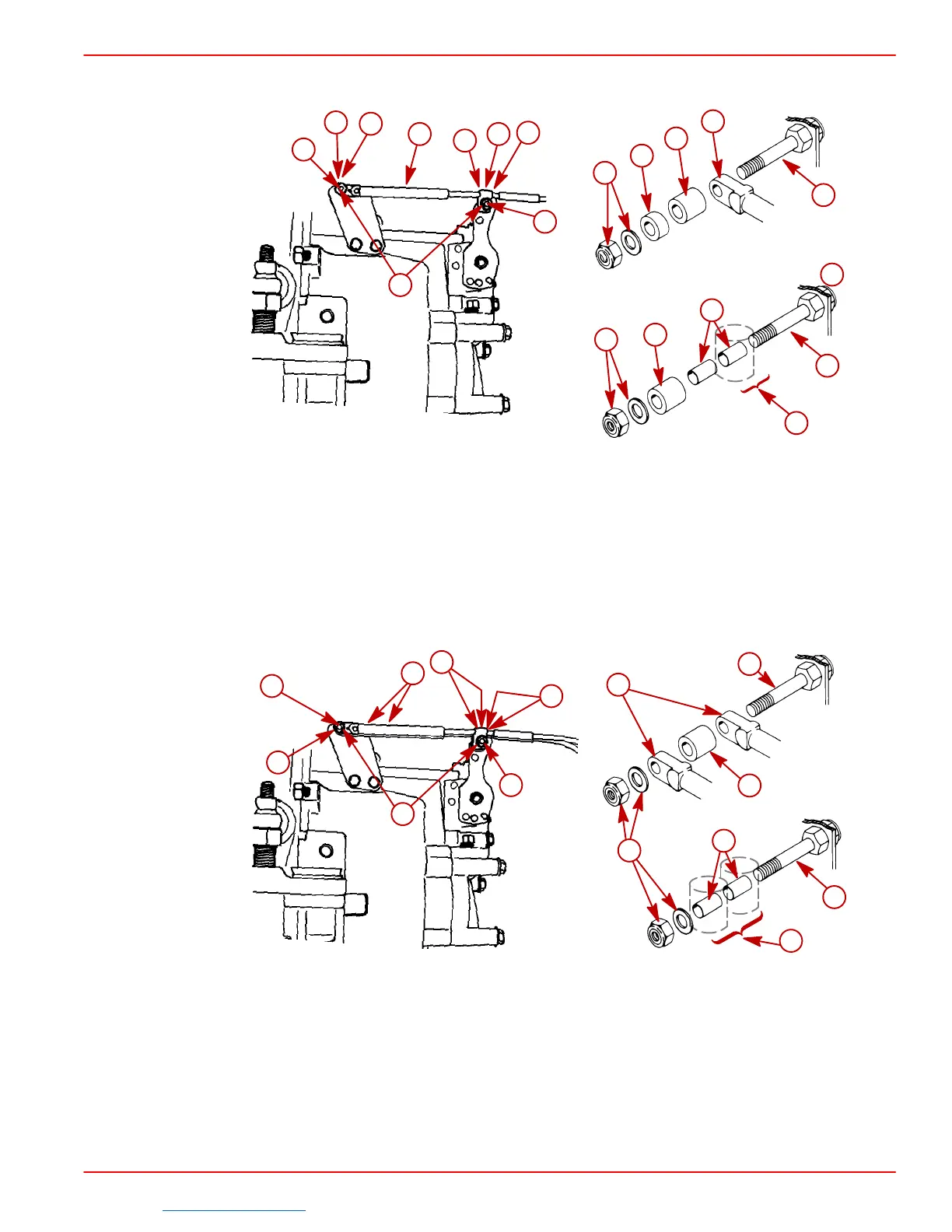

Typical Single Cable - Rear Approach
a-Cable End Guide
b-Thick Spacer
c-Thin Spacer
d-Elastic Stop Nut and Washer
e-Cable Barrel (Position Only Indicated In Lower Drawing)
f-Bushing(s)
g-Cable Barrel Stud
h-Cable End Guide Stud
71897
b
a
e
d
c
g
f
50073
a
b
c
d
e
f
g
Typical Dual Cable Installation - Rear Approach
a-Cable End Guide
b-Thick Spacer
c-Thin Spacer
d-Elastic Stop Nut and Washer
e-Cable Barrel (Position Only Indicated In Lower Drawing)
f-Bushing(s)
g-Cable Barrel Stud
h-Cable End Guide Stud
