Chapter 2: Motherboard Installation

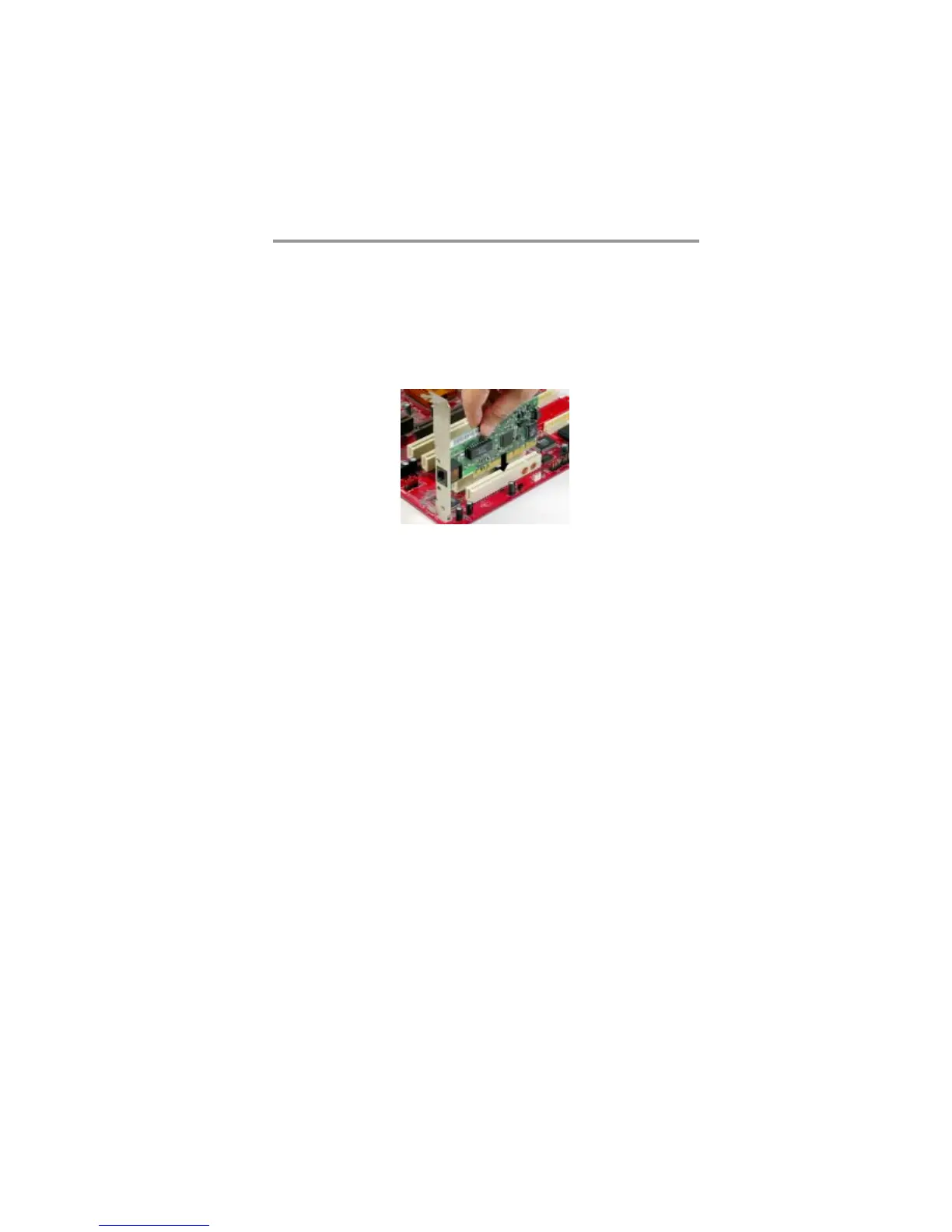

Follow the steps below to install an CNR/AGP Ultra/PCI expansion card.
1 Locate the CNR, AGPro and PCI slots on the motherboard.
2 Remove the blanking plate of the slot from the system chassis.
3 Install the edge connector of the expansion card into the slot. Ensure
the edge connector is correctly seated in the slot.
4 Secure the metal bracket of the card to the system chassis with a
screw.
AGP Ultra Slot (AGP ULTRA)
The AGP Ultra slot is used to install AGP graphics card that emulates the AGP
function. In order to get better performance and compatibility on our special
design AGP Ultra slot, we recommend you should use one of the AGP graphics
cards that have been tested by our company. Please refer to the “VGA Card
Support List for AGP Ultra Slot”on page 20.
