WIRING AND BATTERY INFORMATION
9
Battery Connection
!
CAUTION
Disconnecting or connecting the battery cables in the incorrect order
can cause injury from electrical shock or can damage the electrical
system. Always disconnect the negative (‑) battery cable first and
connect it last.

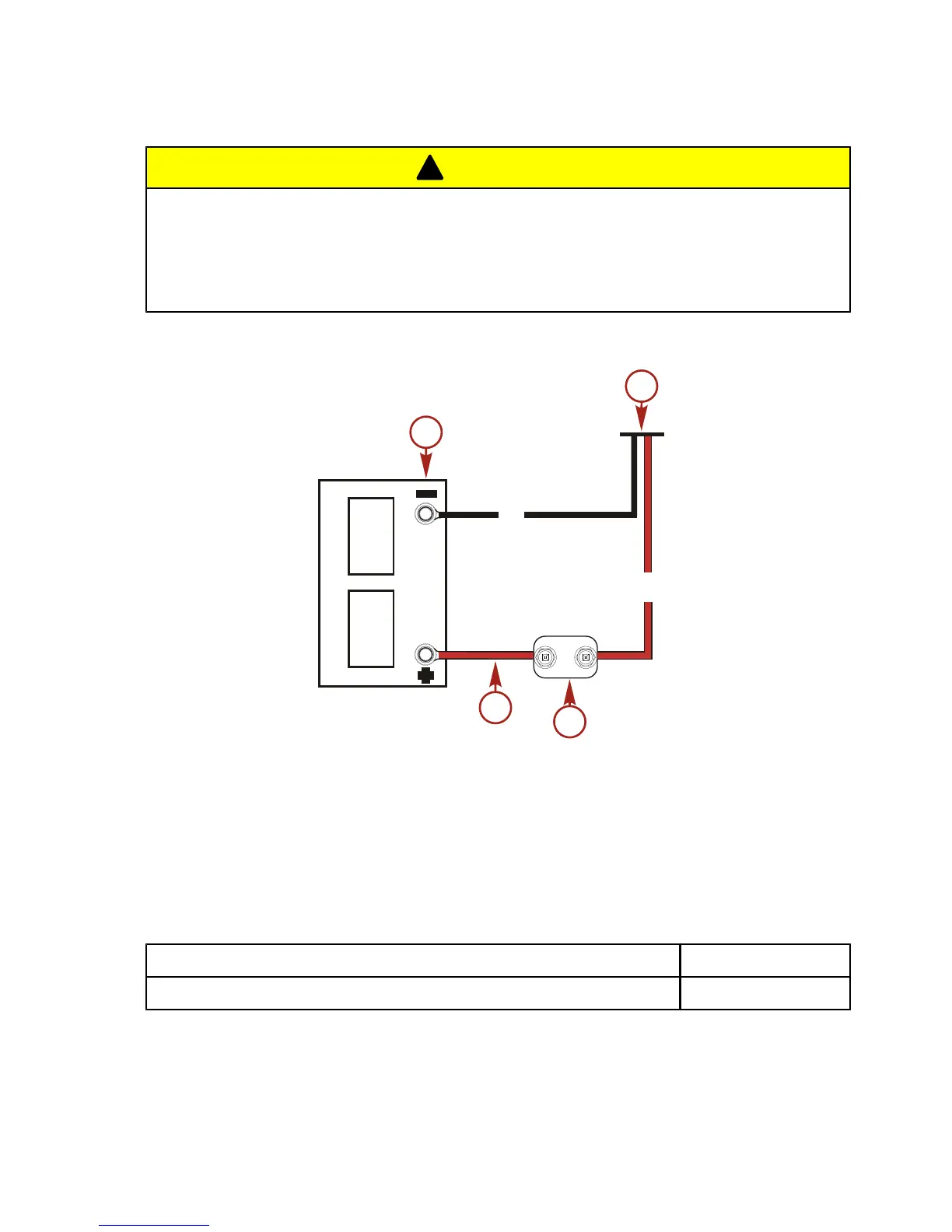

12-VOLT BATTERY CONNECTION
a - Power cable
b - 50 A circuit breaker
c - Jumper wire
d - Common ground
Connect the red battery lead from the power cable to the positive (+)
battery post. Connect the black battery lead from the power cable to the
negative (–) battery post.
Install a 50 A circuit breaker in line with the positive lead.
Recommended MotorGuide Accessory Description Part Number
50 A Manual Reset Breaker MM5870
