TROLLING MOTOR INSTALLATION AND OPERATION
14

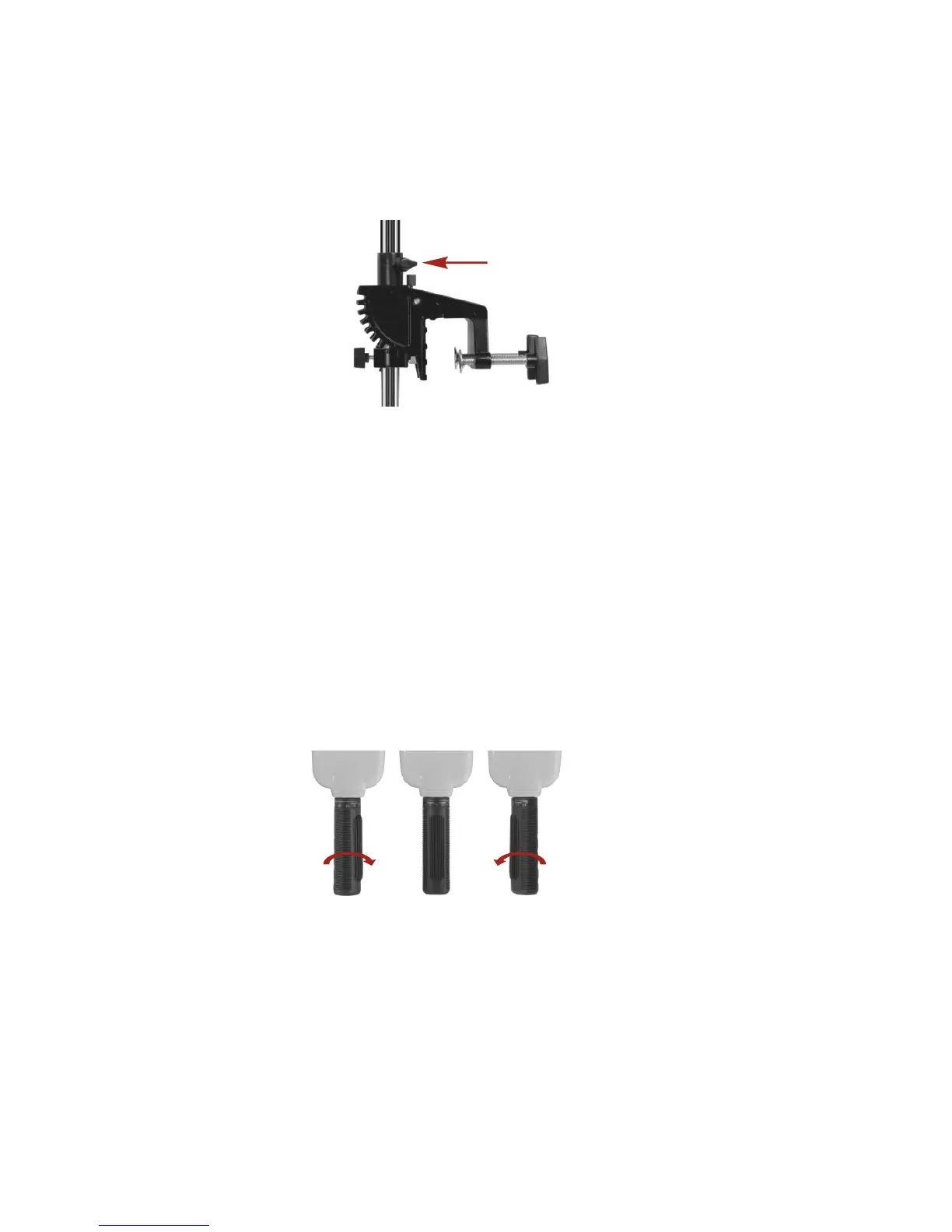

Firmly grasp the column with one hand while turning the depth collar
adjustment knob clockwise until the motor column slides freely. To
secure the column in the desired depth position, turn the depth collar
adjustment knob counterclockwise and then tighten securely.
Depth collar adjustment knob
IMPORTANT:
When adjusting the motor depth, ensure the lower unit
is submerged 25 cm (9.8 in.) to avoid choppy water or propeller
cavitation.
Speed Control
Adjust the speed control (five forward speeds and two reverse
speeds) to the desired direction and thrust level.
Rotate the twist‑tiller handle clockwise for forward movement and
counterclockwise for reverse movement. The neutral handle position
stops the motor.
