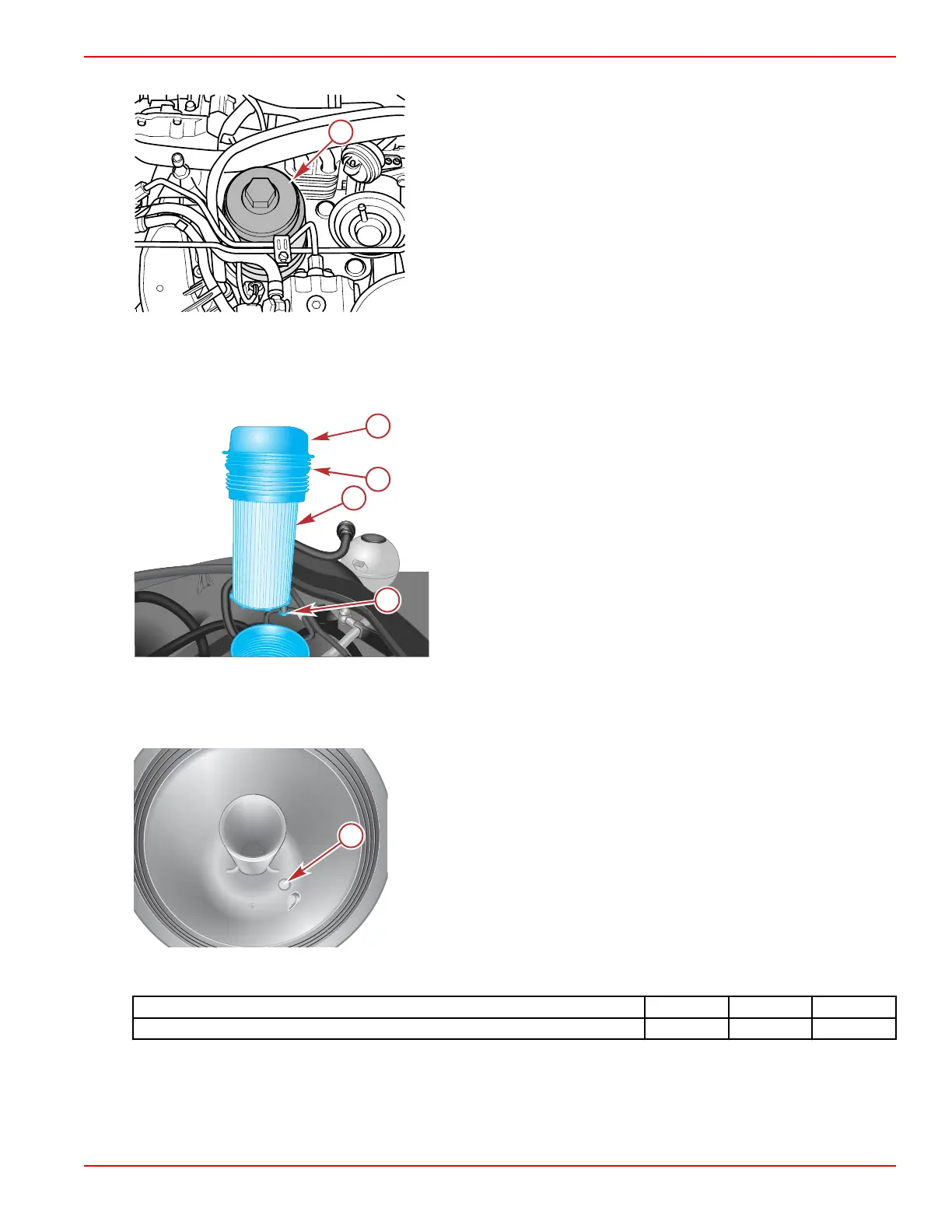

2. Remove the cover of the oil filter so that the return valve opens, allowing the oil to return to the oil sump.
a - Oil filter cover
3. Separate the oil filter element from the oil filter cover.
4. Clean the cover with a clean cloth.
5. Replace the sealing O‑rings.
6. Apply clean oil to the new sealing O‑rings.
a - Filter cover
b - O‑ring
c - Oil filter element
d - Pin with O‑ring
7. Install the new oil filter element into the filter housing.
IMPORTANT: When installing the oil filter element, ensure that the pin on the lower end of the filter element is aligned with
the hole in the housing.
a - Hole
8. Install the cover onto the filter element. Tighten the cover to the specified torque.
Description
Nm lb‑in. lb‑ft
Oil filter element cover 35 – 25.8
9. Clean up any spilled oil and dispose of as directed by local authorities.
10. Remove the oil fill cap and add the required amount of oil to the engine.
IMPORTANT: When adding oil to the engine, always use the dipstick to determine how much oil is required.
Section 4 - Maintenance
90-8M0133568 eng JUNE 2017 Page 37
