EPA Mode Number
Cycle 5
DUTY CYCLE
MODES
1 2 3 4 5
Engine speed (percent of WOT) 100 91 80 63 Idle
Engine power (percent of total) 100 75 50 25 0
Time at given mode
(percent of total operating time)
8 13 17 32 30

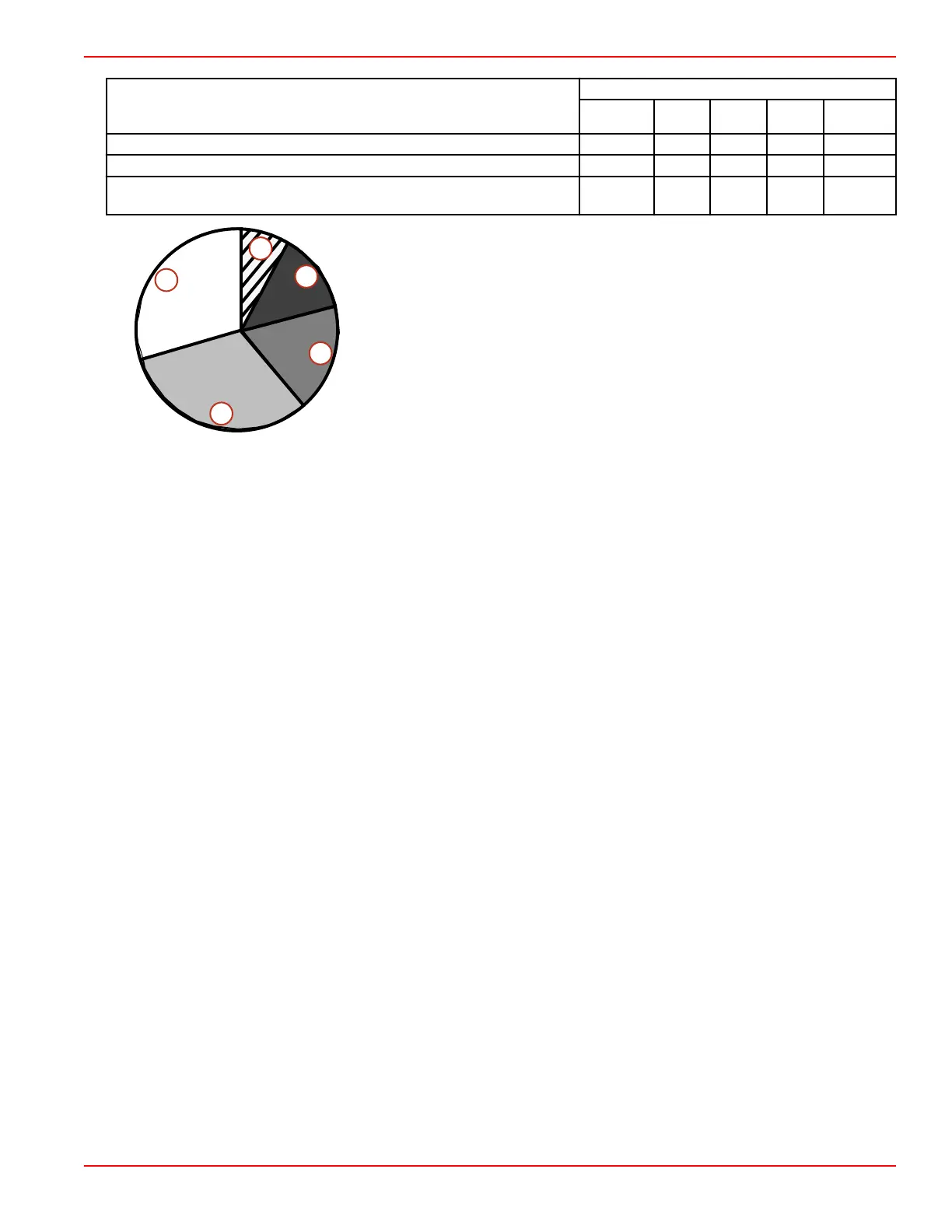

Chart showing full power operation is limited to a maximum of 1 of 12 hours
1 - Mode 1: 1.0 hour (8%)
2 - Mode 2: 1.5 hours (13%)
3 - Mode 3: 2.0 hours (17%)
4 - Mode 4: 4.0 hours (32%)
5 - Mode 5: 3.5 hours (30%)
1
2
3
4
5
14584
