4. Slide the propeller and the attaching hardware from the propeller shaft.

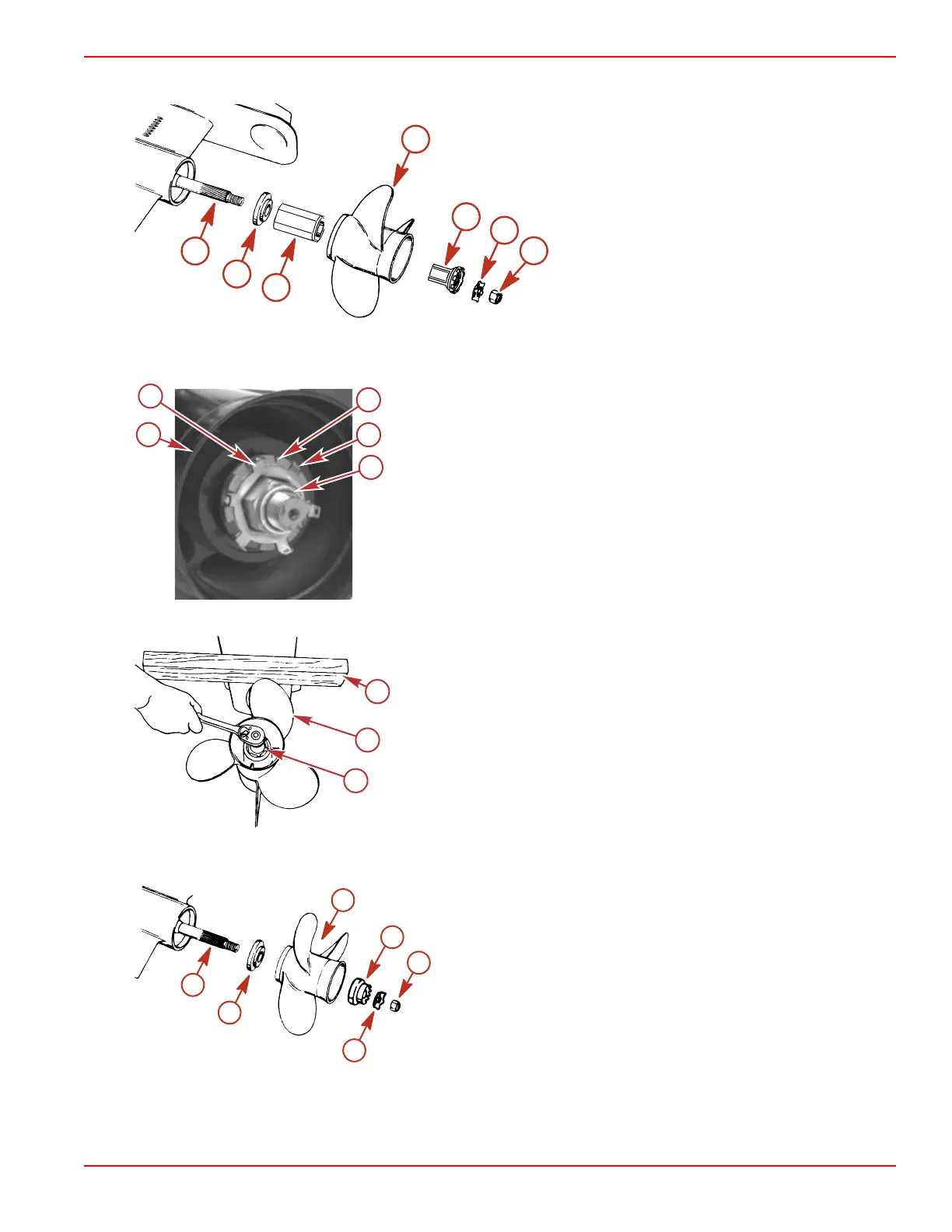

Bravo One models
a - Propeller shaft splines
b - Forward thrust hub
c - Flo‑Torque II drive hub
d - Propeller
e - Drive sleeve adapter
f - Tab washer
g - Propeller nut
Bravo Two Models
1. Straighten the bent tabs of the tab washer on the propeller shaft.
a - Propeller
b - Tab washer
c - Drive sleeve adapter
d - Tab bent down
e - Propeller nut
2. Place a block of wood between the propeller blade and the sterndrive's anti‑ventilation plate.
a - Wood block
b - Propeller
c - Propeller nut under socket
3. Turn the propeller shaft nut counterclockwise to remove the nut.
4. Slide the propeller and attaching hardware from the propeller shaft.
Bravo Two
a - Propeller shaft splines
b - Forward thrust hub
c - Propeller
d - Spline washer
e - Tab washer
f - Propeller nut
Bravo Three Models
1. Place a block of wood between the propeller blade and the sterndrive's anti‑ventilation plate.
2. Remove the bolt and washers securing the propeller shaft anode.
a
b
c
d
e
f
g
5301
a
b
c
d
e
4750
a
b
4826
c
8566
a
b
c
f
d
e
Section 4 - Maintenance
90-8M0145546 eng MAY 2018 Page 79
