3. Remove the propeller shaft anode.
a - Propeller
b - Propeller shaft nut
c - Propeller shaft anode
d - Propeller shaft anode screw
e - Flat washer
f - Star washer
4. Turn the aft propeller shaft nut counterclockwise to remove the nut.
5. Slide the propeller and thrust hub off of the propeller shaft.
6. Using the propeller nut tool, turn the front propeller shaft nut counterclockwise and remove the nut.
Propeller Nut Tool 91‑805457T 1
Aids in the removal and installation of the front propeller nut.
7. Slide the propeller and the thrust hub off the propeller shaft.

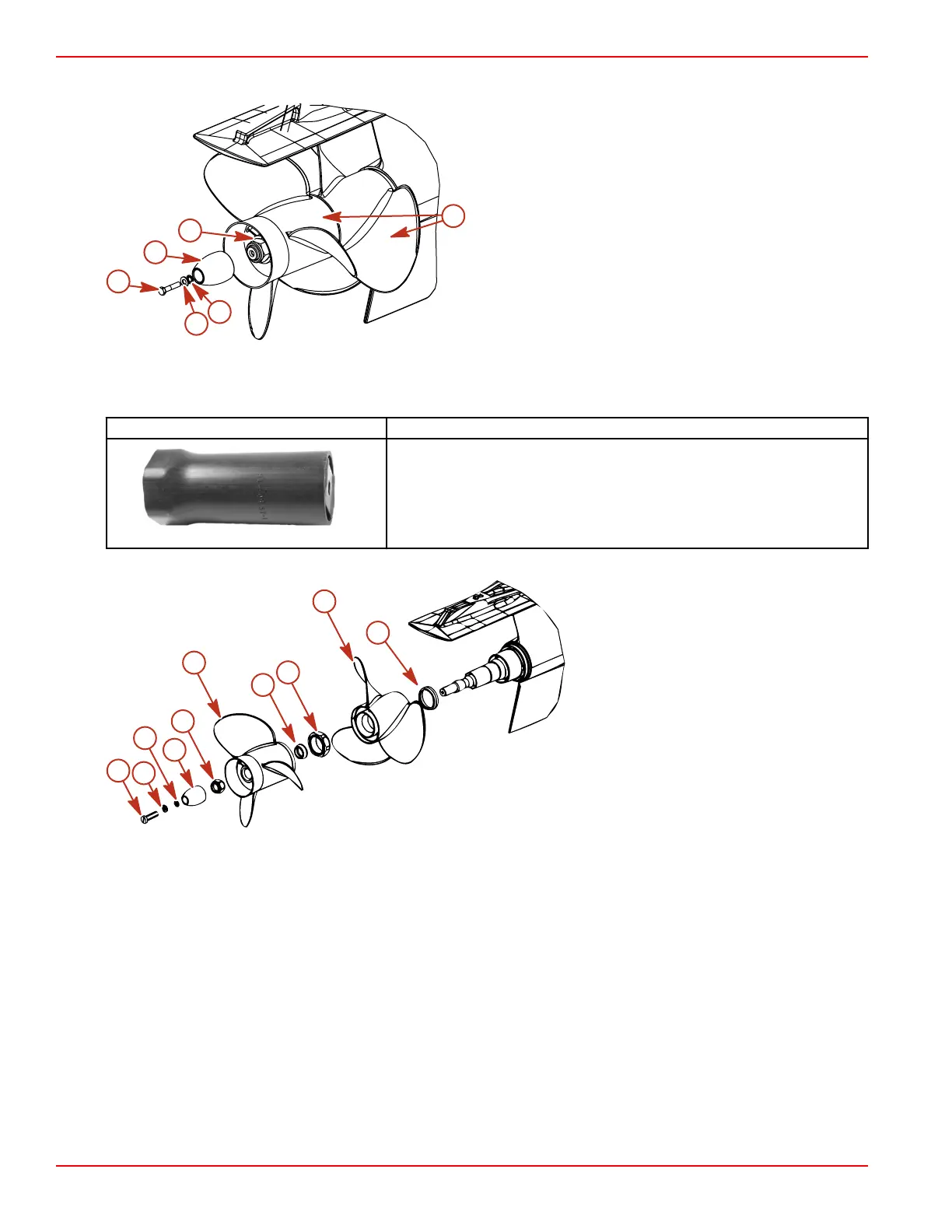

Bravo Three
a - Aft propeller nut
b - Aft propeller
c - Aft propeller thrust hub
d - Front propeller nut
e - Front propeller
f - Front propeller thrust hub
g - Propeller shaft anode screw
h - Flat washer
i - Star washer
j - Propeller shaft anode
e
f
a
b
c
d
5304
g
h
i
j
Section 4 - Maintenance
Page 80 90-8M0145546 eng MAY 2018
