Mercury TDI 3.0L - Lubrication

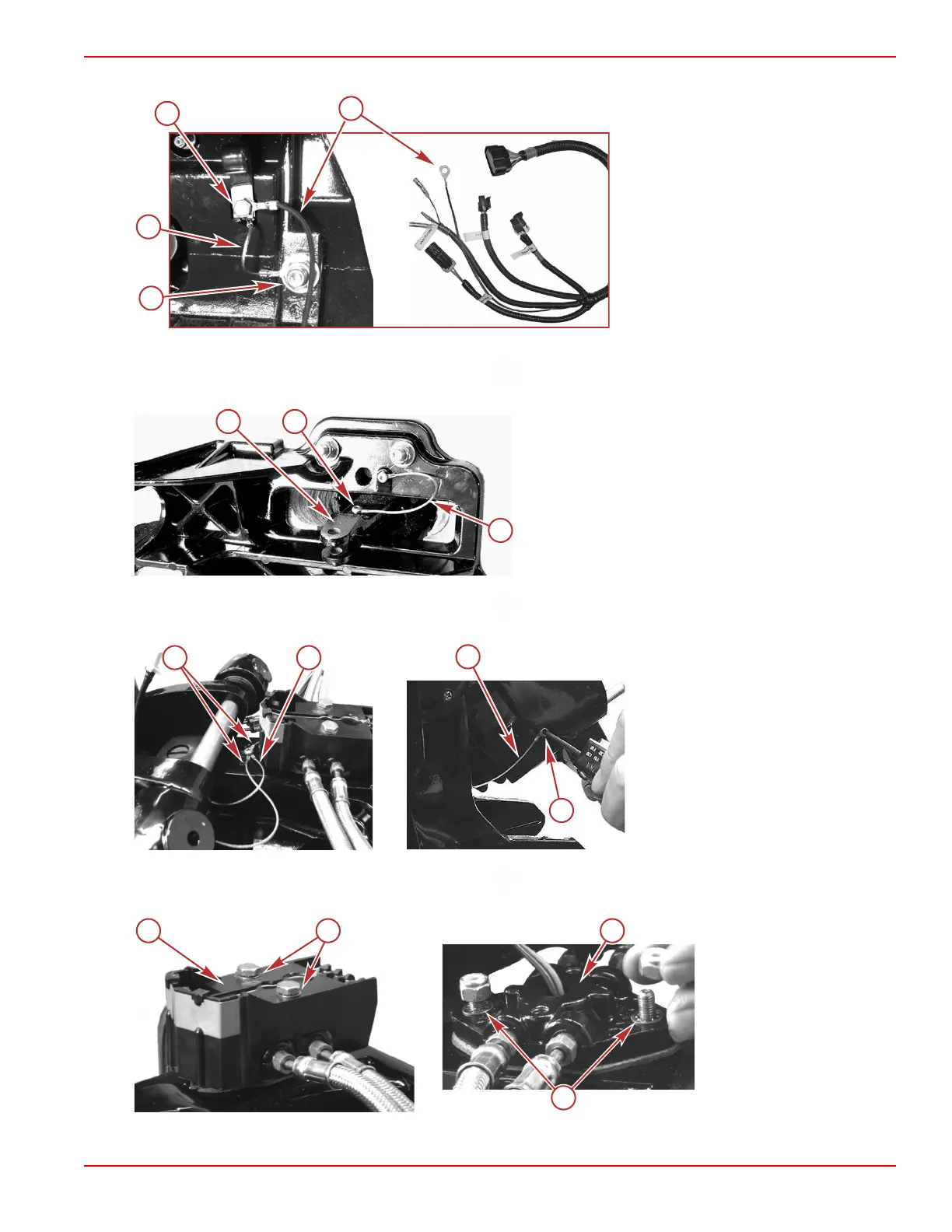

Models equipped with a transom harness must connect its ground wire to the grounding screw on the gimbal housing.
a - Gimbal housing grounding screw
b - Transom harness ground wire to
engine harness
c - Transom plate grounding stud and nut
d - Grounding wire gimbal housing to
transom plate
a - Steering lever
b - Torx® screw
c - Continuity wire
Bravo model shown
a - Trim‑cylinder‑to‑gimbal‑ring
ground wire (2)
b - Gimbal‑housing‑to‑gimbal‑ring
ground wire
c - Gimbal‑ring‑to‑bell‑housing
ground wire
d - Screw
a - MerCathode
b - Continuity washers
c - Hydraulic manifold
37462
a
d
b
b
c
a
b
c
50215
b
a
c
d
50216
b
a
50217
b
c
Section 4 - Maintenance
90-8M0145546 eng MAY 2018 Page 65
