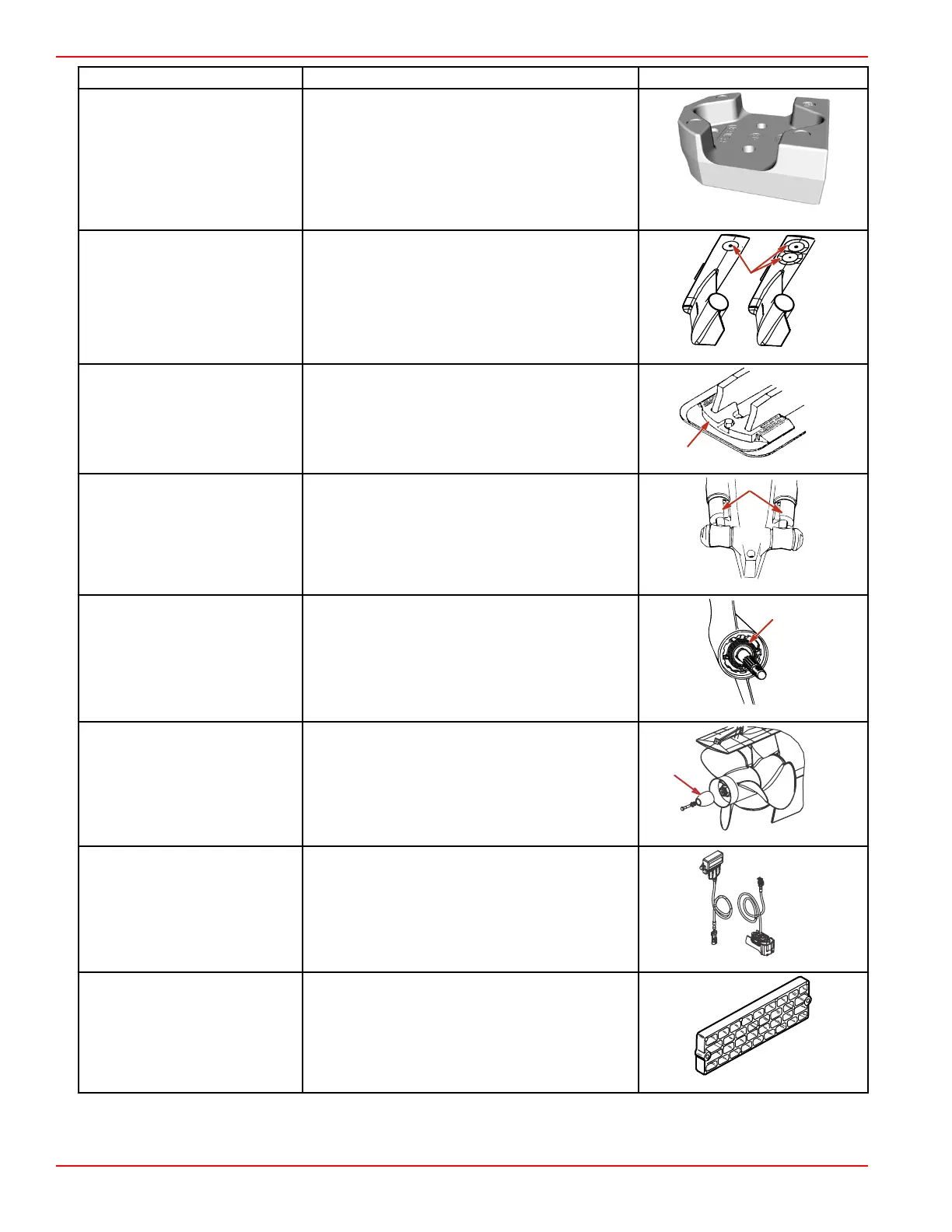

Description Location Figure
Alpha sterndrive
gimbal housing anode
Mounted on the underside of the gimbal housing.
Bravo sterndrive
gearcase anode plate
Mounted on the underside of the lower gearcase.
20336
Alpha and Bravo sterndrive
ventilation plate anode
Mounted on the front of the gearcase.
20338
Alpha and Bravo sterndrive
trim cylinder anodes
Mounted on each of the trim cylinders.
20342
Alpha and Bravo sterndrive
bearing carrier anode
Located in front of the propeller, between the front
side of the propeller and the gear housing.
20343
Propshaft anode (Bravo Three) Located behind the aft propeller.
MerCathode System
The MerCathode electrode, if equipped, is mounted
to the underside of the gimbal housing. The
MerCathode controller is mounted on the engine or
on the boat transom. The controller harness
connects to the electrode harness.
Anode kit (if equipped) Mounted to the boat transom.
20341
In addition to the corrosion protection devices, take the following steps to inhibit corrosion:
Section 4 - Maintenance
Page 70 90-8M0145546 eng MAY 2018
