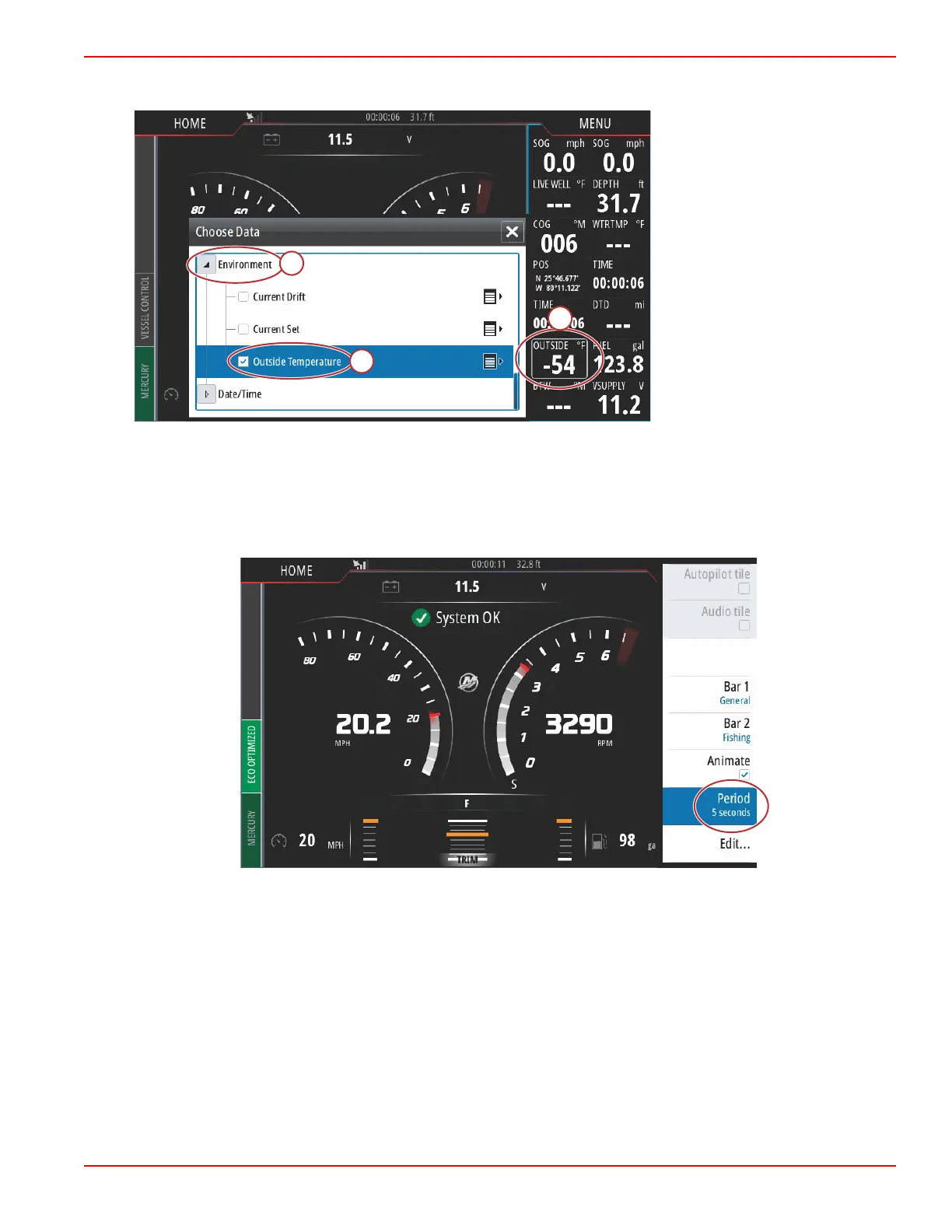

A select and drop‑down menu screen will appear. Select the entry that corresponds to the type of data that you wish to
populate the selected data tile in the Instrument bar.
a - Actively selected data tile
b - Entry and type of data to
replace actively selected data
tile
Use this procedure to complete the customization of the instrument bar.
When both instrument bars are active on the screen, the main display will appear smaller. To lessen the size of the instrument
bar, the operator can select the Animate option. This will return the instrument bar to one column of displayed data while
cycling between the two operator defined Bar 1 and Bar 2 selections. When the Animate option is selected, a keypad window
will appear. An Animation period duration can be set for up to 10 seconds between data cycling. Use the keypad to enter a
preferred duration in seconds. When finished entering a value on the keypad, select OK to return to the main screen.
