Section 2 - Initial Screens and Setup Wizard
90-8M0109374 eng JUNE 2016 Page 47

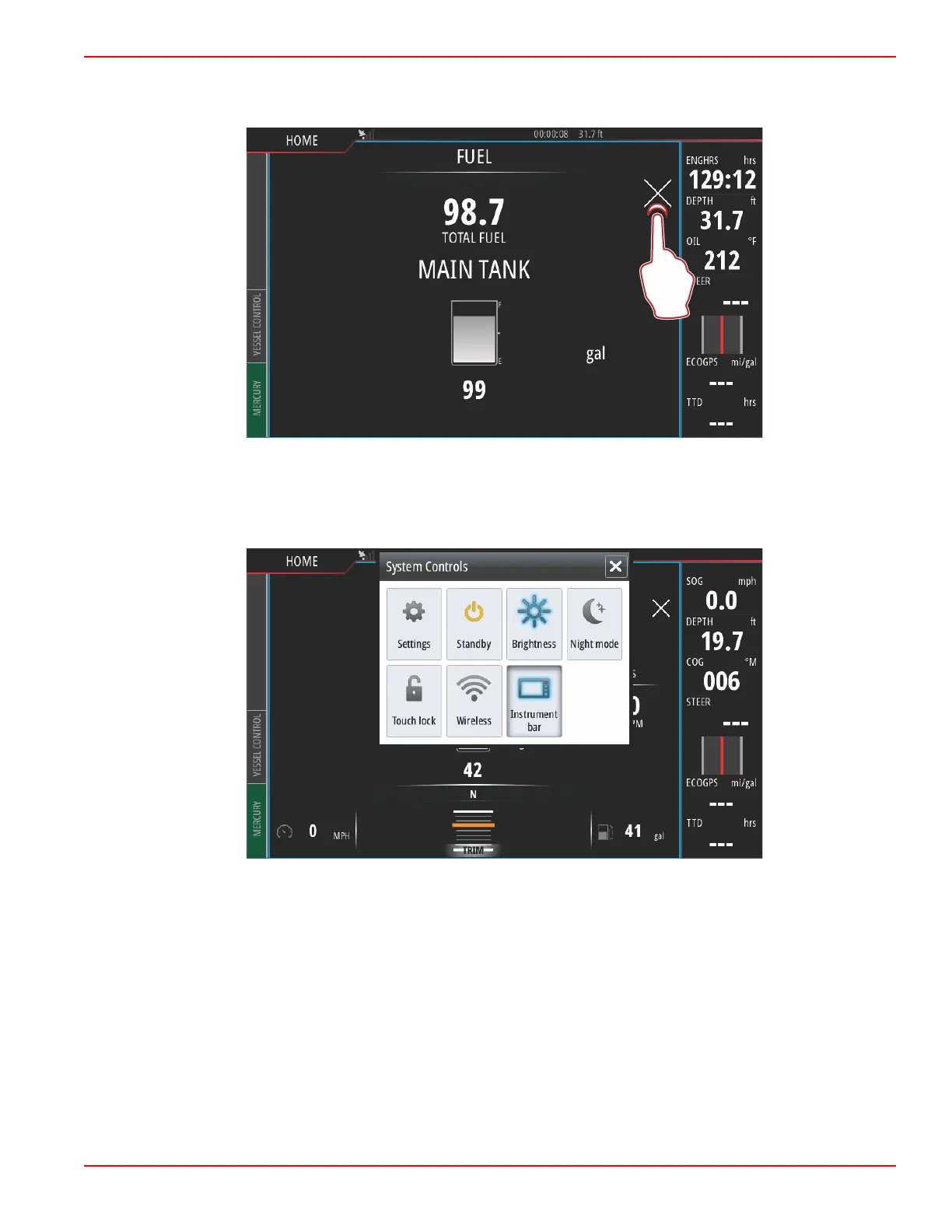

Selecting the data info field once more will display the selected data full screen. This can be helpful for viewing the screen from
a greater distance, such as navigating from an auxiliary joystick position. Selecting the X will return the VesselView to the main
navigation screen.
Instrument Bar
To activate the Instrument bar, swipe from the top of the display screen into the top of the screen area. This will bring up the
System Controls window. Select the Instrument bar tile to activate the Instrument bar.
