Mercusys MR80X User Manual

08
Chapter 4 Congure the Router in Wireless Router Mode
4. 2. Network
4. 2. 1. Status
1. Visit http://mwlogin.net, and log in with password you set for the router.

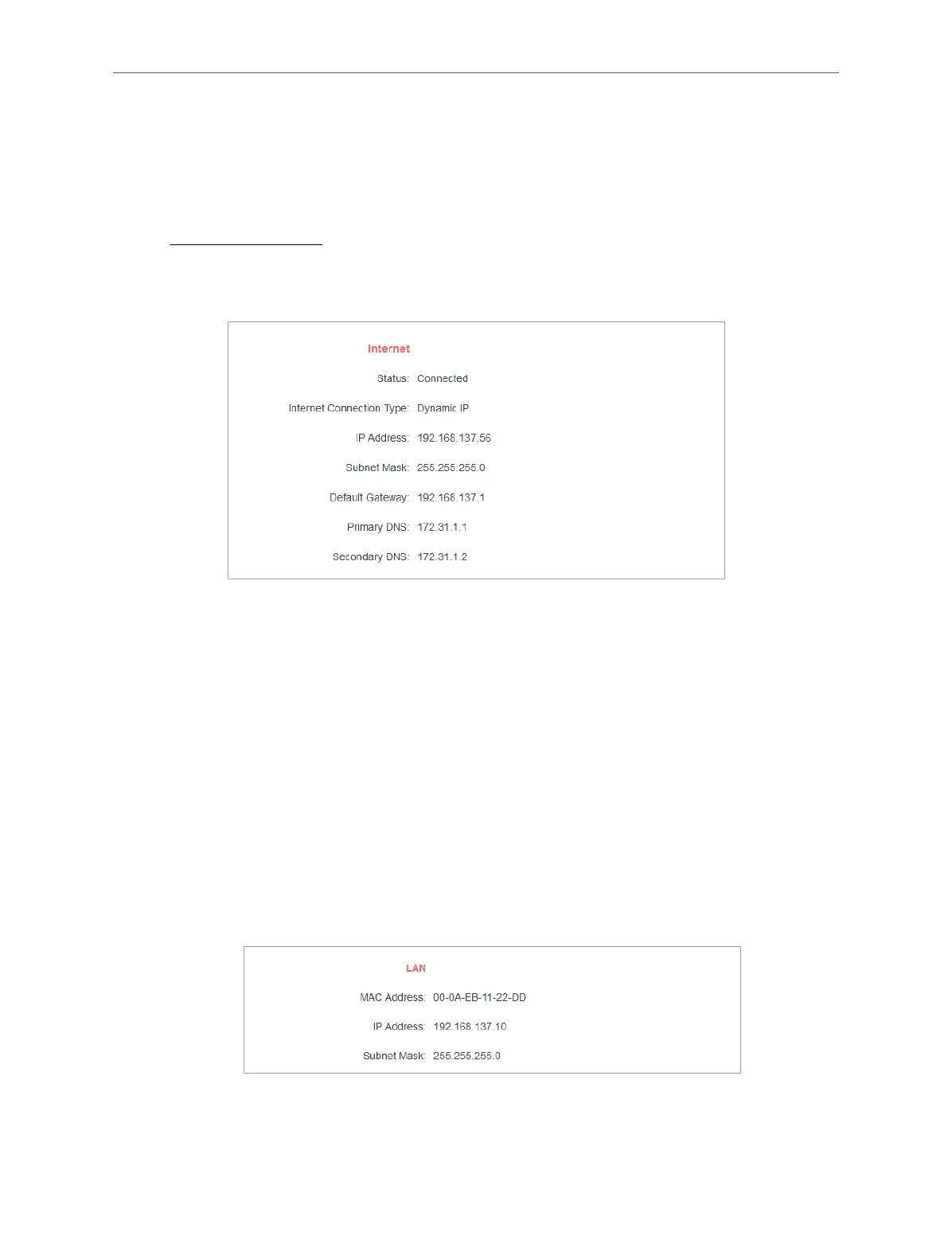

2. Go to Advanced > Network > Status. You can view the current status information of the
router.
• Internet - This field displays the current settings of the internet, and you can configure
them on the Advanced > Network > Internet page.
• Status - Indicates whether the router has been connected to the internet.
• Internet Connection Type - Indicates the way in which your router is connected to
the internet.
• IP Address - The WAN IP address of the router.
• Subnet Mask - The subnet mask associated with the WAN IP address.
• Default Gateway - The Gateway currently used is shown here. When you use
Dynamic IP as the internet connection type, click Renew or Release here to obtain
new IP parameters dynamically from the ISP or release them.
• Primary & Secondary DNS - The IP addresses of DNS (Domain Name System)
server.
• LAN - This field displays the current settings of the LAN, and you can configure them on
the Advanced > Network > LAN page.
• MAC Address - The physical address of the router.

Mercusys MR80X Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
Working Modes	Router Mode, Access Point Mode
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Maximum Speed	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Ports	1 x Gigabit WAN port, 3 x Gigabit LAN ports
Antenna	4 external antennas
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WiFi Speeds	2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Security	WPA3, WPA2, WPA
DHCP	Server, DHCP Client List
Guest Network	Yes
VPN Server	OpenVPN, PPTP
Dimensions	208 × 171 × 41 mm
