Mercusys MR80X User Manual

19
Chapter 4 Congure the Router in Wireless Router Mode

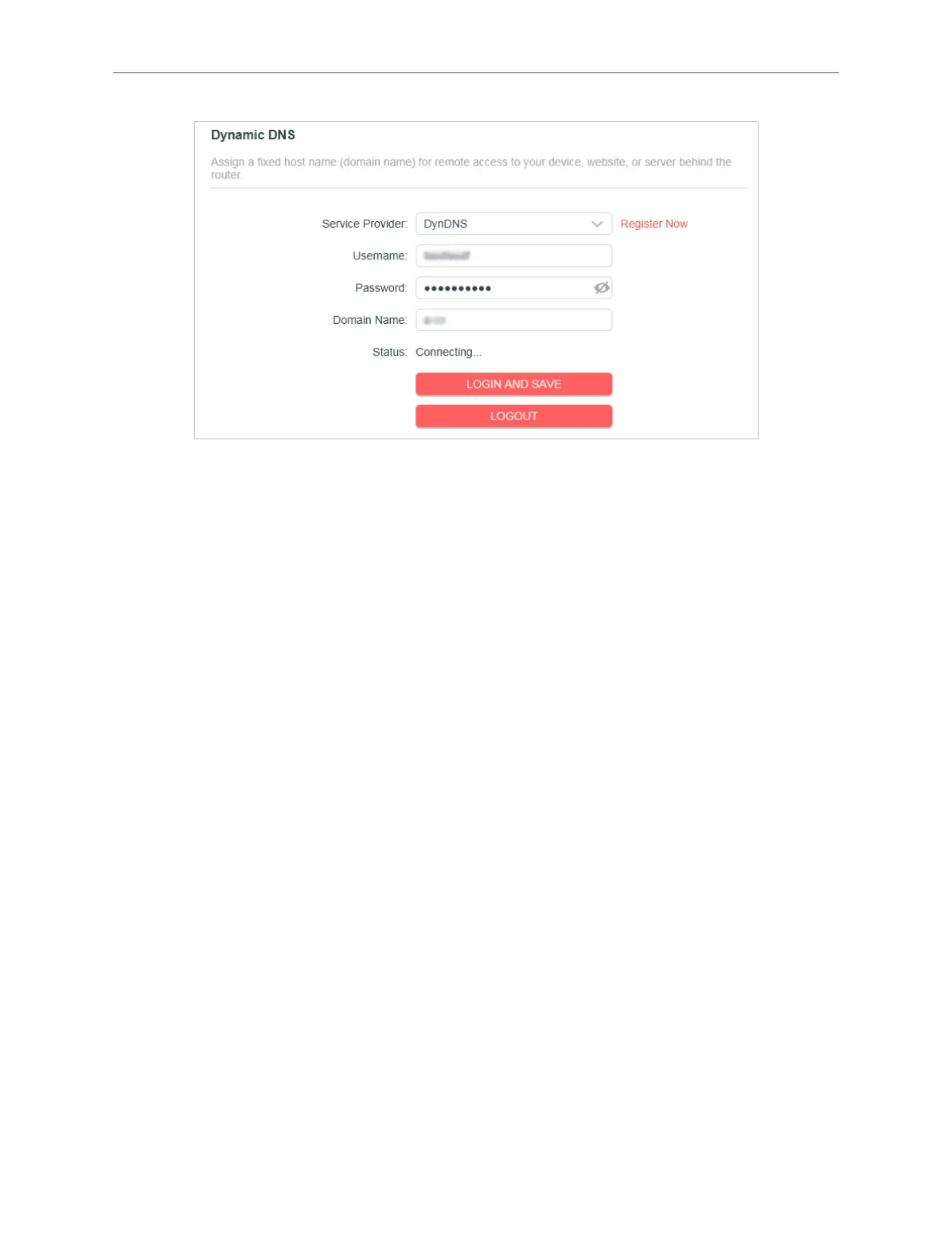

4. Enter the Username for your DDNS account.
5. Enter the Password for your DDNS account.
6. Enter the Domain Name you received from dynamic DNS service provider here.
7. If your service provider is NO-IP, select WAN IP binding to ensure that the domain name
is bound to the WAN IP of this router.
8. Click LOGIN AND SAVE.
4. 2. 9. Static Routing
Static Routing is a form of routing that is configured manually by a network administrator or
a user by adding entries into a routing table. The manually-configured routing information
guides the router in forwarding data packets to the specific destination.
I want to:
Visit multiple networks and servers at the same time.
For example, in a small office, my PC can surf the internet through Router A, but I also want
to visit my company’s network. Now I have a switch and Router B. I connect the devices
as shown in the following figure so that the physical connection between my PC and my
company’s server is established. To surf the internet and visit my company’s network at the
same time, I need to configure the static routing.

Mercusys MR80X Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
Working Modes	Router Mode, Access Point Mode
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Maximum Speed	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Ports	1 x Gigabit WAN port, 3 x Gigabit LAN ports
Antenna	4 external antennas
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WiFi Speeds	2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Security	WPA3, WPA2, WPA
DHCP	Server, DHCP Client List
Guest Network	Yes
VPN Server	OpenVPN, PPTP
Dimensions	208 × 171 × 41 mm
