Mercusys MR80X User Manual

31
Chapter 4 Congure the Router in Wireless Router Mode
RouterXbox
LAN
WAN
LAN WAN POWER RESET/WPS

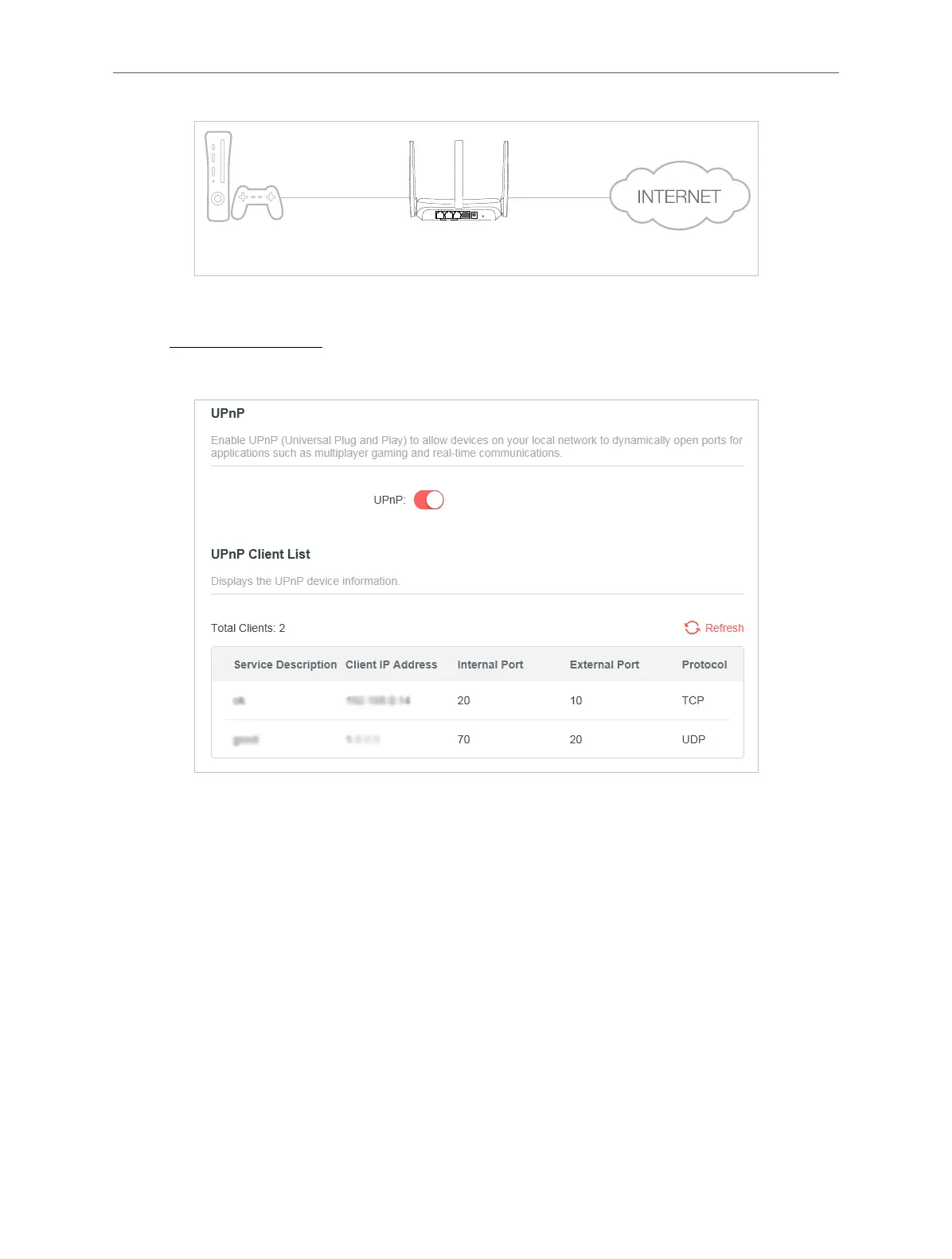

If necessary, you can follow the steps to change the status of UPnP.
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > NAT Forwarding > UPnP and toggle on or off according to your needs.
4. 4. 4. DMZ
When a PC is set to be a DMZ (Demilitarized Zone) host in the local network, it is totally
exposed to the internet, which can realize the unlimited bidirectional communication
between internal hosts and external hosts. The DMZ host becomes a virtual server with
all ports opened. When you are not clear about which ports to open in some special
applications, such as IP camera and database software, you can set the PC to be a DMZ
host.
Note:
DMZ is more applicable in the situation that users are not clear about which ports to open. When it is enabled, the DMZ host is
totally exposed to the internet, which may bring some potential safety hazards. If DMZ is not in use, please disable it in time.
I want to:
Make the home PC join the internet online game without port restriction.
For example, due to some port restriction, when playing the online games, you can log in

Mercusys MR80X Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
Working Modes	Router Mode, Access Point Mode
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Maximum Speed	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Ports	1 x Gigabit WAN port, 3 x Gigabit LAN ports
Antenna	4 external antennas
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WiFi Speeds	2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Security	WPA3, WPA2, WPA
DHCP	Server, DHCP Client List
Guest Network	Yes
VPN Server	OpenVPN, PPTP
Dimensions	208 × 171 × 41 mm
