Mercusys MR80X User Manual

65
Chapter 5
Congure the Router in Access Point Mode

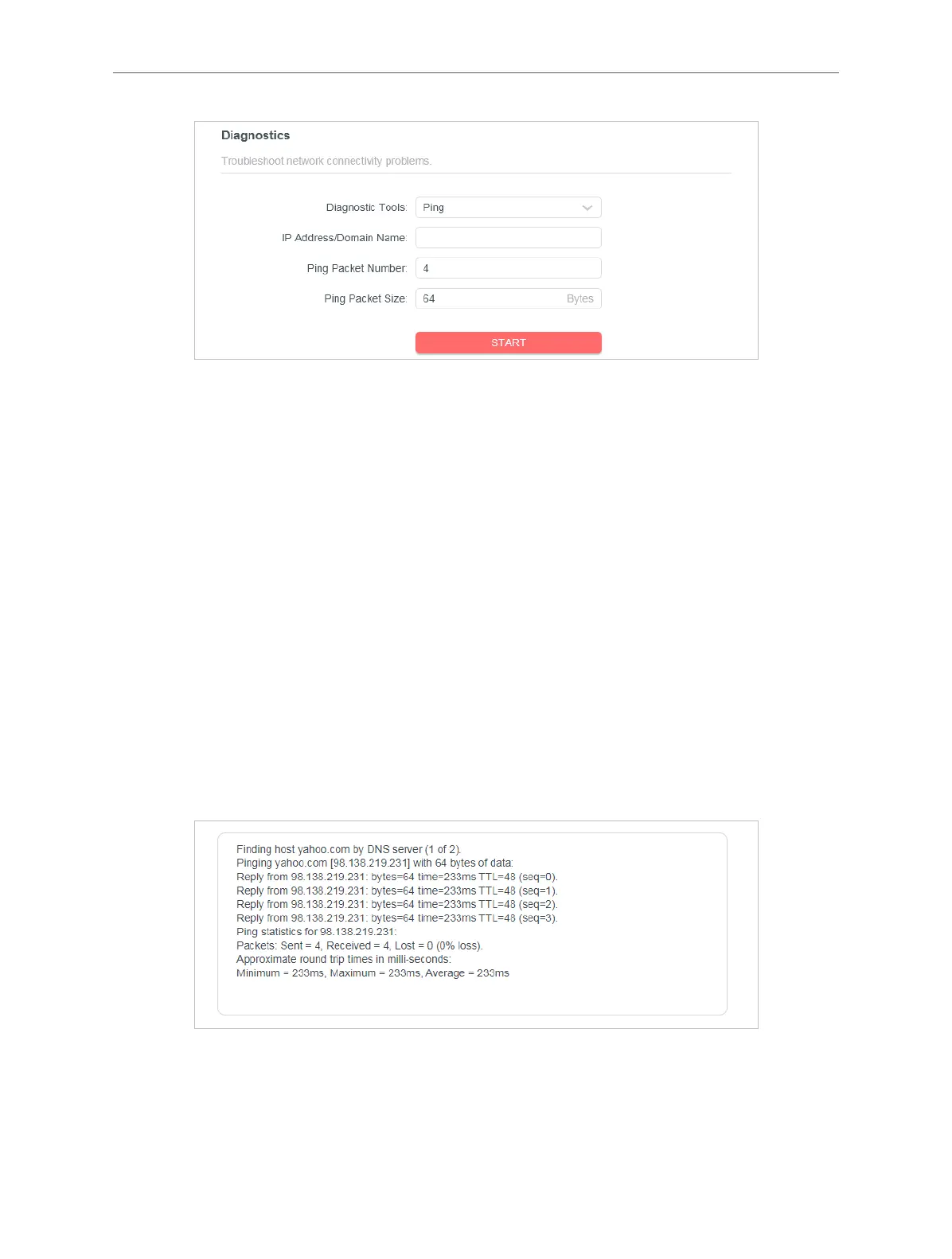

3. Enter the information:
1 ) Choose Ping or Tracert as the diagnostic tool to test the connectivity.
• Ping is used to test the connectivity between the router and the tested host, and
measure the round-trip time.
• Tracert is used to display the route (path) your router has passed to reach the
tested host, and measure transit delays of packets across an Internet Protocol
network.
2 ) Enter the IP Address or Domain Name of the tested host.
3 ) Modify the Ping Count number and the Ping Packet Size. It’s recommended to
keep the default value.
4 ) If you have chosen Tracert, you can modify the Traceroute Max TTL. It’s
recommended to keep the default value.
4. Click START to begin the diagnostics.
The figure below indicates the proper connection between the router and the Yahoo server
(www.Yahoo.com) tested through Ping.
The figure below indicates the proper connection between the router and the Yahoo server
(www.Yahoo.com) tested through Tracert.

Mercusys MR80X Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
Beamforming	Yes
Working Modes	Router Mode, Access Point Mode
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Maximum Speed	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Ports	1 x Gigabit WAN port, 3 x Gigabit LAN ports
Antenna	4 external antennas
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WiFi Speeds	2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Security	WPA3, WPA2, WPA
DHCP	Server, DHCP Client List
Guest Network	Yes
VPN Server	OpenVPN, PPTP
Dimensions	208 × 171 × 41 mm
