Meridian DSP6000 User Manual

20
SETTING UP THE DSP
LOUDSPEAKERS
Connecting to other equipment

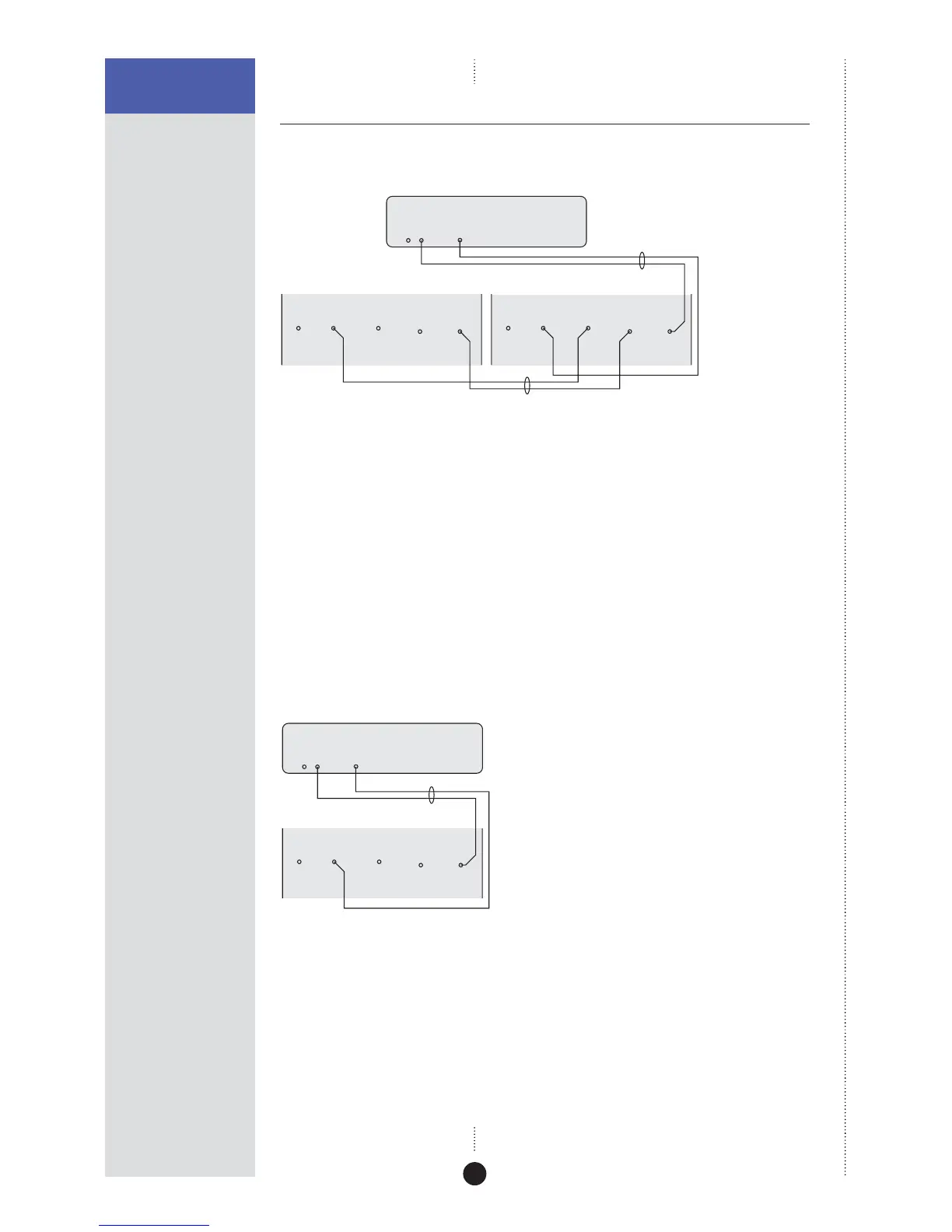

To connect two DSP loudspeakers in a Meridian system
DIGITAL
OUTPUT
COMMS
S5 lead
DSP loudspeaker – Main R DSP loudspeaker – Main L
562V•2 Multimedia Controller
M5 lead
COMMS
OUTPUT INPUT
DIGITAL INPUT
21
DIGITAL
OUTPUT
COMMS
OUTPUT INPUT
DIGITAL INPUT
21
DIGITAL
OUTPUT
You can connect two DSP loudspeakers directly to a Meridian DVD player,
Meridian 568 Digital Surround Processor, Meridian 561 Digital Surround
Controller, or Meridian 562V.2 Multimedia Controller.
• Connect one of the COMMS sockets on the Meridian source or control
unit, and the MAIN digital output, to one of the speakers using the M5
lead supplied.
• Link the two DSP loudspeakers together using the S5 lead supplied, as
shown in the illustration.
To use a DSP loudspeaker as a centre speaker
CENTRE
DIGITAL
OUTPUT
COMMS
DSP loudspeaker – Centre
Meridian Surround Processor
M5 lead
COMMS
OUTPUT INPUT
DIGITAL INPUT
21
DIGITAL
OUTPUT
You can use a single DSP loudspeaker as a centre speaker in a Meridian
surround system.
• Connect the speaker to the CENTRE digital output using an M5 lead, as
shown in the illustration.
