ASSEMBLY STEP 4
For Sliding and Swinging Gates Only
Install the Chain/Cable
1. Pull the cable loop from
the carton and fasten it to
the trolley with a master
link from the hardware
bag (Figure 1).
• Push pins of master link
bar through cable loop
and hole in front end of
trolley.
• Push master link cap over pins and past
pin notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked
in place.
2. To prevent the trolley from jamming against the
opener during operation, position trolley 5 to 15 cm
from the stop hole as shown. Then dispense the
chain around the opener sprocket (Figure 1). Make
sure the sprocket teeth engage the chain.
• Proceed around to the pulley bracket and forward
to the threaded trolley shaft.
3. Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Check to make
sure the chain is not twisted.
To avoid possible SERIOUS INJURY to fingers from
moving opener:
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION
WARNING
WARNING
Leave Chain
& Cable
Inside Carton to
Prevent Kinking
Keep Chain
Taut When Dispensing
Sprocket
Motor Unit
Mounting
Plate
Install Chain
and Cable
in this Direction
C
able Loop
Master
Link Pi
n
Master Link
Clip-On Spri
ng
Master Link
C
lip-On Spring
Flat End
of Trolley
Tro
lle
y
Pin No
tch
Flat End of
Threaded Shaft
Master
Link Cap
C
able
T-rail
Master
Link Cap
Ch
ain
Chain Link
Trolley Stop
(H
ex Bolt)
mc
51-5
Pi
n
No
tch
Master
Link
Pin

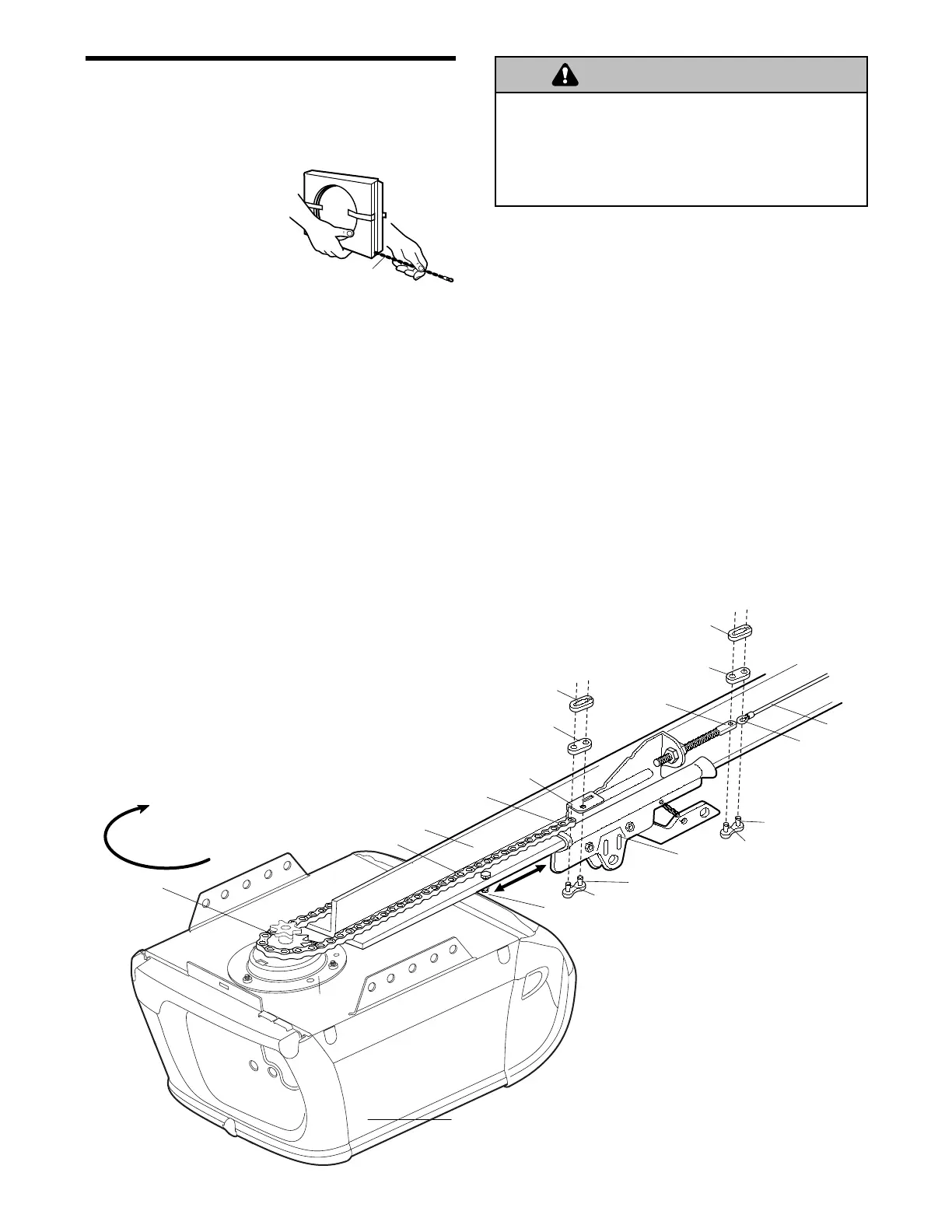

Figure 1
