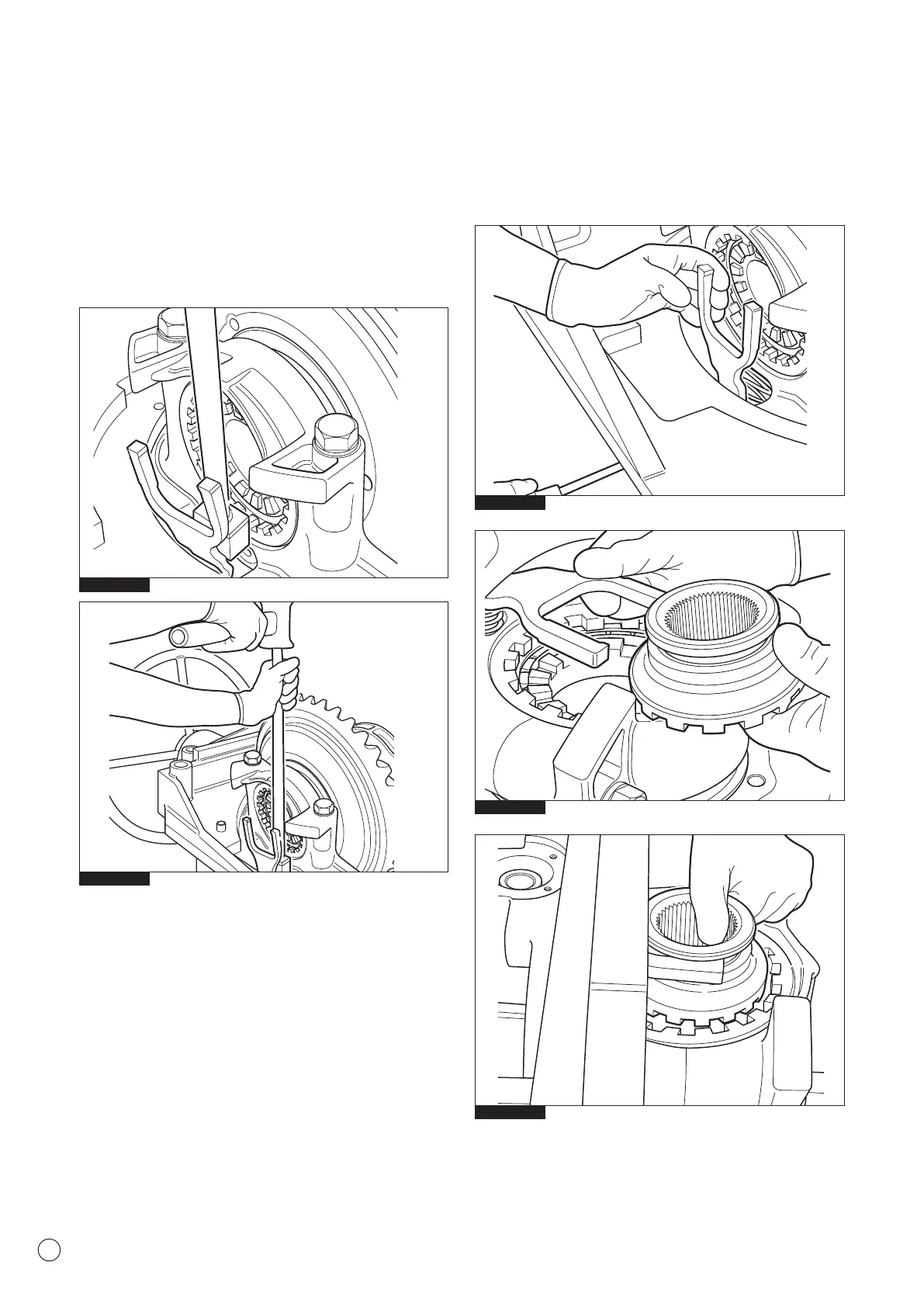

5. Fit the shift shaft spring into the carrier case (Fig.2.66)
tapping the spring out of the assembly tool with a hammer
(Fig.2.67).
6. With a Meritor suitable service tool MST4709 - CT49, or a
suitable screwdriver locate the spring correctly between the
two shift shaft bores into the carrier casting (Fig.2.68).
7. Whilst holding and tilting the shift fork, place the shift collar in
position in the fork (Fig. 2.69). Ensure there is sufficient room
between fork and cap (Fig. 2.70)
Fig. 2.66
Fig. 2.67
36 Meritor Differential Carrier 18X
2 Maintenance
Fig. 2.68
Fig. 2.69
Fig. 2.70
